What This Product Does

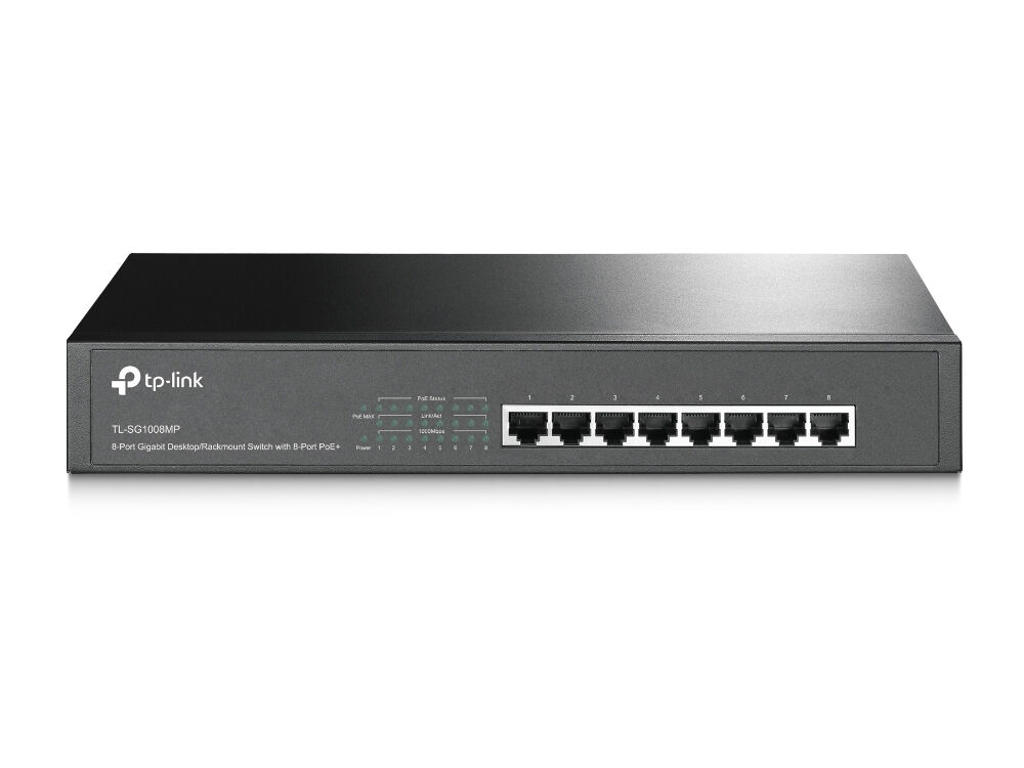

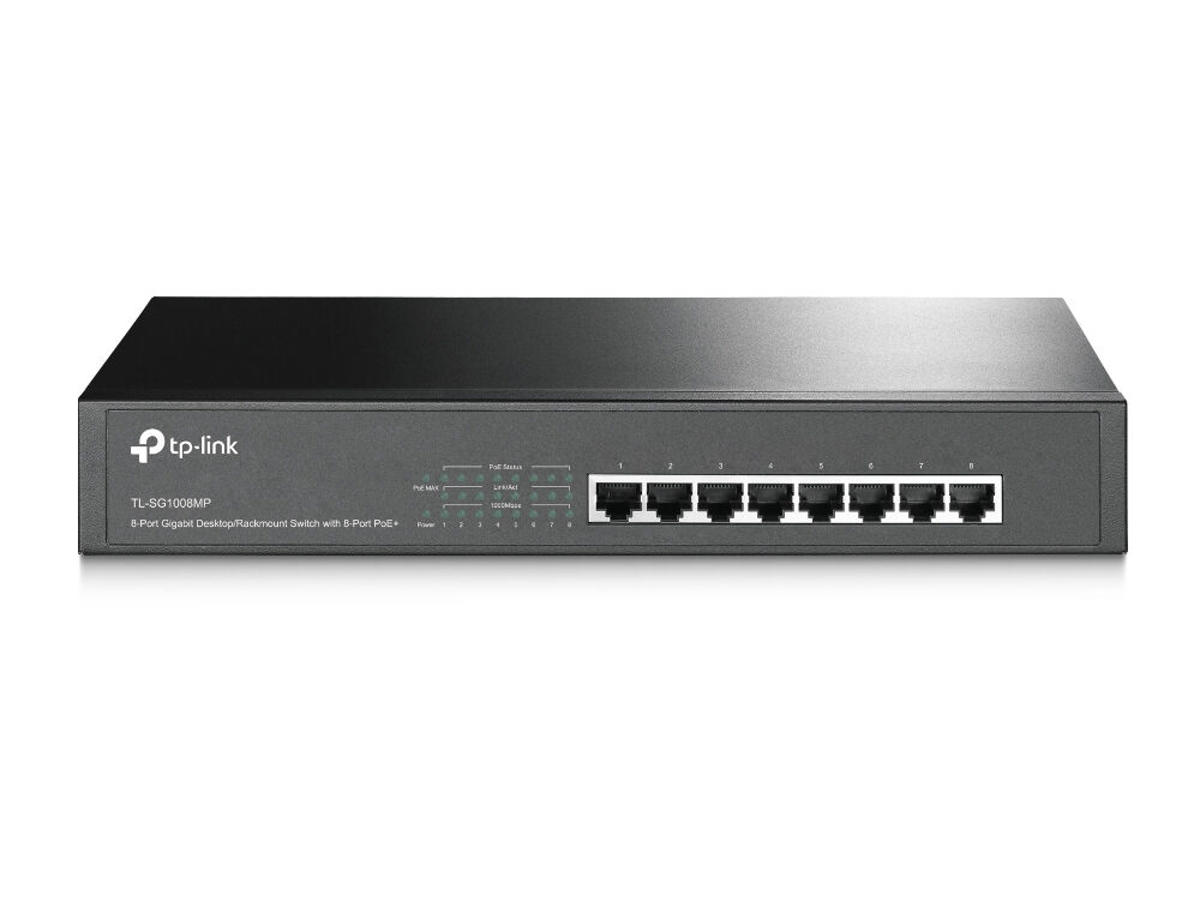

The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
| Administrationsfunktioner | |
| Switch-type | Ikke administreret |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Antal installerede SFP moduler | 0 |
| Antal installerede SFP+ moduler | 0 |
| Gigabit Ethernet (kobber) porte, antal | 8 |
| Netværk | |
| Netværksstandarder | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G understøttelse | Ingen |
| Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Understøttede kabeltyper | Cat3, Cat4, Cat5, Cat5e |
| Fuld duplex | Ja |
| Halv dupleks | Ja |
| Flowkontrol support | Ja |
| Auto MDI/MDI-X | Ja |
| Auto-forhandling | Ja |
| MAC-adresse auto-indlæring understøttet | Ja |
| MAC-adresse auto-forældelse understøttet | Ja |
| Dataoverførsel | |
| MAC adresselabel | 4000 entries |
| Switch kapacitet | 16 Gbit/sek. |
| Hastighed for videresendelse | 11,904 Mpps |
| Opbevar-og-frem | Ja |
| Jumbo Frames support | Ja |
| Jumbo rammer | 16000 |
| Pakke bufferlager | 1,5 MB |
| Design | |
| Stativ-montering | Ja |
| Stabelbar | Ingen |
| Formfaktor | 1U |
| Produktfarve | Sort |
| Husmateriale | Metal |
| LED-indikatorer | Ja |
| Antal blæsere | 1 blæser(e) |
| Præstation | |
| Maksimal kabellængde | 100 m |
| Strømstyring | |
| Strømkilde | AC/PoE |
| Strømforsyning inkluderet | Ja |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50/60 Hz |
| Strømforbrug (maks.) | 173,65 W |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ja |
| Power over Ethernet plus (PoE+) porte, antal | 8 |
| Total Power over Ethernet (PoE) | 153 W |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
| Varmeafgivelse | 592,15 BUT/t |
| Vægt & størrelser | |
| Bredde | 294 mm |
| Dybde | 180 mm |
| Højde | 44 mm |
| Emballage indhold | |
| Kabler inkluderet | Vekselstrøm |
| Brugervejledning | Ja |
| Rack monteringskit | Ja |
| Emballeringsdata | |
| Pakketype | Kasse |
| Pakkebredde | 250 mm |
| Pakkedybde | 400 mm |
| Pakkehøjde | 80 mm |
| Pakkevægt | 2,11 kg |
| Godkendelser | |
| Compliance-certifikater | CE, Federal Communications Commission (FCC), RoHS |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
| Bæredygtighed | |
| Overholdelse af bæredygtighed | Ja |
