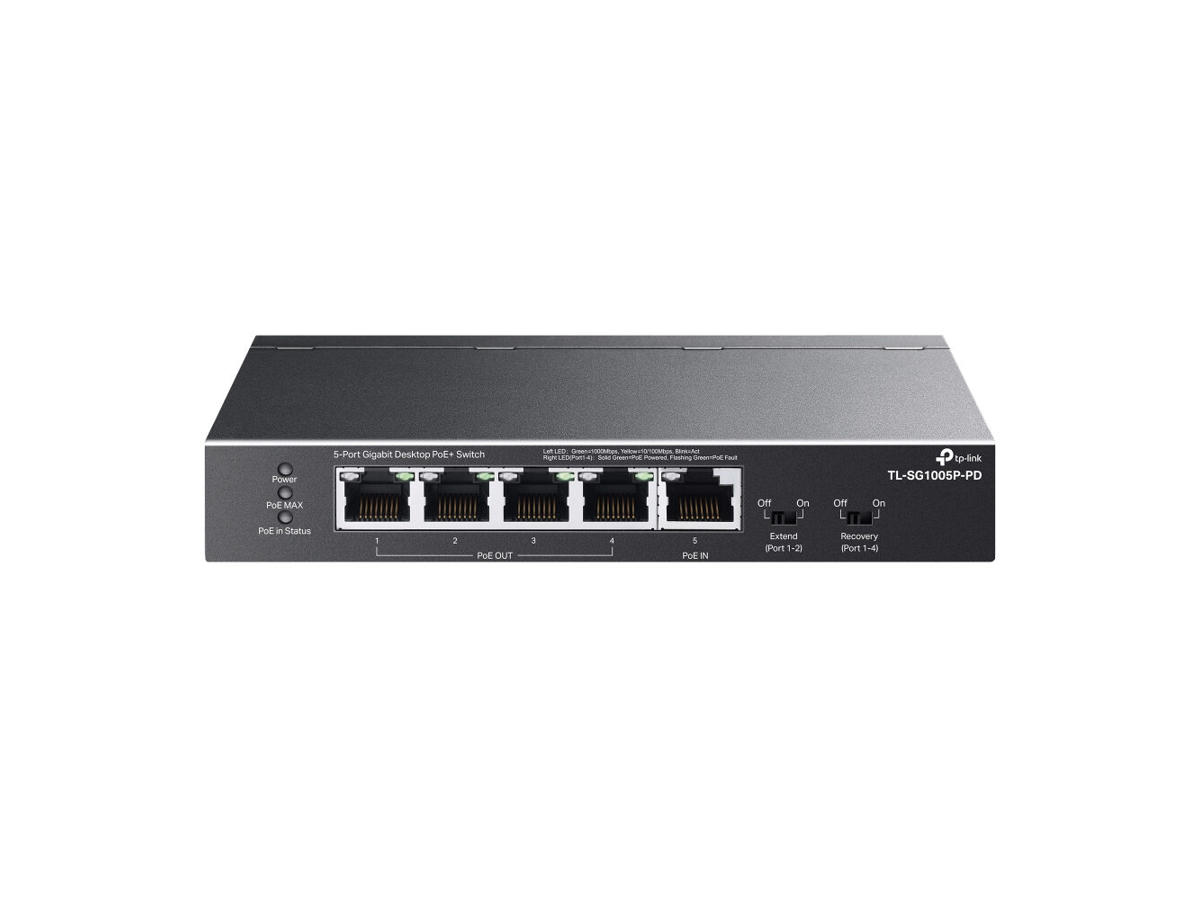

Varenummer: TL-SG1005P-PD
Mere information
-
- Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
- Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
- Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play: No configuration and installation required.
- Power Supply: The product only supports PoE power supply, not AC or DC power supply.
Ideal for Mains-Free Environments
Powered by a PoE++ switch or PoE++ injector, no additional DC adapter is required.
- Scenarios without mains power
- Powered by PoE++/PoE+/PoE
Power over Ethernet, Flexible Network Deployment
Supports up to 66W/47W/21W/9W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.* The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.
- Access Point
- IP Phone
- IP Camera
- 4K Video
- Network Video Recorder
- Computer
Instantaneous Multi-mode Toggles, Ideal for IP Surveillance
- Extend Mode. Up to 250m Transmissions. With extend mode, the PoE transmission distance reaches up to 250 m** —perfect for IP Camera deployment in large areas.
- Recovery Mode. PoE Auto Recovery. Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts. -
Administrationsfunktioner Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Netværk Netværksstandarder IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ja Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Understøttede kabeltyper Cat3, Cat4, Cat5, Cat5e, Cat6 Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja MAC-adresse auto-indlæring understøttet Ja MAC-adresse auto-forældelse understøttet Ja Dataoverførsel MAC adresselabel 2000 entries Switch kapacitet 10 Gbit/sek. Hastighed for videresendelse 7,44 Mpps Opbevar-og-frem Ja Sikkerhed IGMP snooping Ja Design Produktfarve Sort LED-indikatorer Ja Kan monteres på væggen Ja Antal blæsere 0 blæser(e) Præstation Ventilatorfri Ja Strømstyring Strømkilde PoE Strømforsyning inkluderet Ingen Strømforbrug (maks.) 68,59 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) porte, antal 5 Total Power over Ethernet (PoE) 66 W Driftsbetingelser Driftstemperatur (T-T) -30 - 70 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 233,206 BUT/t Vægt & størrelser Bredde 158 mm Dybde 101 mm Højde 25 mm Emballage indhold Brugervejledning Ja Emballeringsdata Pakketype Kasse Godkendelser Certificering CE, FCC, RoHS
