Varenummer: TL-SF1024D V3
Mere information
-
What This Product Does

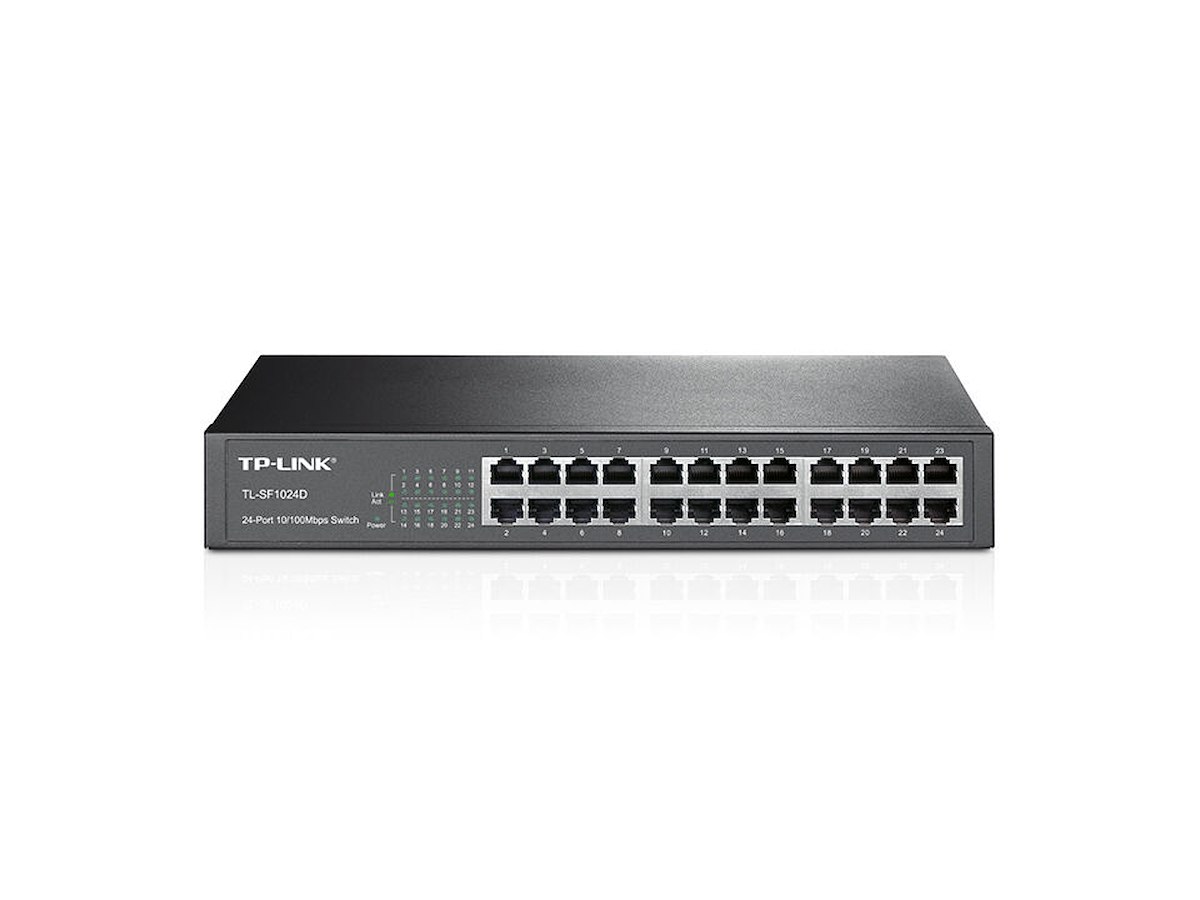

The TL-SF1024D Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
The metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 24 user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.
TP-LINK Green Technology
This new generation The TL-SF1024D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 24 Basis omskiftning RJ-45 Ethernet porttype Fast Ethernet (10/100) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Netværk Netværksstandarder IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX Fuld duplex Ja Halv dupleks Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja Dataoverførsel MAC adresselabel 8000 entries Switch kapacitet 4,8 Gbit/sek. Understøttede dataoverførselshastigheder 10/100 Mbps Hastighed for videresendelse 3,57 Mpps Opbevar-og-frem Ja Maksimal dataoverførselshastighed 0,1 Gbit/sek. Pakke bufferlager 2 MB Sikkerhed Filtrering af MAC-adresser Ja Protokoller Understøttede netværksprotokoller CSMA/CD, TCP/IP Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort LED-indikatorer Link, Strøm Strømstyring Strømkilde Vekselstrøm Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (maks.) 3,19 W Andre funktioner Dimensioner (BxDxH) 294 x 180 x 44 mm Forbindelsesteknologi Ledningsført Effektkrav 100 - 240VAC, 50/60Hz Wi-Fi Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 10,88 BUT/t Vægt & størrelser Bredde 294 mm Dybde 180 mm Højde 44 mm Emballage indhold Hurtig start guide Ja Emballeringsdata Pakkebredde 400 mm Pakkedybde 250 mm Pakkehøjde 80 mm Pakkevægt 2 kg Godkendelser Certificering FCC, CE Logistik data Harmoniseret systemkode (HS) 85176990
