What This Product Does

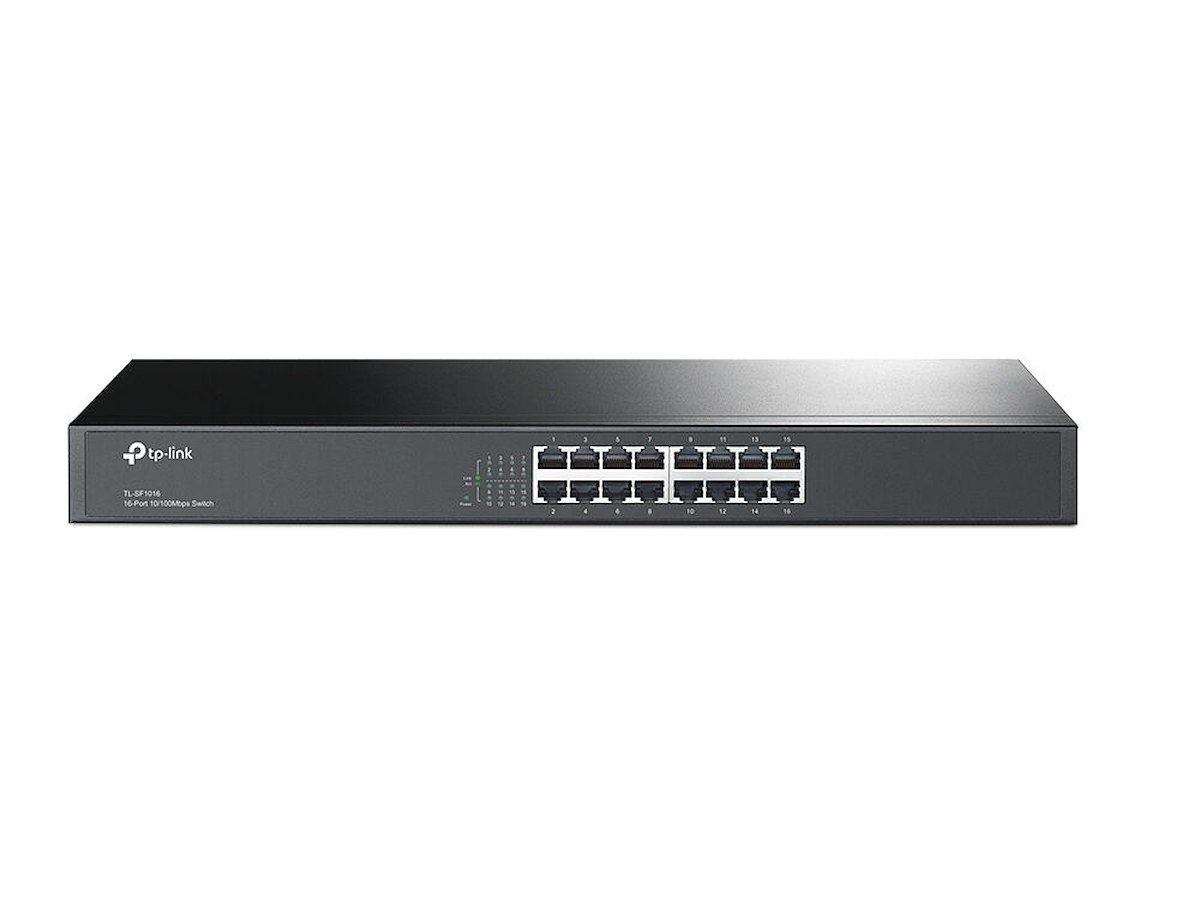

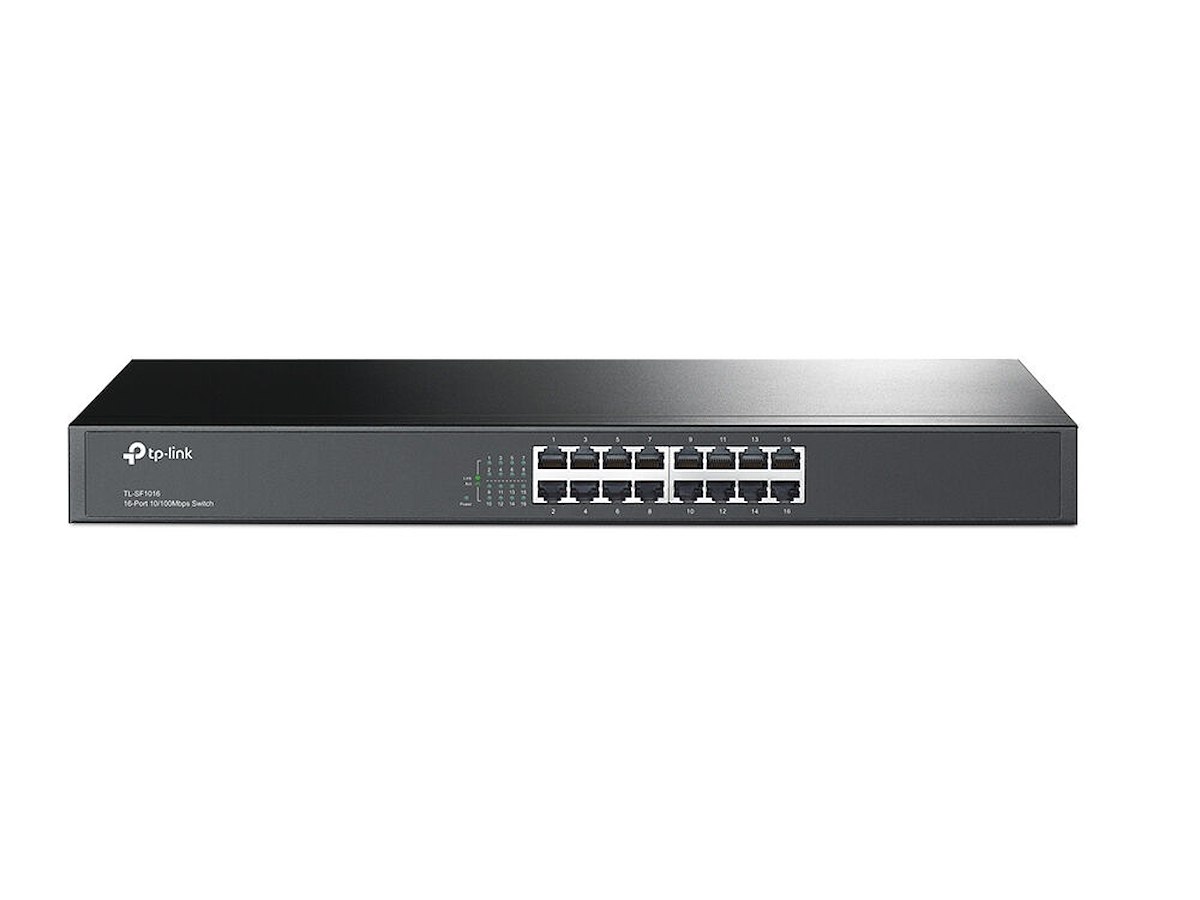

The 16-Port Fast Ethernet Switch TL-SF1016 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SF1016 provides 16 10/100Mbps ports. The TL-SF1016 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.
Ease of Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
Superior Performance
The rack-mount size metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 16 user environment. Featuring non-blocking switching architecture, TL-SF1016 forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 16 |
Basis omskiftning RJ-45 Ethernet porttype | Fast Ethernet (10/100) |
Netværk | |
Netværksstandarder | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10BASE-T, 1000BASE-TX |
Fuld duplex | Ja |
Halv dupleks | Ja |
Flowkontrol support | Ja |
Auto-forhandling | Ja |
Dataoverførsel | |
MAC adresselabel | 8000 entries |
Switch kapacitet | 3,2 Gbit/sek. |
Opbevar-og-frem | Ja |
Jumbo Frames support | Ja |
Jumbo rammer | 2000 |
Pakke bufferlager | 2 MB |
Design | |
Stativ-montering | Ja |
Stabelbar | Ingen |
Formfaktor | 1U |
Produktfarve | Sort |
LED-indikatorer | Ja |
Certificering | FCC, CE, RoHS |
Strømstyring | |
Strømkilde | Vekselstrøm |
Strømforsyning inkluderet | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Varmeafgivelse | 7,03 BUT/t |
Vægt & størrelser | |
Bredde | 440 mm |
Dybde | 180 mm |
Højde | 44 mm |
Emballeringsdata | |
Pakkebredde | 528 mm |
Pakkedybde | 250 mm |
Pakkehøjde | 80 mm |
Pakkevægt | 2,28 kg |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
