What This Product Does

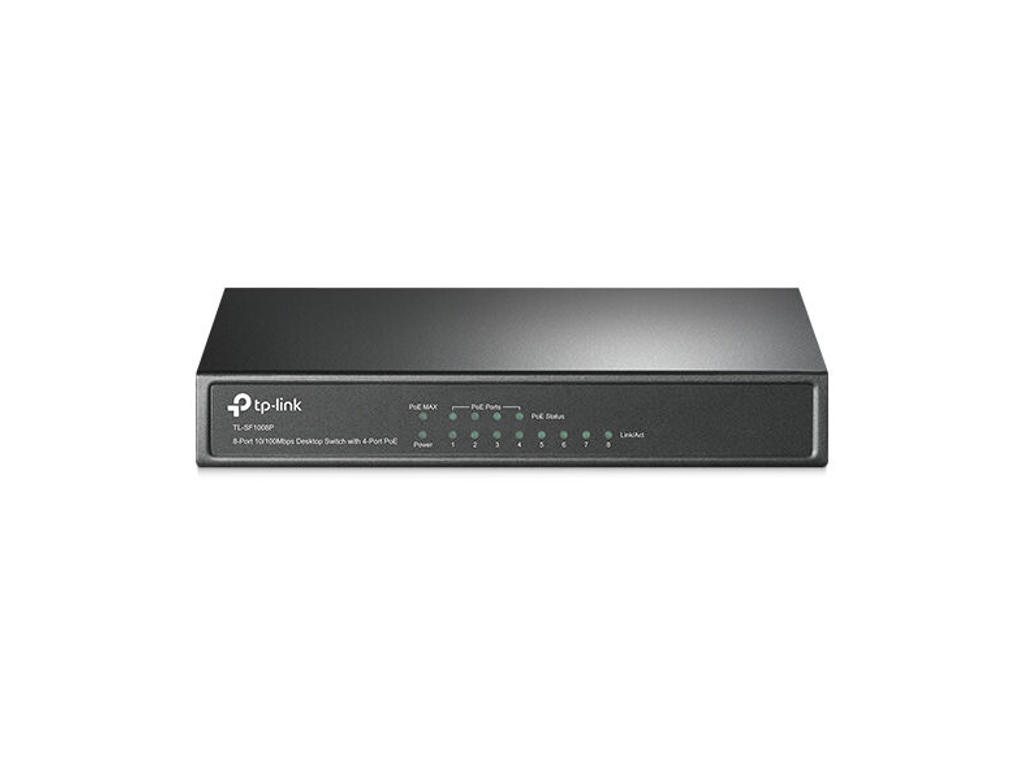

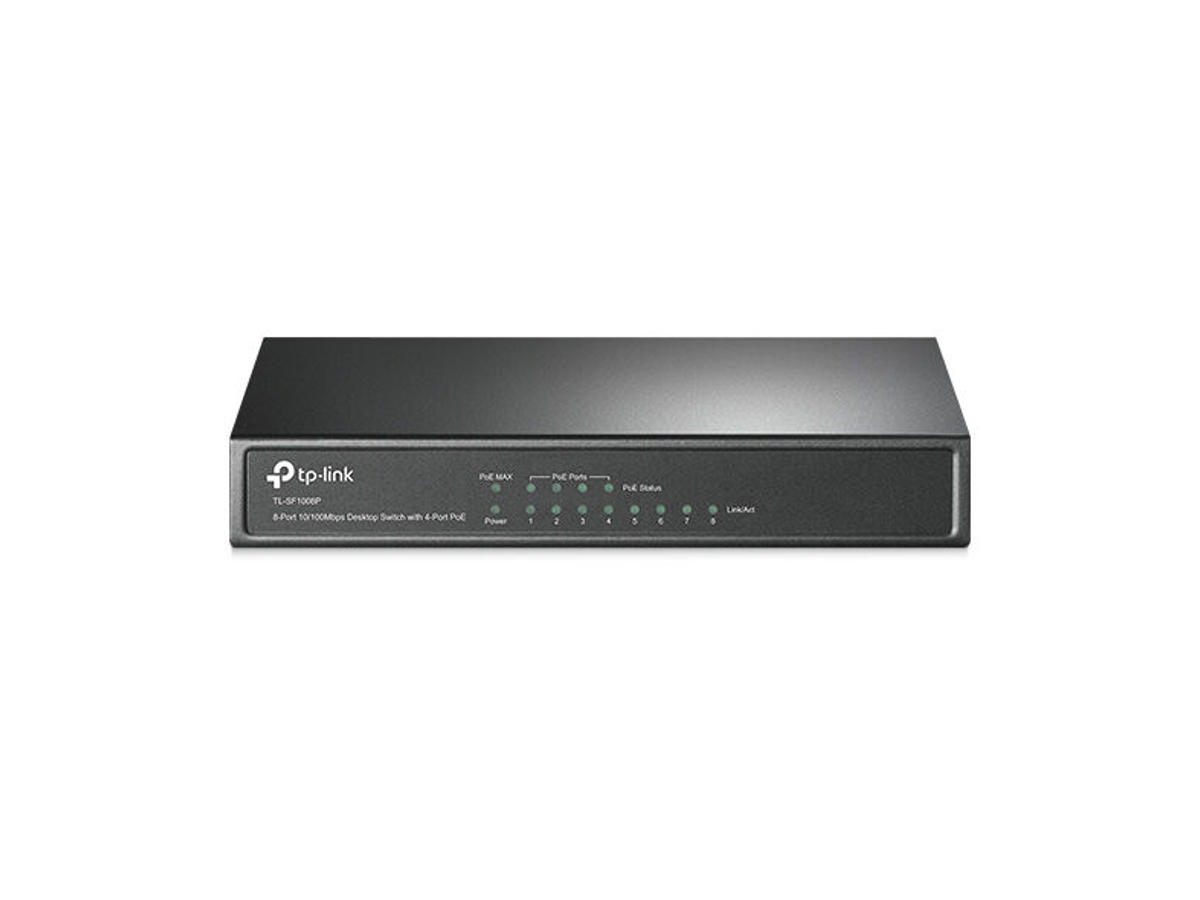

TL-SF1008P is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power over Ethernet
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
-Overload Arrangement
TL-SF1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 57W, a priority will be arranged among the PoE ports, then the system will cut o‑ the power of the lowest-priority port.
-Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 57W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.
Easy To Use
TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK’s TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network. -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Fast Ethernet (10/100) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Fast Ethernet (kobber) porte, antal 8 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10GBASE-T, 100BASE-TX Understøttede kabeltyper Cat3, Cat4, Cat5, Cat5e Fuld duplex Ja Halv dupleks Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja MAC-adresse auto-indlæring understøttet Ja MAC-adresse auto-forældelse understøttet Ja Dataoverførsel MAC adresselabel 2000 entries Switch kapacitet 1,6 Gbit/sek. Hastighed for videresendelse 1,1904 Mpps Opbevar-og-frem Ja Protokoller IPv4 & IPv6 funktioner IPv6 portal Design Stativ-montering Ingen Stabelbar Ingen Produktfarve Sort Husmateriale Metal LED-indikatorer Ja Kan monteres på væggen Ja Præstation Ventilatorfri Ja Strømstyring Strømkilde DC/PoE Strømforsyning inkluderet Ingen Vekselstrømsindgangsspænding 220 V Vekselstrømsindgangsfrekvens 50 Hz DC indgangsspænding 53.5 V Indgangsstrøm 1.31 A Strømforbrug (maks.) 66 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 8 Total Power over Ethernet (PoE) 57 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 248,93 BUT/t Vægt & størrelser Bredde 171 mm Dybde 98 mm Højde 27 mm Emballage indhold Brugervejledning Ja Emballeringsdata AC-adapter inkluderet Ja Pakketype Kasse Pakkebredde 223 mm Pakkedybde 280 mm Pakkehøjde 68 mm Pakkevægt 970 g Godkendelser Compliance-certifikater CE, Federal Communications Commission (FCC), RoHS Logistik data Harmoniseret systemkode (HS) 85176990 Bæredygtighed Overholdelse af bæredygtighed Ja
