What This Product Does

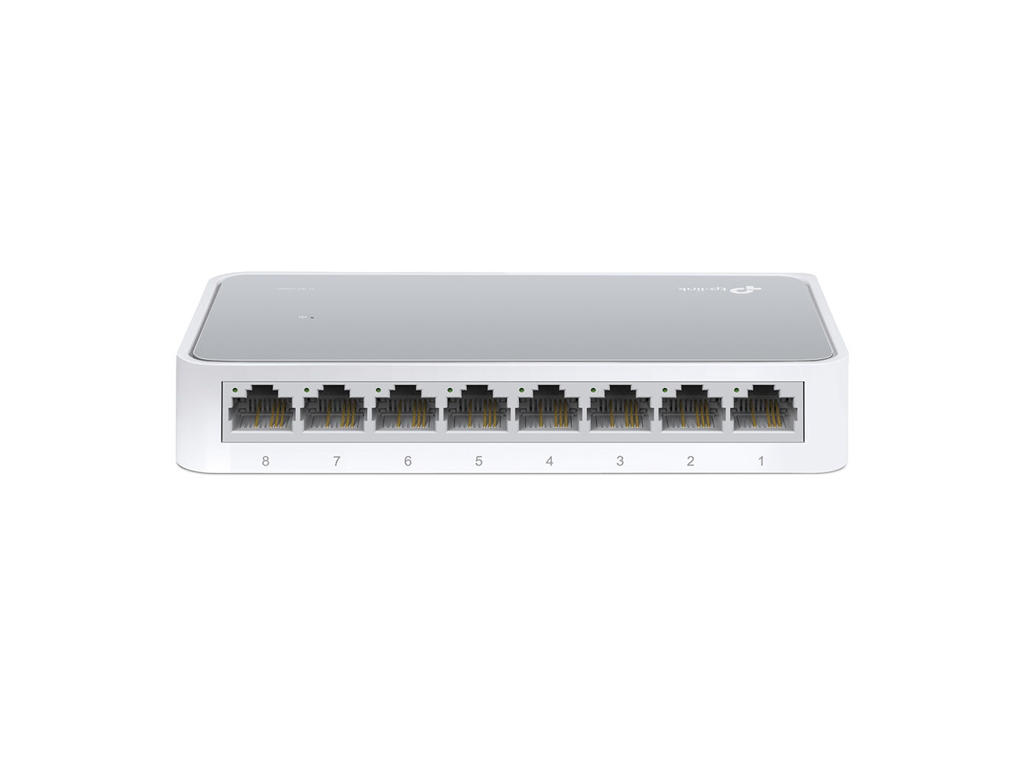

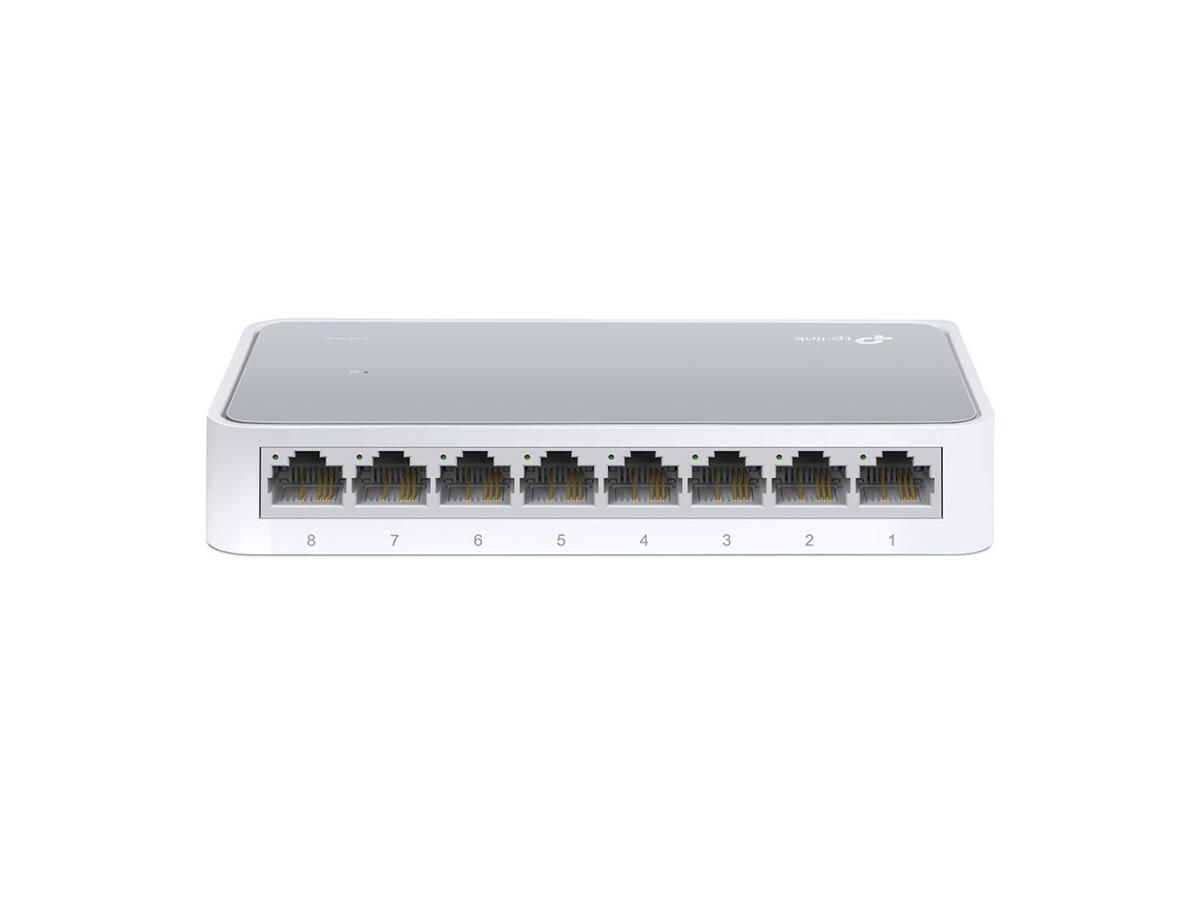

The TL-SF1008D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users.. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1008D can save up to 60%* of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
TL-SF1008D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1008D forwards and filters packets at full wire-speed for maximum throughput. With 10K Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1008D work reliably.
TP-LINK Green Technology
This new generation TL-SF1008D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance. -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Fast Ethernet (10/100) Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 100BASE-TX, 10BASE-T Fuld duplex Ja Halv dupleks Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja Dataoverførsel MAC adresselabel 1000 entries Switch kapacitet 1,6 Gbit/sek. Understøttede dataoverførselshastigheder 10/100 Mbps Opbevar-og-frem Ja Maksimal dataoverførselshastighed 0,1 Gbit/sek. Pakke bufferlager 2 MB Protokoller Understøttede netværksprotokoller CSMA/CD, TCP/IP Design Produktfarve Hvid LED-indikatorer Ja Strømstyring Strømkilde DC Strømforsyning inkluderet Ja Indgangsstrøm 0.6 A Indgangsspænding 5 V Strømforbrug (maks.) 2,2 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Andre funktioner Dimensioner (BxDxH) 140 x 87 x 27,5 mm Forbindelsesteknologi Ledningsført Forbindelses-LED'er Y Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Vægt & størrelser Bredde 134 mm Dybde 79 mm Højde 23 mm Emballage indhold Hurtig start guide Ja Emballeringsdata Pakketype Kasse Pakkebredde 139 mm Pakkedybde 100 mm Pakkehøjde 85 mm Pakkevægt 240 g Godkendelser Certificering FCC, CE, RoHS Logistik data Harmoniseret systemkode (HS) 85176990
