What This Product Does

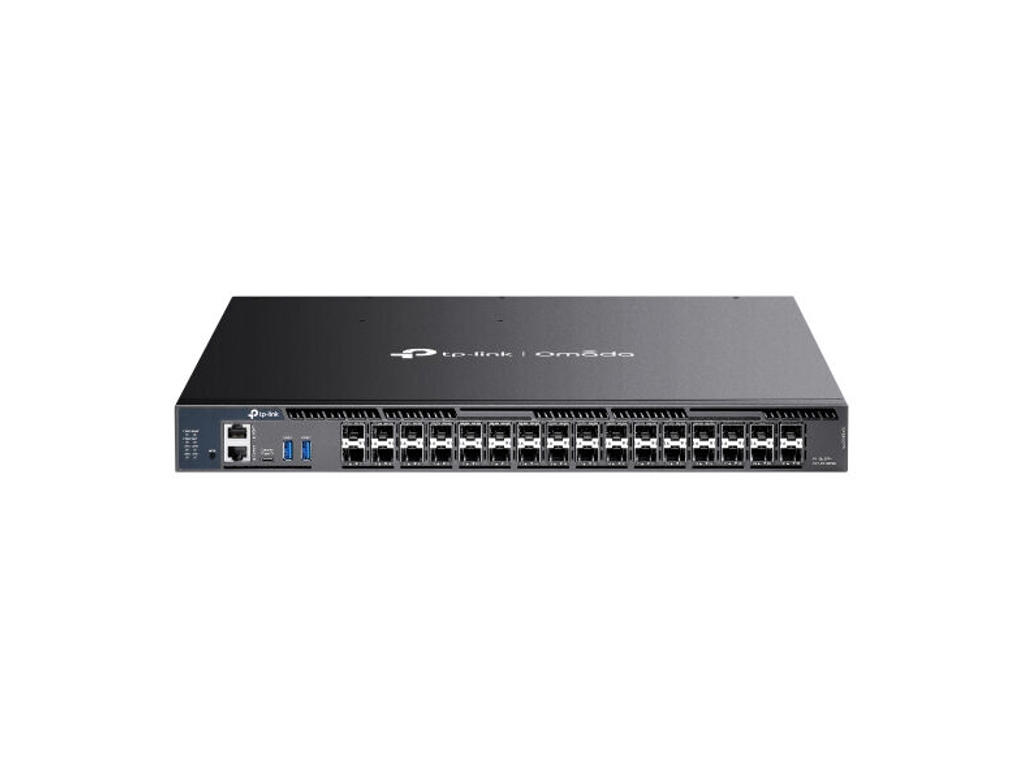

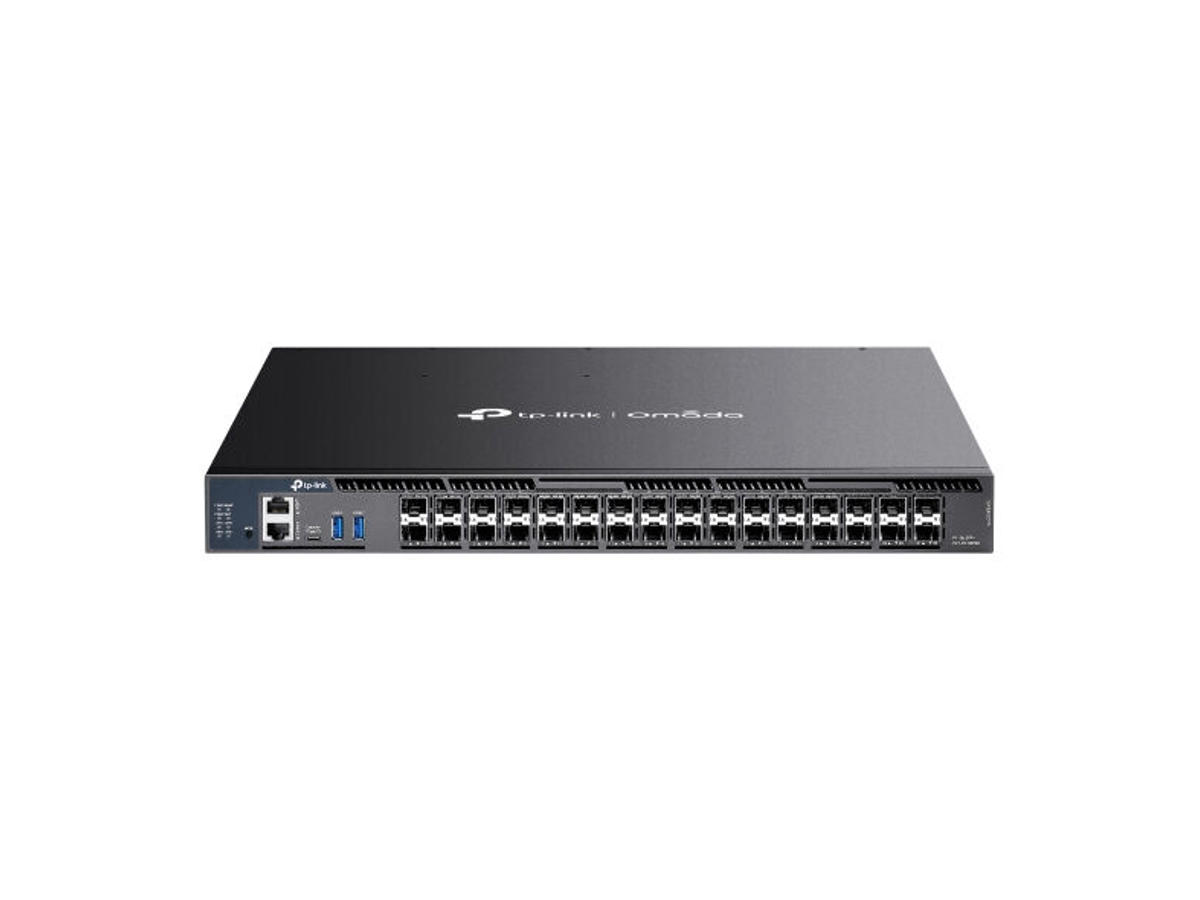

The Omada SX6632YF is a true L3 managed switch with full fiber ports that offers L3 routing, swift 25 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 6× 25 Gbps SFP28 slots, 26× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
High-speed Connectivity and Powerful Stacking
6× 25 Gbps SFP28 slots and 26× 10 Gbps SFP+ slots provide up to 820 Gbps switching capacity per unit. Up to 8 units of physical stacking with up to 6560 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
Highly Available
Internal fixed redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SX6632YF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events. -
Administrationsfunktioner Switch-type Administreret Switch lag L2+/L3 Servicekvalitet support (QoS) Ja Webbaseret administration Ja Cloud-administreret Ja ARP inspektion Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porttype Ingen Antal SFP modulslots 6 Antal SFP + modulslots 26 Antal USB Type-A-porte 2 Antal USB type-C-porte 1 Antal administrationsporte 1 stk Port til konsol RJ-45 Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah 10G understøttelse Ja Port-spejlning Ja IP-routing Ja VLAN understøttelse Ja Vituelle LAN funktioner MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN Dataoverførsel MAC adresselabel 128000 entries Switch kapacitet 820 Gbit/sek. Hastighed for videresendelse 610,1 Mpps Jumbo Frames support Ja Jumbo rammer 9000 Pakke bufferlager 8 MB Sikkerhed DHCP funktioner DHCP Option 82 Adgangskontrolliste (ACL) Ja IGMP snooping Ja Filtrering af MAC-adresser Ja Statisk port, sikkerhed Ja SSH/SSL support Ja Multicast funktioner Multicast-understøttelse Ja Protokoller Administrationsprotokoller SNMPv1/v2c/v3 Design Stativ-montering Ja Stabelbar Ja Produktfarve Sort Antal blæsere 4 blæser(e) Præstation Minimum systemkrav Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux. Strømstyring Strømkilde Vekselstrøm Redundant strømforsyning Ja Antal strømforsyninger 2 Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) -5 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Vægt & størrelser Bredde 440 mm Dybde 380 mm Højde 44 mm Emballage indhold Kabler inkluderet Strøm Hurtig start guide Ja Rack monteringskit Ja
