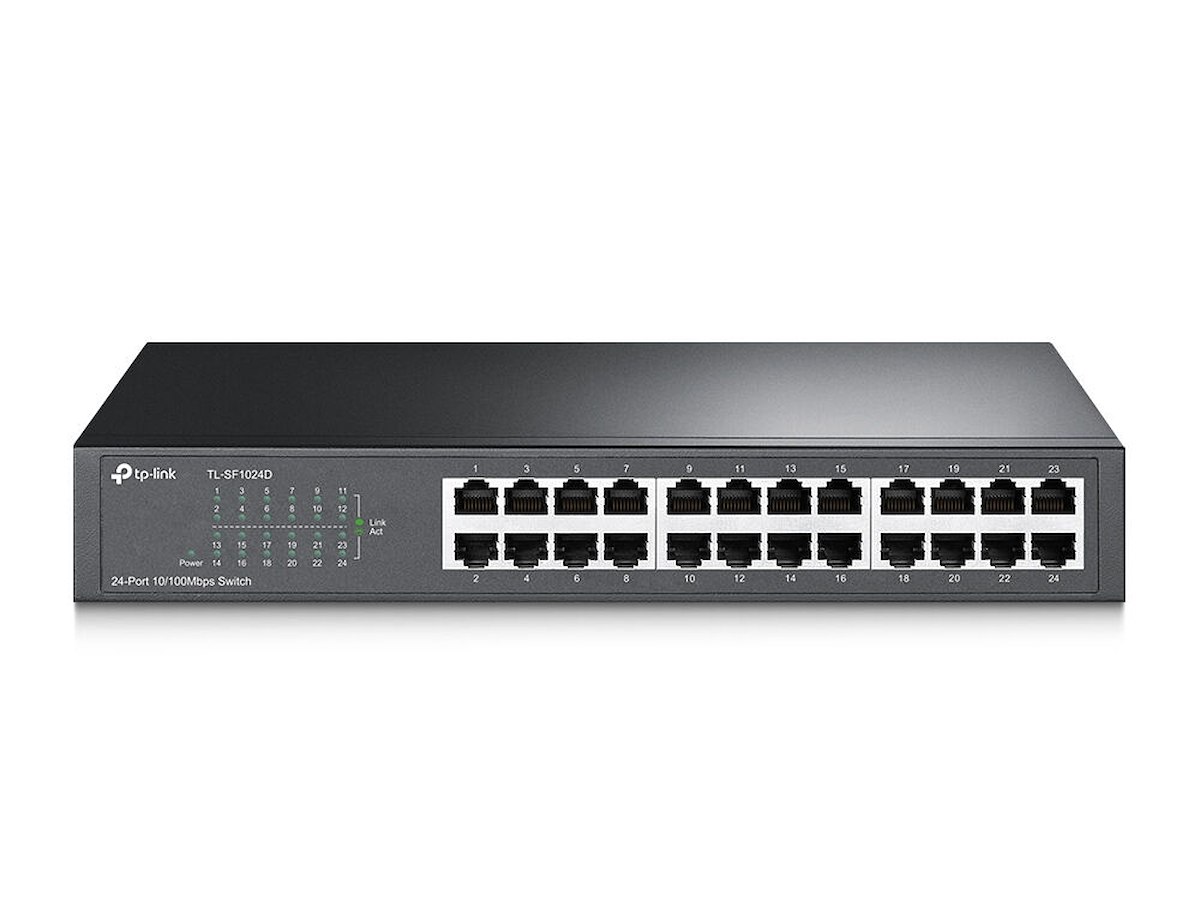

TP-Link TL-SF1024D Ikke administreret Fast Ethernet (10/100) Grå
Varenummer: TL-SF1024D(UN)
.
DKK 512,50 / Stk
DKK 410,00 ekskl. moms
  •
TP-Link TL-SF1024D. Switch-type: Ikke administreret. Basis omskiftning RJ-45 Ethernet porttype: Fast Ethernet (10/100), Basis omskiftning RJ-45 Ethernet porte, antal: 24. MAC adresselabel: 8000 entries, Switch kapacitet: 4,8 Gbit/sek.. Netværksstandarder: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Strømstik: AC-in jack. Stativ-montering


Mere information

  • What This Product Does
    The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save the power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

    What This Product Does
    The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

    TP-LINK Green Technology
    This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

    High Performance
    The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.

    Easy to Use
    The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

    - Innovative energy-efficient technology saves power up to 75%
    - Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
    - Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
    - 4.8 Gbps Switching Capacity
    - Store and forward Switching scheme
    - Auto-MDI/MDIX eliminates the need for crossover cables
    - Supports MAC address auto-learning and auto-aging
    - Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
    - Plug and Play design simplifies installation
    - Fanless design to make sure it works quietly

  • Administrationsfunktioner
    Switch-type Ikke administreret
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 24
    Basis omskiftning RJ-45 Ethernet porttype Fast Ethernet (10/100)
    Antal installerede SFP moduler 0
    Antal installerede SFP+ moduler 0
    Fast Ethernet (kobber) porte, antal 24
    Strømstik AC-in jack
    Netværk
    Netværksstandarder IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
    10G understøttelse Ingen
    Kobber ethernet kabelteknologi 10GBASE-T, 100BASE-TX
    Understøttede kabeltyper Cat3, Cat5e, Cat4, Cat5
    Auto MDI/MDI-X Ja
    Ethernet LAN-datahastigheder 10,100 Mbit/s
    Auto-forhandling Ja
    Dataoverførsel
    MAC adresselabel 8000 entries
    Switch kapacitet 4,8 Gbit/sek.
    Gennnemløb 3,57 Mpps
    Hastighed for videresendelse 3,57 Mpps
    Opbevar-og-frem Ja
    Pakke bufferlager 2 MB
    Protokoller
    Understøttede netværksprotokoller CSMA/CD, TCP/IP
    Design
    Stativ-montering Ja
    Stabelbar Ingen
    Produktfarve Grå
    Husmateriale Metal
    LED-indikatorer Ja
    Præstation
    Ventilatorfri Ja
    Strømstyring
    Strømkilde Vekselstrøm
    Strømforsyning inkluderet Ja
    Vekselstrømsindgangsspænding 100 - 240 V
    Vekselstrømsindgangsfrekvens 50/60 Hz
    Strømforbrug (typisk) 3,53 W
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ingen
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Opbevaringstemperatur (T-T) -40 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 10 - 90%
    Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
    Varmeafgivelse 10,88 BUT/t
    Vægt & størrelser
    Bredde 294 mm
    Dybde 180 mm
    Højde 44 mm
    Emballage indhold
    Kabler inkluderet Vekselstrøm
    Brugervejledning Ja
    Rack monteringskit Ja
    Emballeringsdata
    Pakketype Kasse
    Pakkebredde 250 mm
    Pakkedybde 400 mm
    Pakkehøjde 80 mm
    Pakkevægt 2 kg
    Godkendelser
    Compliance-certifikater CE, Federal Communications Commission (FCC), RoHS
    Logistik data
    Harmoniseret systemkode (HS) 85176990
    Bæredygtighed
    Overholdelse af bæredygtighed Ja
