What This Product Does

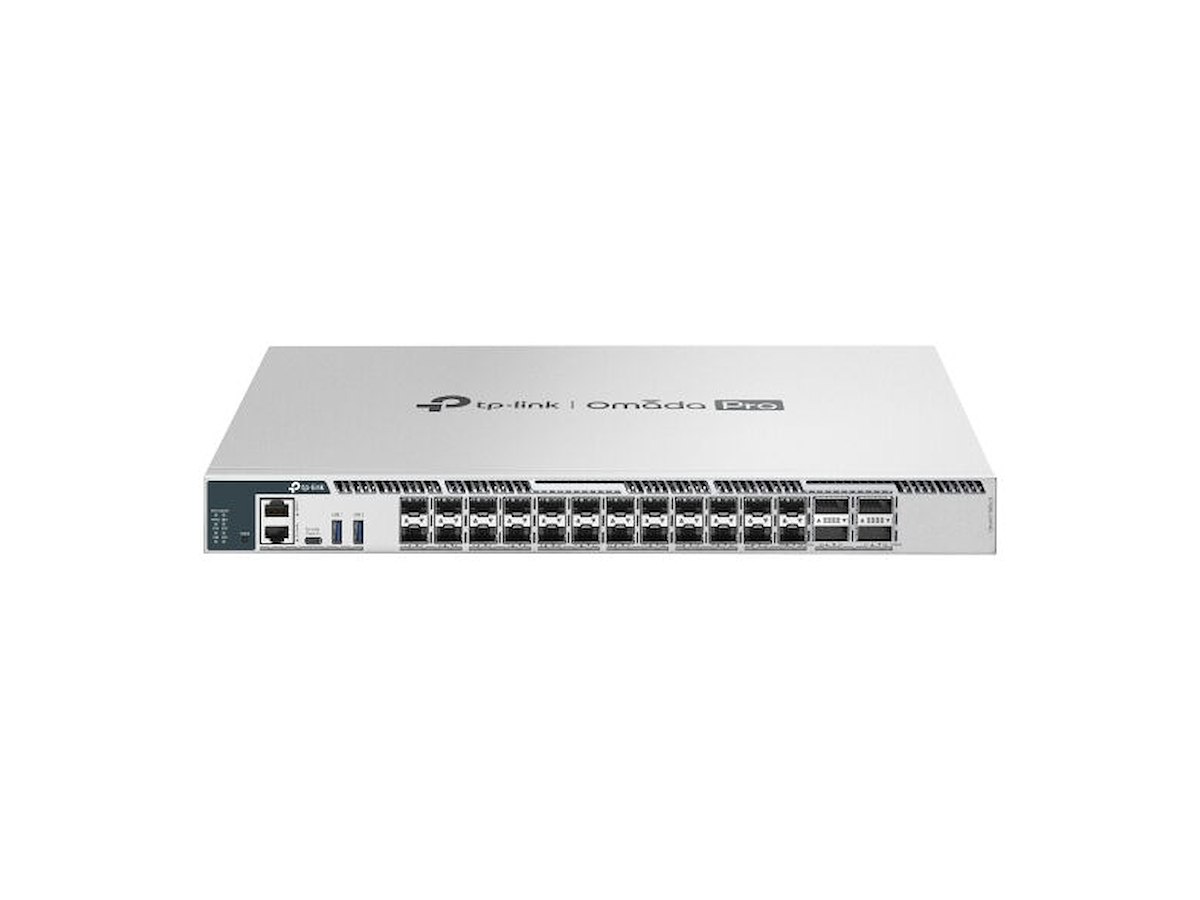

Omada Pro S7500-24Y4C is a high-performance L3 managed switch tailored for the aggregation and core layer, featuring L3 routing, ultra-fast 100 Gbps wired speeds, stacking options, and redundant power supply modules. It includes 24× 25 Gbps SFP28 slots, 4× 100 Gbps QSFP28 slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S7500-24Y4C offers a dependable networking solution for enterprises, campus, and ISPs.
High-speed Connectivity and Powerful Stacking
24× 25 Gbps SFP28 slots and 4× 100 Gbps QSFP28 slots provide up to 2000 Gbps switching capacity per unit. Physical stacking of up to 12 units△ enhances network performance and redundancy.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability.
Comprehensive Security Functions
Defend against a range of network threats with Secure Boot, RADSEC, IMPB, Dynamic ARP Inspection, SFTP, 802.1X, and Secure Shell. Secure Boot protects the operating system from malicious attacks.
Highly Available
Two field-replaceable redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing.
Easy Operation and Maintenance
The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions.
Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.‡ Omada Pro’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network—all controlled from a single interface.
Apart from central management via the web or Omada app, S7500-24Y4C can be managed through an intuitive web GUI or industry-standard CLI, both secured with SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support provide status polling and abnormal event notifications. -
Administrationsfunktioner Switch-type Administreret Switch lag L3 Cloud-administreret Ja Konfigurerer lokationsindstillinger (CLI) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porttype Ingen Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Port til konsol RJ-45/USB Type-C QSFP28-portmængde 4 SSFP28-portmængde 24 Netværk Netværksstandarder IEEE 802.1p 10G understøttelse Ja Flowkontrol support Ja Link aggregering Ja Broadcast stormkontrol Ja Begrænsning af hastighed Ja Spanning tree protokol Ja Vituelle LAN funktioner IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN Dataoverførsel MAC adresselabel 128000 entries Switch kapacitet 2000 Gbit/sek. Hastighed for videresendelse 810 Mpps Antal køer 8 Statisk rute Ja Jumbo Frames support Ja Jumbo rammer 9000 Pakke bufferlager 8 MB Sikkerhed DHCP funktioner DHCP relay, DHCP server Adgangskontrolliste (ACL) Ja IGMP snooping Ja Filtrering af MAC-adresser Ja Statisk port, sikkerhed Ja SSH/SSL support Ja Godkendelsestype AAA, RADIUS, TACACS+ Design Stativ-montering Ja Stabelbar Ja Produktfarve Grå LED-indikatorer Ja Antal blæsere 4 blæser(e) Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Strømforbrug (maks.) 137,63 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) -5 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 1658,78 BUT/t Vægt & størrelser Bredde 440 mm Dybde 380 mm Højde 44 mm Emballage indhold Kabler inkluderet Vekselstrøm, LAN (RJ-45) Hurtig start guide Ja
