Varenummer: SG6654X
Mere information
-
What This Product Does

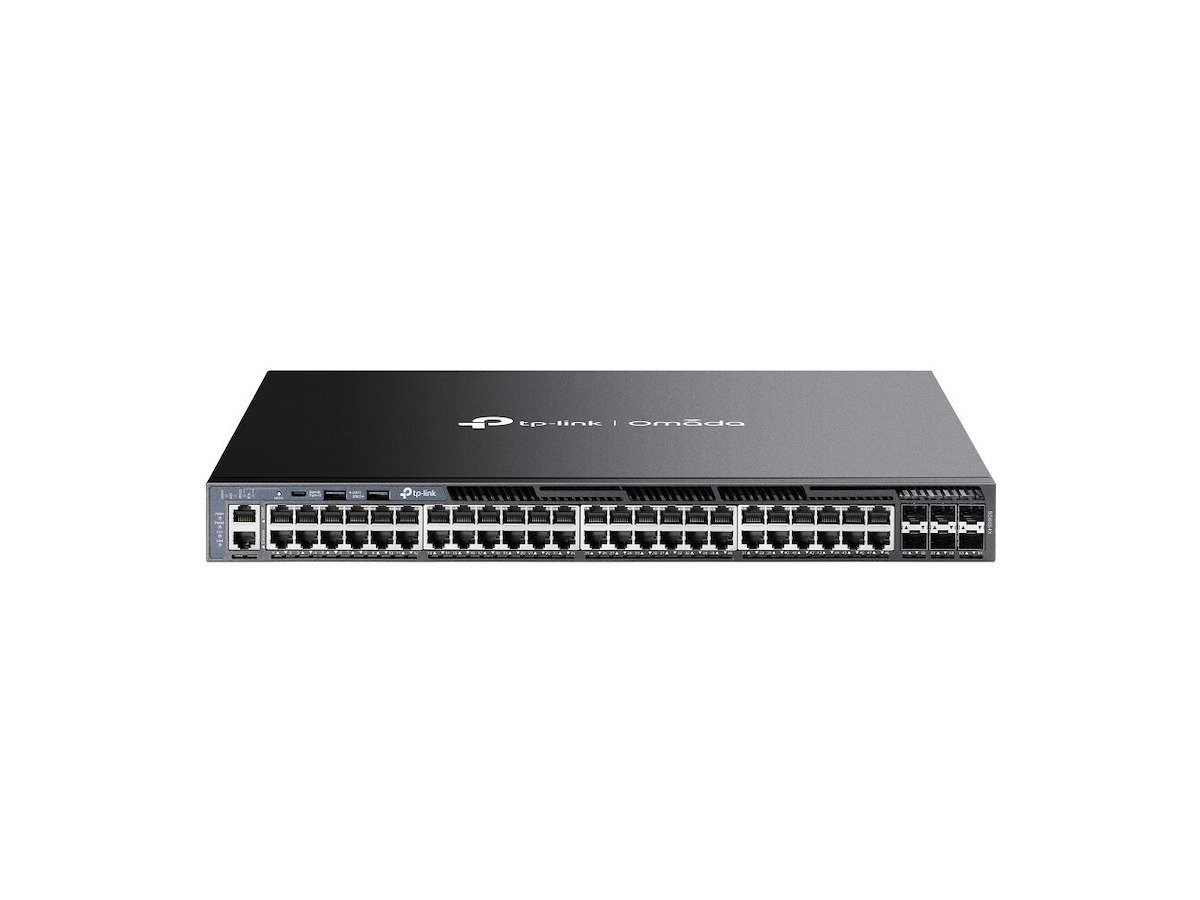

Omada SG6654X, a L3 managed switch, offers L3 routing, swift 10 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 48× gigabit RJ45 ports, 6× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.
High-speed Connectivity and Powerful Stacking
48× Gigabit RJ45 ports and 6× 10 Gbps SFP+ slots provide up to 216 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 864 Gbps switching capacity empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.
Highly Available
Internal fixed redundant power supplies and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).* The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG6654X is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events. -
Administrationsfunktioner Switch-type Administreret Switch lag L3 Servicekvalitet support (QoS) Ja Webbaseret administration Ja Cloud-administreret Ja ARP inspektion Ja Konfigurerer lokationsindstillinger (CLI) Ja System hændelseslog Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal SFP + modulslots 6 Port til konsol RJ-45/USB Type-C Antal USB 2.0-porte 2 Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x 10G understøttelse Ingen Port-spejlning Ja IP-routing Ja Flowkontrol support Ja Broadcast stormkontrol Ja Begrænsning af hastighed Ja Spanning tree protokol Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s VLAN understøttelse Ja Vituelle LAN funktioner MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN Antal VLAN'er 4000 Dataoverførsel MAC adresselabel 32000 entries Switch kapacitet 216 Gbit/sek. Hastighed for videresendelse 160,7 Mpps Statisk rute Ja Jumbo Frames support Ja Jumbo rammer 9000 Pakke bufferlager 3 MB Sikkerhed DHCP funktioner DHCP relay, DHCP snooping, DHCPv6 snooping Adgangskontrolliste (ACL) Ja IGMP snooping Ja IGMP indtastninger 2048 SSH/SSL support Ja Loop beskyttelse Ja Godkendelse Automatisk VLAN, MAC-baseret godkendelse, Portbaseret godkendelse Godkendelsestype RADIUS Multicast funktioner Multicast-understøttelse Ja Design Stativ-montering Ja Stabelbar Ja Formfaktor 1U Produktfarve Sort LED-indikatorer Ja Antal blæsere 4 blæser(e) Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Strømforbrug (maks.) 39,8 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) -5 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 135,81 BUT/t Vægt & størrelser Bredde 440 mm Dybde 380 mm Højde 44 mm Emballage indhold Kabler inkluderet Vekselstrøm, LAN (RJ-45) Brugervejledning Ja
