What This Product Does

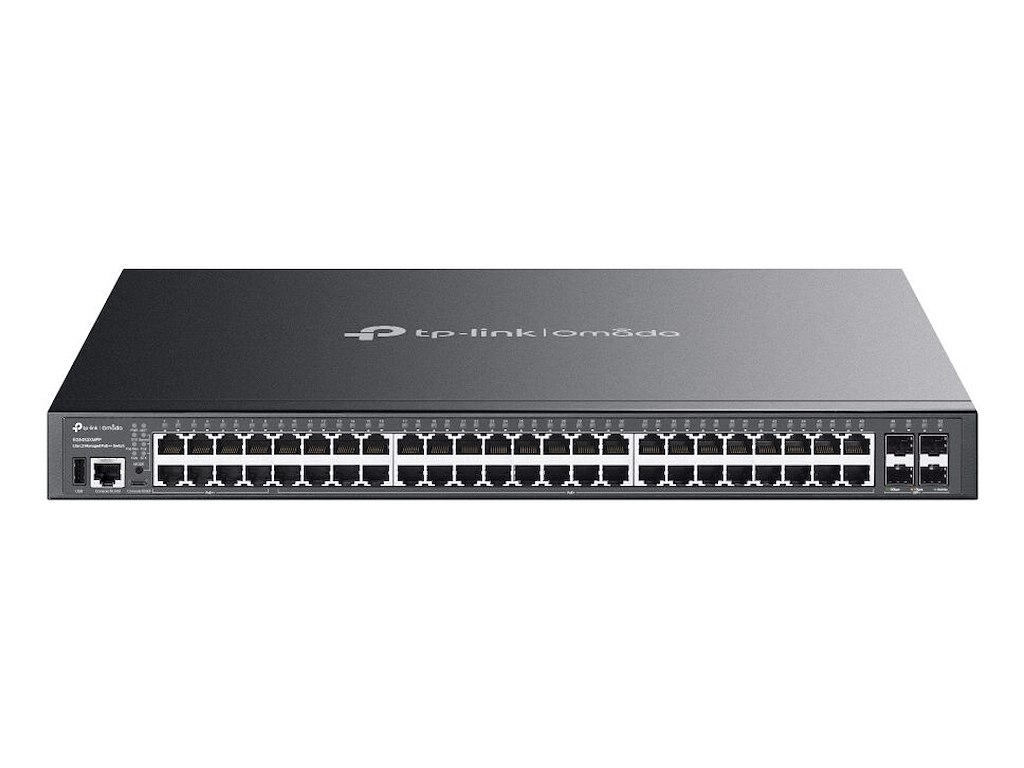

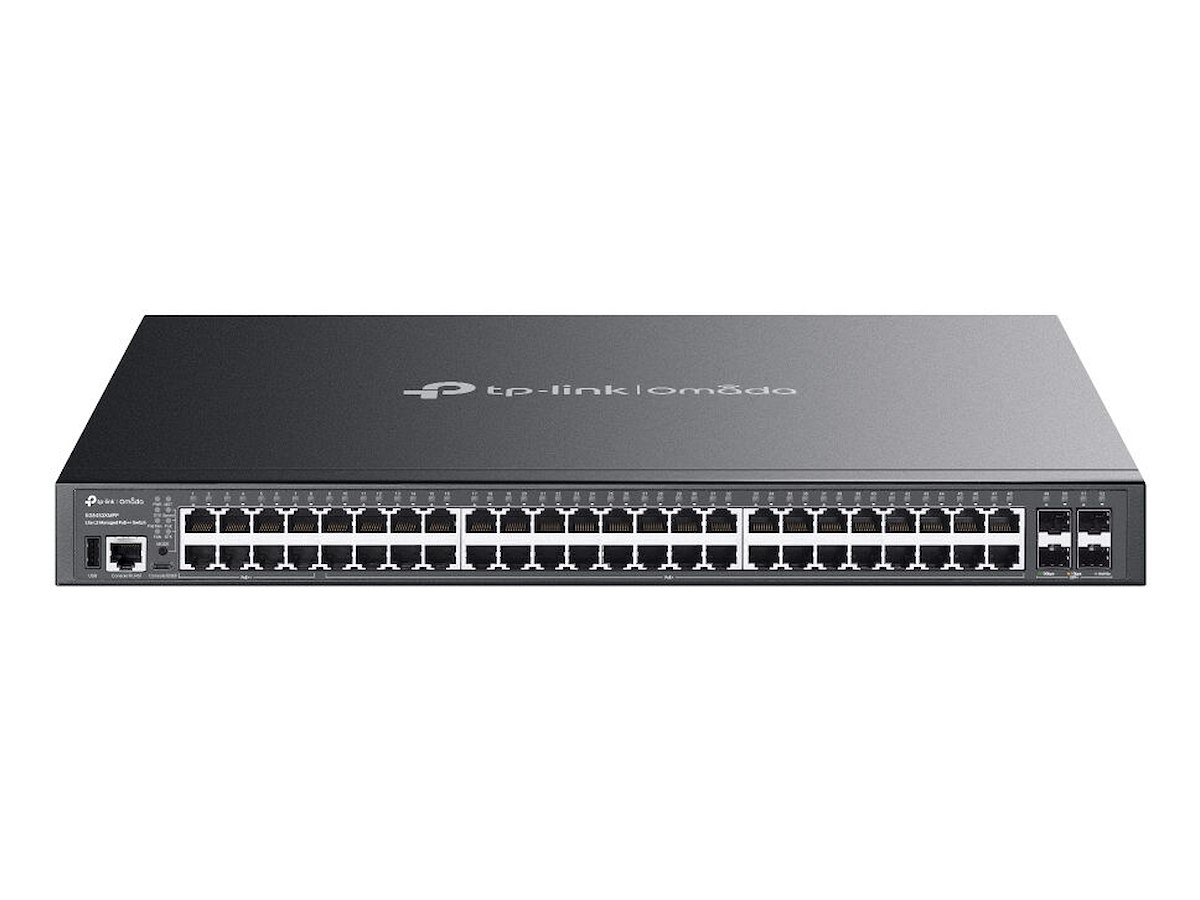

Omada SG5452XMPP is a dependable entry-level L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts a 770W PoE budget,* 48× gigabit RJ45 ports (8× PoE++, 40× PoE+), 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452XMPP offers a reliable networking solution for SMEs, and ISPs.
IEEE 802.3af/at/bt-compliant Power over Ethernet
8× IEEE 802.3af/at/bt-compliant and 40× IEEE 802.3af/at-compliant PoE ports supply up to 770W total power to 802.3af, 802.3at, and 802.3bt devices.* Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.
High-speed Connectivity and Powerful Stacking
48× gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management—all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG5452XMPP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events. -
Administrationsfunktioner Switch-type Administreret Switch lag L3 Servicekvalitet support (QoS) Ja Webbaseret administration Ja Cloud-administreret Ja ARP inspektion Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 48 Antal SFP + modulslots 4 Antal USB type-C-porte 1 Port til konsol RJ-45 Antal USB 2.0-porte 1 Netværk Netværksstandarder IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x 10G understøttelse Ja Port-spejlning Ja Link aggregering Ja Broadcast stormkontrol Ja VLAN understøttelse Ja Vituelle LAN funktioner MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN Antal VLAN'er 4000 Dataoverførsel MAC adresselabel 16000 entries Switch kapacitet 176 Gbit/sek. Hastighed for videresendelse 130,94 Mpps Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 9000 Pakke bufferlager 12 MB Sikkerhed DHCP funktioner DHCP relay, DHCP server Adgangskontrolliste (ACL) Ja IGMP snooping Ja Sikkerhedsalgoritmer SNMP, SNMPv2, SNMPv3 Filtrering af MAC-adresser Ja Statisk port, sikkerhed Ja SSH/SSL support Ja IP-MAC-portbinding Ja Beskyttelse af adgangskode Ja Multicast funktioner Multicast-understøttelse Ja Design Stativ-montering Ja Stabelbar Ja Produktfarve Sort LED-indikatorer Ja Antal blæsere 3 blæser(e) Præstation Fysisk stabling 4 Indbygget processer Ja Processorproducent ARM Processorfrekvens 1200 MHz Hukommelsestype DRAM Intern hukommelse 2000 MB Flashhukommelse 512 MB Støjniveau 58,5 dB Firmware kan opgraderes Ja Telnet Ja Ventilatorfri Ja Gennemsnitstid mellem fejl (MTBF) 275,277 t Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Strømforbrug (maks.) 893,6 W Beskyttelse ved overspænding Ja Overspændingsbeskyttelse 6 kV Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) -type understøttet PoE+, PoE++ (4PPoE) Power over Ethernet plus (PoE+) porte, antal 40 Antal Power over Ethernet 4PPoE-porte (PoE++) 8 Total Power over Ethernet (PoE) 770 W Andre funktioner Management niveau 4 Båndbredde 88 Gbit/sek. Driftsbetingelser Driftstemperatur (T-T) -5 - 45 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 3047,18 BUT/t Vægt & størrelser Bredde 440 mm Dybde 330 mm Højde 44 mm Emballage indhold Kabler inkluderet Vekselstrøm Hurtig start guide Ja Rack monteringskit Ja Godkendelser Compliance-certifikater CE, Federal Communications Commission (FCC), RoHS
