Varenummer: SG2210XMP-M2
Mere information
-
What This Product Does

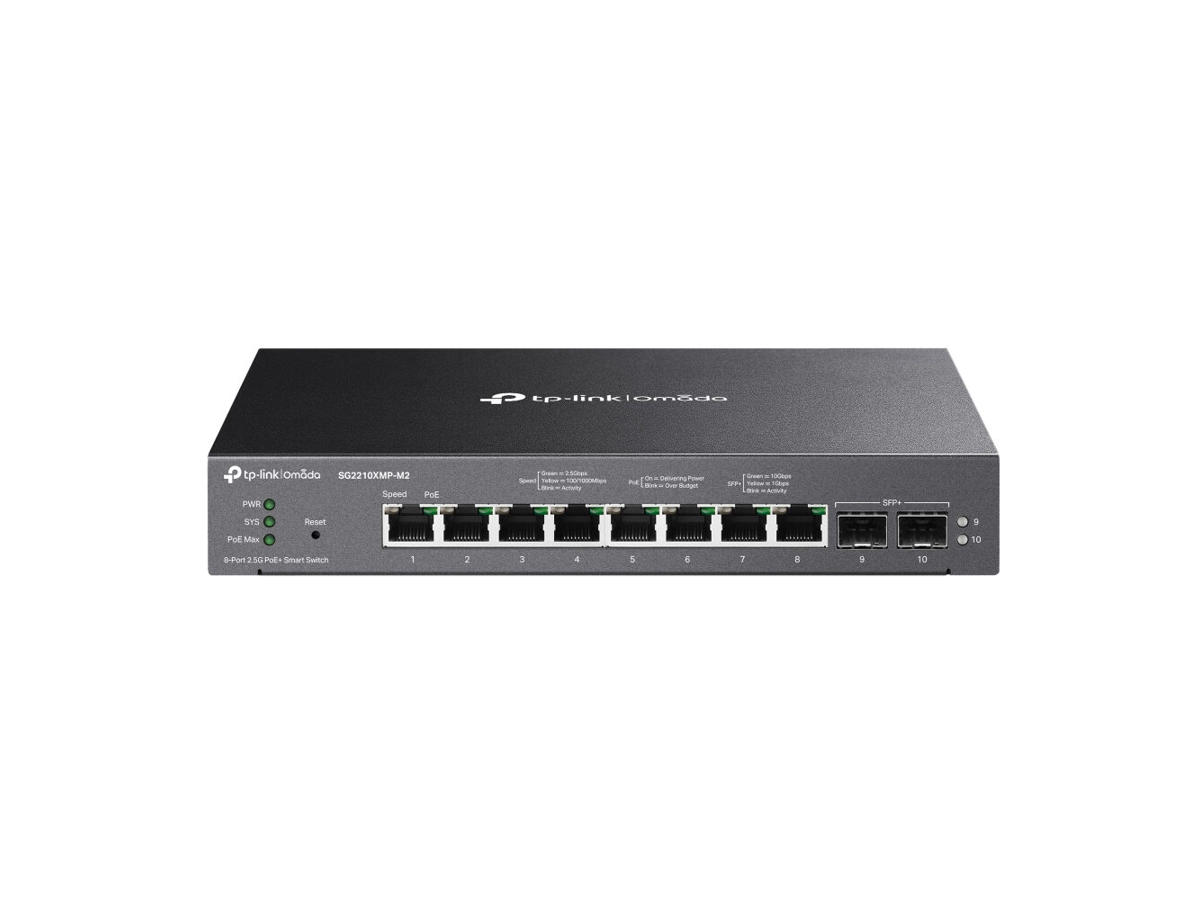

SG2210XMP-M2 is a 2.5G multi-gigabit switch with eight 2.5G PoE+ ports and two 10G uplink ports, ideal for connecting multi-gigabit WiFi 7/6 access points. Up to 160 W PoE budget, fanless design with compact and durable metal casing, and desktop/wall-mounting design make it suited for different environments. High-performance static routing, advanced security features, a selection of Layer 2 management options, and integration into the Omada SDN (Software-Defined Networking) meet the demand of reliable business networking.
2.5G PoE+ Ports and 10G Uplink
Eight IEEE 802.3at/af-compliant PoE ports supply up to 160 W total power to 802.3at and 802.3af devices.* Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily without the hassle and cost of installing power cabling. Two 10 Gbps SFP+ slots deliver non-blocking performance and minimal latency, ensuring rapid, dependable connections to servers and other switches.
Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them.
In addition, the Access Control Lists (ACL) feature restricts access to sensitive network resources by denying packets based on source and destination MAC addresses, IP addresses, TCP/UDP ports, or VLAN IDs. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/TACACS+ server to grant access only when valid user credentials are provided.
Advanced QoS
Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission—even when bandwidth is in short supply.
Abundant L2 and L2+ Feature
SG2210XMP-M2 supports a complete lineup of L2 features, including Static Routing, DHCP Server, DHCP Relay, 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency.
Omada SDN Integration
Integration into the Omada SDN system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP)** and Abnormal Event Warnings. Omada's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management.
Apart from the ability to be centrally managed via Omada SDN controllers, SG2210XMP-M2 simplifies management via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events. -
Administrationsfunktioner Switch-type Administreret Switch lag L2/L2+ Servicekvalitet support (QoS) Ja Webbaseret administration Ja Cloud-administreret Ja ARP inspektion Ja Konfigurerer lokationsindstillinger (CLI) Ja System hændelseslog Ja MIB support Y Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype 2.5G Ethernet (100/1000/2500) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP + modulslots 2 Strømstik Vekselstrøm/jævnstrøm Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x 10G understøttelse Ingen Port-spejlning Ja Flowkontrol support Ja Link aggregering Ja Broadcast stormkontrol Ja Begrænsning af hastighed Ja Spanning tree protokol Ja Ethernet LAN-datahastigheder 10,100,1000,2500 Mbit/s VLAN understøttelse Ja Vituelle LAN funktioner Protocol-based VLAN, Tagged VLAN, Voice VLAN Antal VLAN'er 4000 Dataoverførsel MAC adresselabel 16000 entries Switch kapacitet 80 Gbit/sek. Hastighed for videresendelse 59,52 Mpps Statisk rute Ja Jumbo Frames support Ja Jumbo rammer 9000 Pakke bufferlager 9 MB Sikkerhed DHCP funktioner DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping Adgangskontrolliste (ACL) Ja IGMP snooping Ja Sikkerhedsalgoritmer SNMP, SNMPv2, SNMPv3 Loop beskyttelse Ja Godkendelse MAC-baseret godkendelse, Portbaseret godkendelse Godkendelsestype RADIUS Multicast funktioner Multicast-understøttelse Ja Design Stativ-montering Ja Formfaktor Bord-/vægmontering Produktfarve Sort Knap til nulstilling Ja LED-indikatorer Ja Kan monteres på væggen Ja Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Strømforbrug (maks.) 180,1 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 8 Total Power over Ethernet (PoE) 160 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 614,58 BUT/t Vægt & størrelser Bredde 226 mm Dybde 131 mm Højde 35 mm Emballage indhold Hurtig start guide Ja Godkendelser Compliance-certifikater CE, Federal Communications Commission (FCC), RoHS Bæredygtighed Overholdelse af bæredygtighed Ja
