What This Product Does

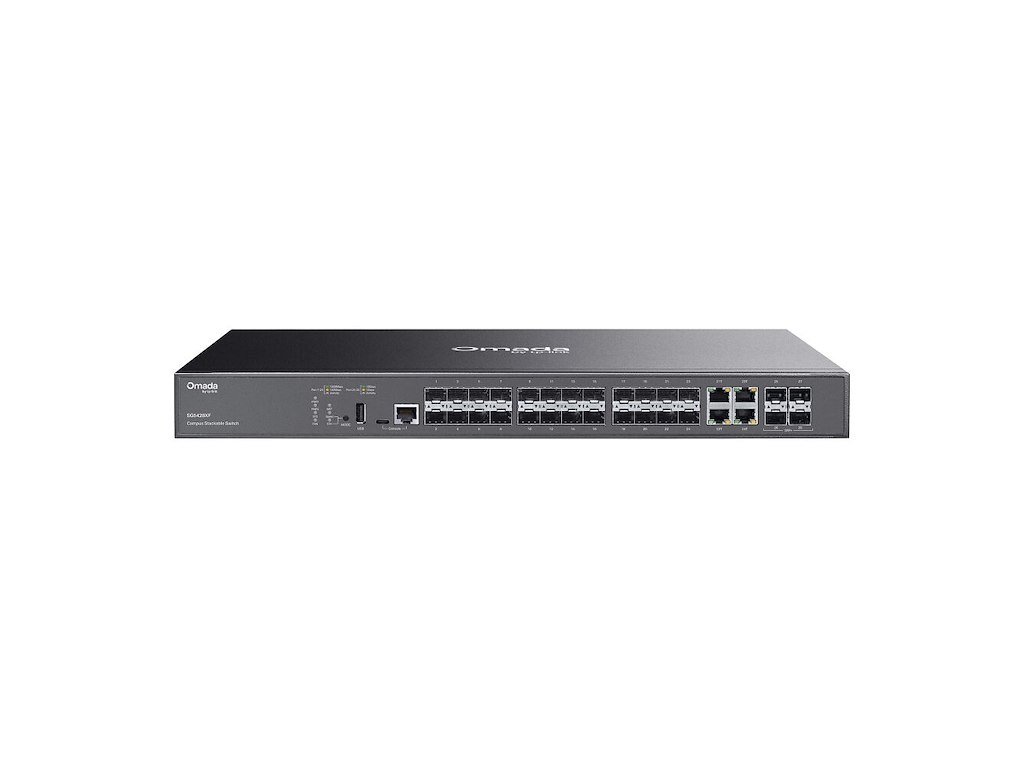

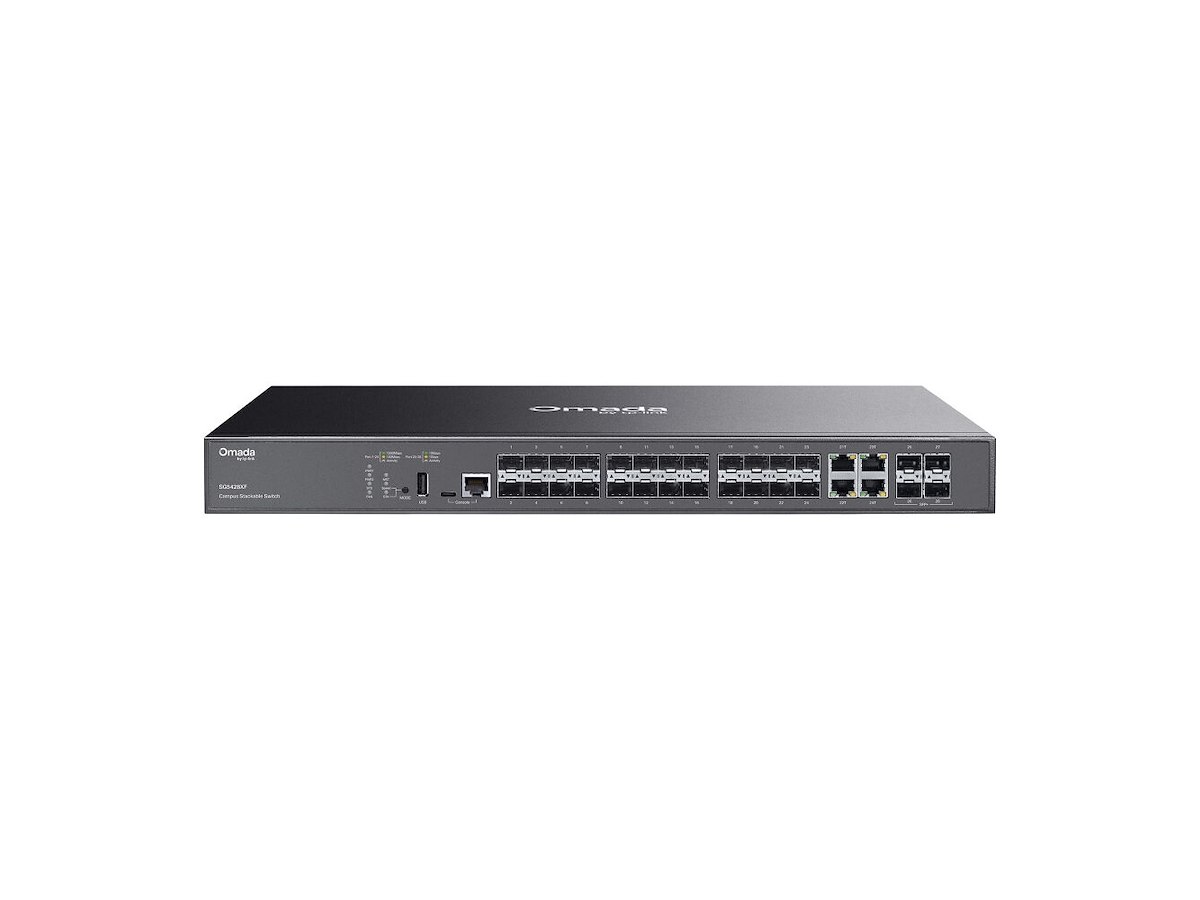

Omada SG5428XF is a dependable entry-level L3 switch tailored for the aggregation layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It includes 20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, 4× 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5428XF offers a reliable networking solution for SMEs and ISPs.
High-speed Connectivity and Powerful Stacking
20× gigabit SFP slots, 4× gigabit RJ45/SFP combo ports, and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium-sized business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management—all controlled from a single interface. Apart from the ability to be centrally managed via the web or the Omada app, SG5428XF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events. -
Administrationsfunktioner Switch-type Administreret Switch lag L3 Servicekvalitet support (QoS) Ja Webbaseret administration Ja ARP inspektion Ja Porte & Grænseflader Kombo SFP porte, antal 4 Antal SFP modulslots 20 Antal SFP + modulslots 4 Antal USB Type-A-porte 1 Fiberkanal porte 4 Fiber optisk strømstik SFP Port til konsol RJ-45/USB Type-C Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3x Port-spejlning Ja Flowkontrol support Ja Link aggregering Ja Broadcast stormkontrol Ja Begrænsning af hastighed Ja Spanning tree protokol Ja VLAN understøttelse Ja Vituelle LAN funktioner Management VLAN, Multicast VLAN, Private VLAN, Tagged VLAN, Voice VLAN Dataoverførsel MAC adresselabel 16000 entries Switch kapacitet 128 Gbit/sek. Antal køer 8 Jumbo Frames support Ja Jumbo rammer 9000 Pakke bufferlager 12 MB Sikkerhed DHCP funktioner DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping IGMP snooping Ja Sikkerhedsalgoritmer SNMP, SNMPv2, SNMPv3 IP-MAC-portbinding Ja Godkendelse Gæste VLAN Godkendelsestype AAA, TACACS+ Multicast funktioner Multicast Listener Discovery (MLD) snooping Yes Protokoller GARP VLAN registreringsprotokol (GVRP) Ja Routing-protokoller OSPF, OSPFv2, OSPFv3, RIP Design Stativ-montering Ja Stabelbar Ja Produktfarve Sort Antal blæsere 1 blæser(e) Strømstyring Strømkilde Vekselstrøm Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Strømforbrug (typisk) 28,3 W Strømforbrug (maks.) 28,98 W Driftsbetingelser Driftstemperatur (T-T) -5 - 45 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 98,822 BUT/t Vægt & størrelser Bredde 440 mm Dybde 220 mm Højde 44 mm Emballage indhold Kabler inkluderet Vekselstrøm Hurtig start guide Ja Rack monteringskit Ja
