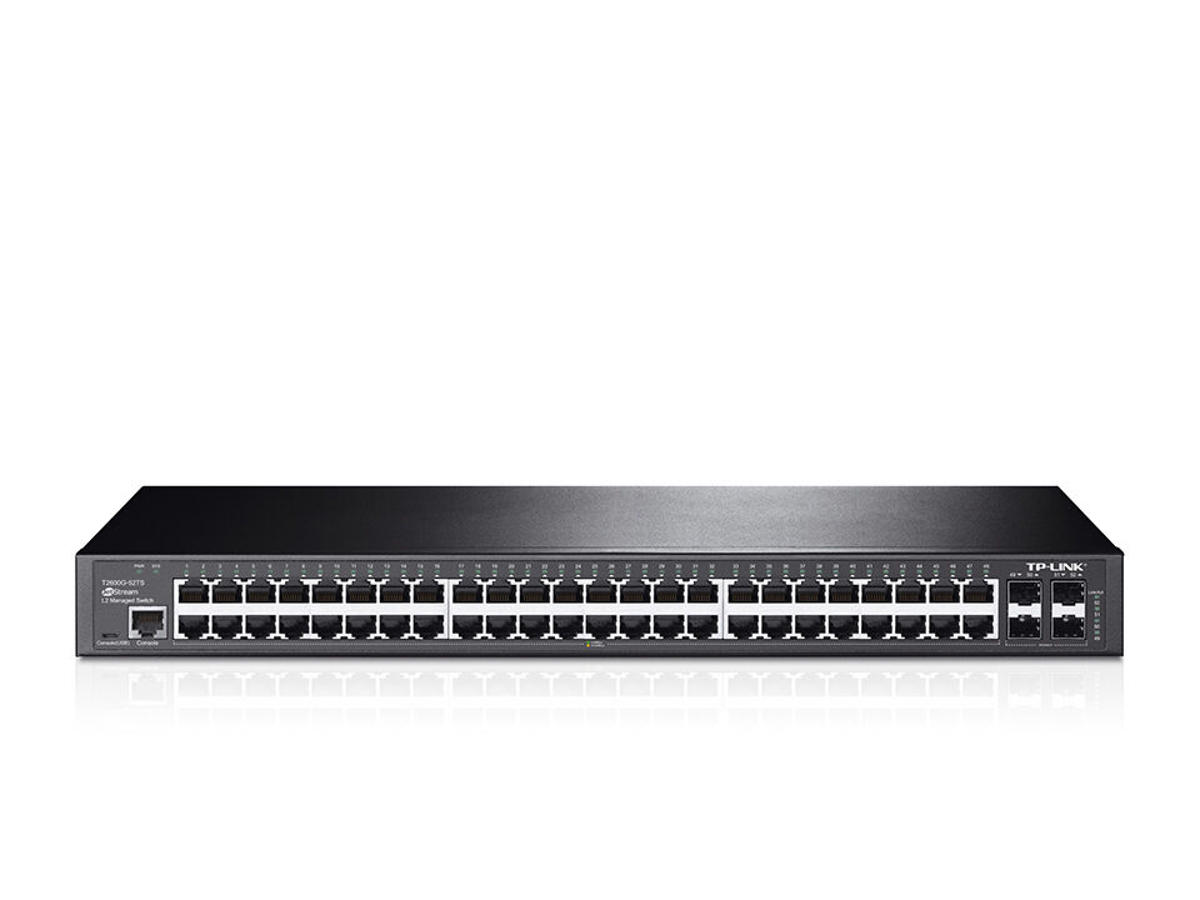

TP-Link T2600G-52TS (TL-SG3452) Administreret L2+ Gigabit Ethernet (10/100/1000) 1U Sort
Varenummer: T2600G-52TS
.
DKK 3.206,25 / Stk
DKK 2.565,00 ekskl. moms
  •
TP-Link T2600G-52TS (TL-SG3452). Switch-type: Administreret, Switch lag: L2+. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 48, Port til konsol: RJ-45. MAC adresselabel: 16 entries, Switch kapacitet: 104 Gbit/sek.. Netværksstandarder: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE.... Stativ-montering, Formfaktor: 1U


Mere information

  • TP-LINK JetStream Gigabit L2 managed switch T2600G-52TS provides 48 10/100/1000Mbps ports and 4 Gigabit SFP Slots. The switch provides high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS and other advanced security strategies. The IP-MAC-Port Binding and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP, RMON and Dual Image mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive L2 Switch and gigabit capability, TP-LINK JetStream 48-Port Gigabit L2 managed Switch T2600G-52TS provides you the ideal network solution. Secure Networking TP-LINK JetStream L2 managed switch T2600G-52TS provides IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource. Advanced QoS features To integrate voice, data and video service on one traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance. Abundant L2 and L2+ features T2600G-52TS supports a complete lineup of L2 features, including 802.1Q tag VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance, such as Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T2600G-52TS supports L2+ feature—static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use. IPv6 Support T2600G-52TS supports various IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discovery, which guarantees your network is ready for the Next Generation Network (NGN) without upgrading your network equipment. Enterprise Level Management Features T2600G-52TS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI), either administration traffic can be protected through SSL or SSH encryptions. SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And it also supports Dual Image,which provides reduced down-time for the switches.

  • Administrationsfunktioner
    Switch-type Administreret
    Switch lag L2+
    Servicekvalitet support (QoS) Ja
    Webbaseret administration Ja
    ARP inspektion Ja
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 48
    Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
    SFP/SFP+ porte, antal 4
    Antal SFP modulslots 4
    Port til konsol RJ-45
    Netværk
    Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    Understøttede kabeltyper Cat5, Cat5e
    Port-spejlning Ja
    Link aggregering Ja
    Broadcast stormkontrol Ja
    Begrænsning af hastighed Ja
    Auto MDI/MDI-X Ja
    Spanning tree protokol Ja
    Auto-forhandling Ja
    VLAN understøttelse Ja
    Vituelle LAN funktioner Private VLAN, Protocol-based VLAN
    Dataoverførsel
    MAC adresselabel 16 entries
    Switch kapacitet 104 Gbit/sek.
    Antal køer 8
    Jumbo rammer 9216
    Pakke videresendelsesrate (10 Mbps) 77400000 pps
    Sikkerhed
    DHCP funktioner DHCP server
    Adgangskontrolliste (ACL) Ja
    IGMP snooping Ja
    Sikkerhedsalgoritmer 802.1x RADIUS
    Filtrering af MAC-adresser Ja
    Statisk port, sikkerhed Ja
    SSH/SSL support Ja
    BPDU filtrering/beskyttelse Ja
    IP-MAC-portbinding Ja
    Multicast funktioner
    Multicast-understøttelse Ja
    Design
    Stativ-montering Ja
    Formfaktor 1U
    Produktfarve Sort
    Præstation
    Firmware kan opgraderes Ja
    Maksimal kabellængde 1 m
    Strømstyring
    Strømforsyning inkluderet Ja
    Vekselstrømsindgangsspænding 100 - 220 V
    Vekselstrømsindgangsfrekvens 50 - 60 Hz
    Strømforbrug (maks.) 33,52 W
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Relativ luftfugtighed ved drift (H-H) 10 - 90%
    Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
    Vægt & størrelser
    Bredde 440 mm
    Dybde 220 mm
    Højde 44 mm
    Vægt 4,5 kg
    Emballeringsdata
    Kabler inkluderet Vekselstrøm
    Brugervejledning Ja
    Monteringsbeslag inkluderet Ja
    Gummifødder Ja
