Varenummer: TL-SG108PE
Mere information
-

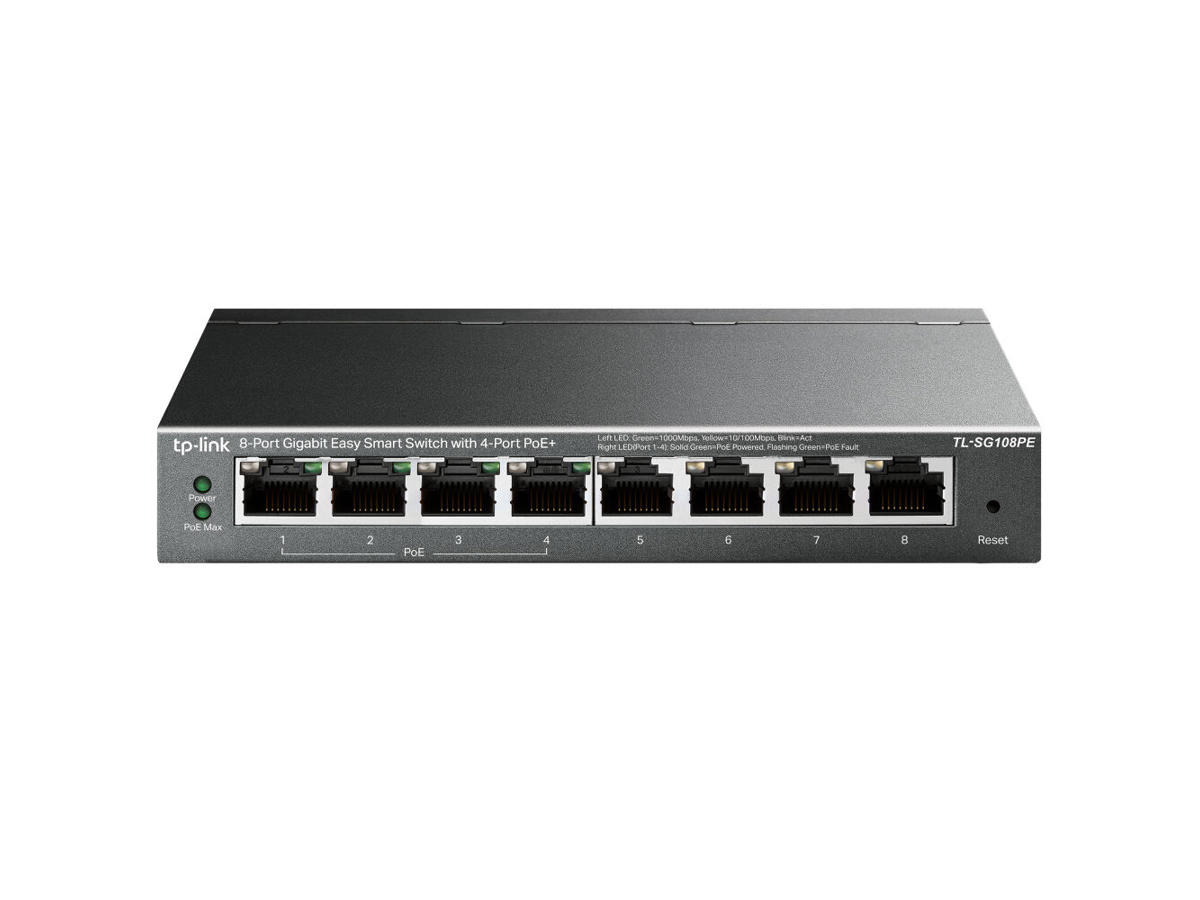

he TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed specically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.
Power Over Ethernet
4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Effective Management
TL-SG108PE offers network monitoring for users to observe trafc behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the trafc based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.
Easy to Use
TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis. -
Administrationsfunktioner Switch-type Administreret Switch lag L2 Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Port-spejlning Ja Link aggregering Ja Broadcast stormkontrol Ja Begrænsning af hastighed Ja VLAN understøttelse Ja Antal VLAN'er 32 Dataoverførsel MAC adresselabel 4000 entries Switch kapacitet 16 Gbit/sek. Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 15000 Pakke videresendelsesrate (1 Gbps) 11900000 pps Pakke bufferlager 1,5 MB Sikkerhed IGMP snooping Ja Loop beskyttelse Ja Design Stativ-montering Ingen Produktfarve Sort LED-indikatorer Aktivitet, Link, PoE, Strøm, Hastighed, Status Strømstyring Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 220 V Vekselstrømsindgangsfrekvens 50 Hz Indgangsstrøm 1.25 A Strømforbrug (maks.) 65,2 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) porte, antal 4 Power over Ethernet plus (PoE+) porte, antal 4 Total Power over Ethernet (PoE) 55 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Vægt & størrelser Bredde 158 mm Dybde 101 mm Højde 25 mm Emballage indhold Kabler inkluderet Vekselstrøm Brugervejledning Ja Emballeringsdata Pakketype Kasse Godkendelser Certificering FCC, CE, RoHS Logistik data Harmoniseret systemkode (HS) 85176990
