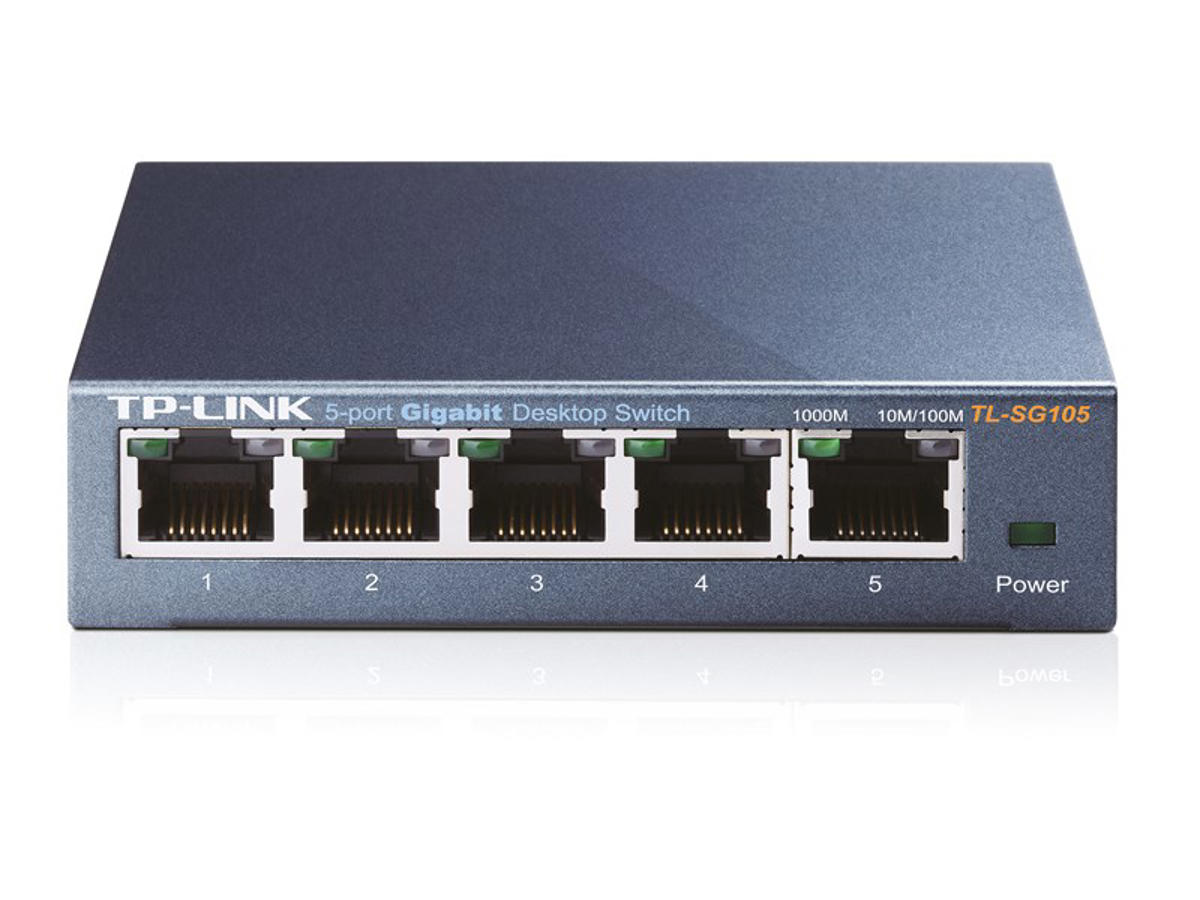

TP-Link TL-SG105 netværksswitch Ikke administreret L2 Gigabit Ethernet (10/100/1000) Sort
Varenummer: TL-SG105
.
DKK 187,50 / Stk
DKK 150,00 ekskl. moms
  •
TP-Link TL-SG105. Switch-type: Ikke administreret, Switch lag: L2. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 5. Fuld duplex. MAC adresselabel: 2048 entries, Switch kapacitet: 10 Gbit/sek.. Netværksstandarder: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Strømstik: DC-in-stik. Kan monteres på væggen


Mere information

  • What This Product Does

    The TP-Link 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Plug and Play design, with no configuration required, makes the product easy to use. Moreover, TL-SG105S adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105S can save power consumption, making it an eco-friendly solution for your home or office network.

    Gigabit Switch

    Featured with 5 10/100/1000Mbps ports, TL-SG105S greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

    Go Green With Your Ethernet

    You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105S 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

    Traffic Optimization

    802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.

    Easy to use

    The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Moreover, fanless design ensures quiet operation.

  • Administrationsfunktioner
    Switch-type Ikke administreret
    Switch lag L2
    Servicekvalitet support (QoS) Ja
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 5
    Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
    Antal installerede SFP moduler 0
    Antal installerede SFP+ moduler 0
    Gigabit Ethernet (kobber) porte, antal 5
    Strømstik DC-in-stik
    Netværk
    Netværksstandarder IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
    10G understøttelse Ingen
    Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T
    Understøttede kabeltyper Cat3, Cat4, Cat5, Cat5e
    Fuld duplex Ja
    Flowkontrol support Ja
    Auto MDI/MDI-X Ja
    Auto-forhandling Ja
    MAC-adresse auto-indlæring understøttet Ja
    MAC-adresse auto-forældelse understøttet Ja
    Dataoverførsel
    MAC adresselabel 2048 entries
    Switch kapacitet 10 Gbit/sek.
    Hastighed for videresendelse 7,4 Mpps
    Opbevar-og-frem Ja
    Jumbo Frames support Ja
    Jumbo rammer 16000
    Pakke bufferlager 1 MB
    Sikkerhed
    IGMP snooping Ja
    Multicast funktioner
    Multicast-understøttelse Ja
    Design
    Stativ-montering Ingen
    Produktfarve Sort
    Husmateriale Stål
    LED-indikatorer Ja
    Kan monteres på væggen Ja
    Strømstyring
    Strømforsyning inkluderet Ja
    Vekselstrømsindgangsspænding 220 V
    Vekselstrømsindgangsfrekvens 50 Hz
    Indgangsstrøm 0.6 A
    Strømforbrug (maks.) 2,3 W
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ingen
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Opbevaringstemperatur (T-T) -40 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 10 - 90%
    Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
    Varmeafgivelse 7,83 BUT/t
    Vægt & størrelser
    Bredde 100 mm
    Dybde 98 mm
    Højde 25 mm
    Emballage indhold
    Kabler inkluderet Vekselstrøm
    Brugervejledning Ja
    Emballeringsdata
    Pakketype Kasse
    Godkendelser
    Certificering CE, FCC, RoHS
    Logistik data
    Harmoniseret systemkode (HS) 85176990
