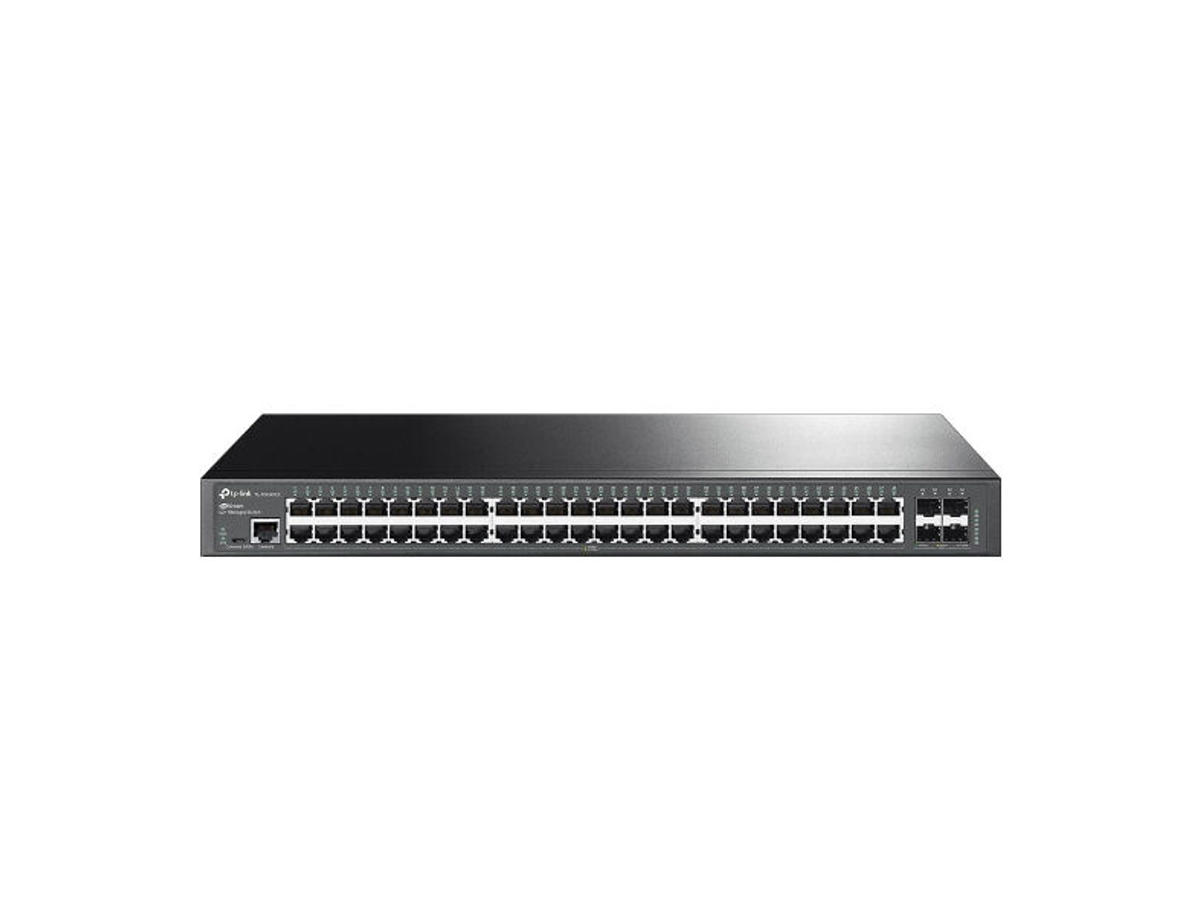

10G Uplink Managed Switch for a Complete Omada Network - 10G Lightning-Fast Uplink Connection 4× 10Gbps SFP+ Slots for High-Bandwidth Connectivity - Gigabit Connections 48× Gigabit Ethernet Ports Offer Reliable Connections - Centralized Cloud Management SDN Solutions Integration for a Highly Efficient Network - Advanced L2+ Features Static Routing, IGMP Snooping, 802.1Q VLAN and More Enterprise Switch with 10G Uplink 4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built. Software Defined Networking (SDN) with Cloud Access Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Advanced L3 Features** An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs. Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided. Enterprise Level Features A complete lineup of L2+ features is supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to the appropriate subscribers, cutting unnecessary traffic. IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routes traffic through the switch for improved efficiency. Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply. ISP Features** sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware. *Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller. Please go to www.tp-link.com/en/omada-cloud-based-controller/product-list/ to find all the models supported by Omada Cloud-Based Controller. **L3 and ISP features can only be configured in standalone mode.
Administrationsfunktioner | |
Switch-type | Administreret |
Switch lag | L2+ |
Servicekvalitet support (QoS) | Ja |
Webbaseret administration | Ja |
Cloud-administreret | Ja |
ARP inspektion | Ja |
Konfigurerer lokationsindstillinger (CLI) | Ja |
System hændelseslog | Ja |
MIB support | Y |
Offentlig MIB | Y |
Huawei-proprietær MIB | Y |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 48 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Antal SFP + modulslots | 4 |
Port til konsol | RJ-45 |
Netværk | |
Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad |
10G understøttelse | Ja |
Port-spejlning | Ja |
Flowkontrol support | Ja |
Link aggregering | Ja |
Broadcast stormkontrol | Ja |
Begrænsning af hastighed | Ja |
Spanning tree protokol | Ja |
Head-of-line (HOL) blokering | Ja |
VLAN understøttelse | Ja |
Dataoverførsel | |
MAC adresselabel | 16000 entries |
Switch kapacitet | 176 Gbit/sek. |
Hastighed for videresendelse | 130,9 Mpps |
Jumbo Frames support | Ja |
Jumbo rammer | 9 |
Sikkerhed | |
DHCP funktioner | DHCP client, DHCP relay, DHCP server |
Adgangskontrolliste (ACL) | Ja |
IGMP snooping | Ja |
Filtrering af MAC-adresser | Ja |
Statisk port, sikkerhed | Ja |
SSH/SSL support | Ja |
BPDU filtrering/beskyttelse | Ja |
IP-MAC-portbinding | Ja |
Godkendelse | Automatisk VLAN, Gæste VLAN |
Multicast funktioner | |
Multicast-understøttelse | Ja |
Multicast Listener Discovery (MLD) snooping | Y |
Protokoller | |
GARP VLAN registreringsprotokol (GVRP) | Ja |
IPv4 & IPv6 funktioner | IPv6 Telnet, IPv6 tracert |
Design | |
Stativ-montering | Ja |
Formfaktor | 1U |
Produktfarve | Sort |
LED-indikatorer | Ja |
Certificering | CE, FCC, RoHS |
Strømstyring | |
Strømkilde | Vekselstrøm |
Strømforsyning inkluderet | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50/60 Hz |
Strømforbrug (maks.) | 32,72 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 45 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Varmeafgivelse | 111,65 BUT/t |
Vægt & størrelser | |
Bredde | 440 mm |
Dybde | 220 mm |
Højde | 44 mm |
Emballeringsdata | |
Kabler inkluderet | Vekselstrøm |
Hurtig start guide | Ja |
Rack skinner | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
