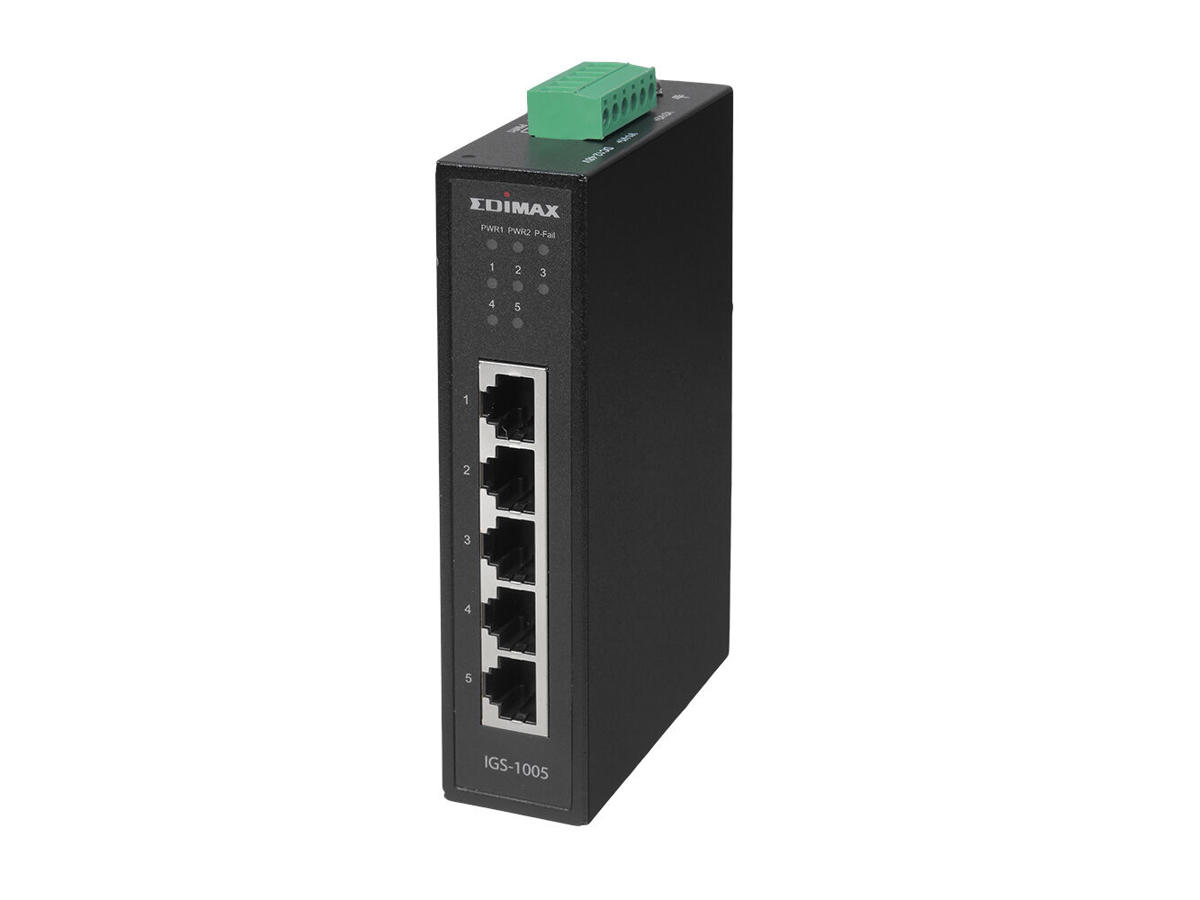

Varenummer: IGS-1005
Mere information
-
6KV Lightning Surge Protection
Supports 6KV lightning surge protection to avoid damage done to the switch and connected devices.
Wide Temperature Range
The industrial switch operates with a wide temperature range from -20°C to 70°C (-4°F to 158°F) for industrial network deployment in the extreme hot and freezing environments.
Long Range Guaranteed 200M
Provides the long range solution with guaranteed of 200 meters (656 ft.), ideal for surveillance and parking lot applications.
Reliable Power Redundancy
Supports power redundancy with two power inputs to decrease unexpected risk and ensures stable and reliable network service quality.
QoS with Improved Traffic Efficiency
Supports 802.1p QoS for ensuring first priority voice and video traffic for reduced package loss, lower latency and jitter on the network.
Flexible DIN-Rail & Wall Mount
The switch is designed with flexibility for whether DIN-rail mount or wall-mount deployment.
For Harsh Environments in IIoT and Smart City
Ideal solution for industrial networks such as automotive, factory automation, oil and gas, mining, military, transportation, substation, energy and outdoor applications of railways, roads, tunnels, smart cities, city surveillance and traffic monitoring. -
Administrationsfunktioner Switch-type Ikke administreret Switch lag L2 Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 5 Netværk Netværksstandarder IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Fuld duplex Ja Flowkontrol support Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Dataoverførsel MAC adresselabel 2048 entries Switch kapacitet 10 Gbit/sek. Hastighed for videresendelse 7,44 Mpps Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 9000 Pakke videresendelsesrate (1 Gbps) 1488000 pps Pakke videresendelsesrate (100 Mbps) 148800 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Design Stativ-montering Ingen Produktfarve Sort Husmateriale Metal LED-indikatorer Ja Kode for international beskyttelse (IP) IP30 Kan monteres på væggen Ja DIN-skinne montering Ja Præstation Ventilatorfri Ja Gennemsnitstid mellem fejl (MTBF) 1000000 t Strømstyring Strømkilde DC Redundant strømforsyning Ja DC indgangsspænding 12 - 48 V Indgangsstrøm 2.5 A Strømbeskyttelsesfunktioner Overbelastning Driftsbetingelser Driftstemperatur (T-T) -20 - 70 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 10 - 95% Relativ luftfugtighed ved opbevaring (H-H) 10 - 95% Vægt & størrelser Bredde 83,6 mm Dybde 30 mm Højde 127,5 mm Vægt 387 g Godkendelser Compliance-certifikater CE Certificering FCC, BSMI Logistik data Harmoniseret systemkode (HS) 85176990 Bæredygtighed Overholdelse af bæredygtighed Ja
