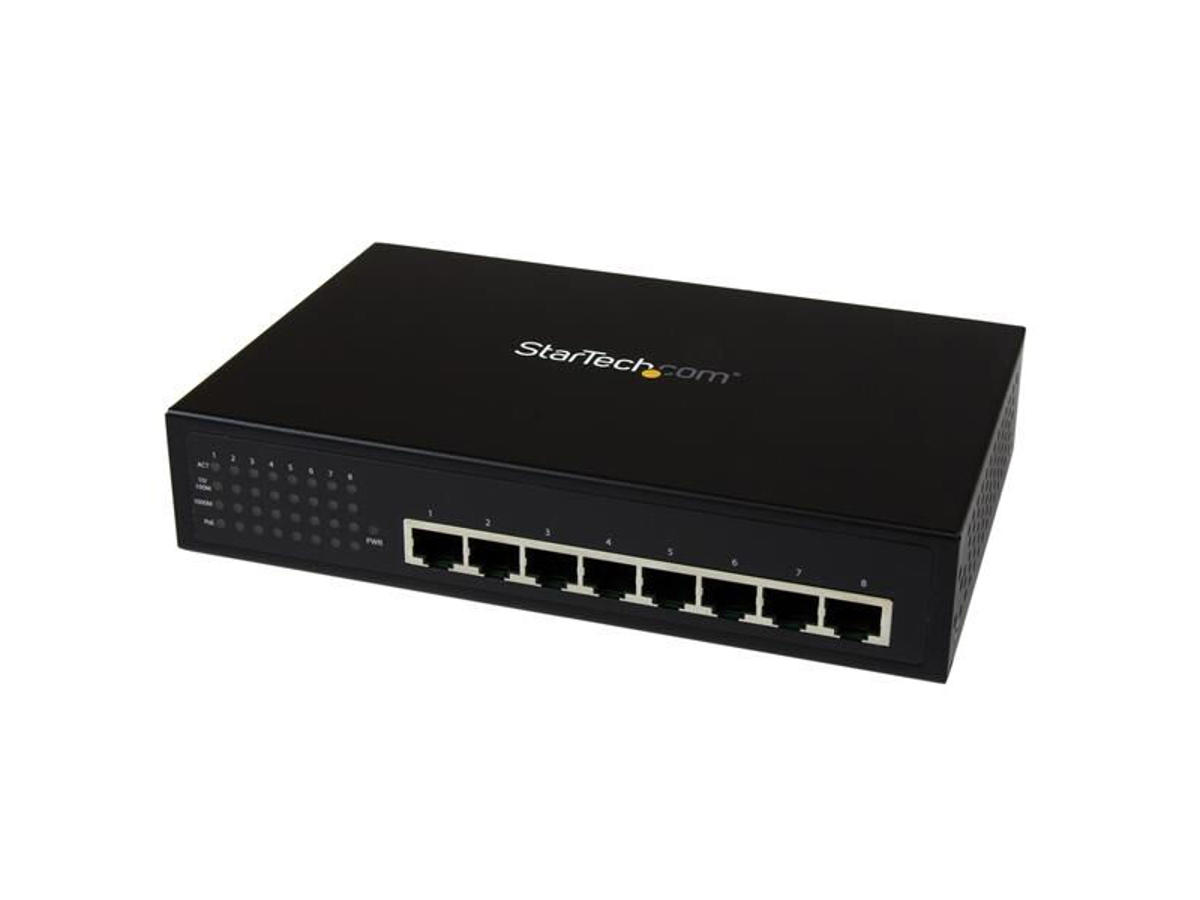

Connect power and Gigabit Ethernet data to 8 PoE-enabled devices, with 30W per-port output - Wall Mountable
The IES81000POE 8-Port Gigabit Power over Ethernet Switch lets you connect Gigabit Ethernet and power to up to eight PoE-enabled devices, or a mixture of PoE and non-PoE components.
Giving you the freedom to place your equipment in locations where power outlets are not available, this PoE+ switch complies with IEEE 802.3af and 802.3at standards and supplies up to 30 W per port, with a total power budget of 120 W.
A true unmanaged switching solution, the 8 PSE (Power Sourcing Equipment) ports sense whether the connected devices are PoE-ready or require data connectivity only, and also auto-negotiate between 10/100/1000 Mbps network speed and duplex.
The Gigabit Ethernet switch features a sturdy, wall-mountable metal enclosure for durability, and front panel LEDs for quick indication of connection speed and status.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Position your network devices where power outlets aren’t available, with 30 Watts per-port from the switch
- Reduce expenses by using existing standard Cat5/5e/6 Ethernet cabling to deliver power and data
- Provides durable performance in harsh environments with a sturdy steel construction
| Administrationsfunktioner | |
| Switch-type | Ikke administreret |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Strømstik | DC-in-stik |
| Netværk | |
| Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G understøttelse | Ingen |
| Fuld duplex | Ja |
| Auto MDI/MDI-X | Ja |
| Dataoverførsel | |
| Switch kapacitet | 2 Gbit/sek. |
| Pakke bufferlager | 0,128 MB |
| Design | |
| Stativ-montering | Ingen |
| Produktfarve | Sort |
| LED-indikatorer | Aktivitet, Link, PoE |
| Strømstyring | |
| Vekselstrømsindgangsspænding | 110 - 240 V |
| Indgangsstrøm | 2 A |
| Strømforbrug (typisk) | 120 W |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ja |
| Power over Ethernet plus (PoE+) porte, antal | 8 |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 55 °C |
| Opbevaringstemperatur (T-T) | -20 - 90 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
| Vægt & størrelser | |
| Bredde | 188 mm |
| Dybde | 119 mm |
| Højde | 38 mm |
| Vægt | 750 g |
| Emballage indhold | |
| Brugervejledning | Ja |
| Emballeringsdata | |
| Pakkebredde | 197 mm |
| Pakkedybde | 371 mm |
| Pakkehøjde | 69 mm |
| Pakkevægt | 1,75 kg |
