Varenummer: IES51000
Mere information
-

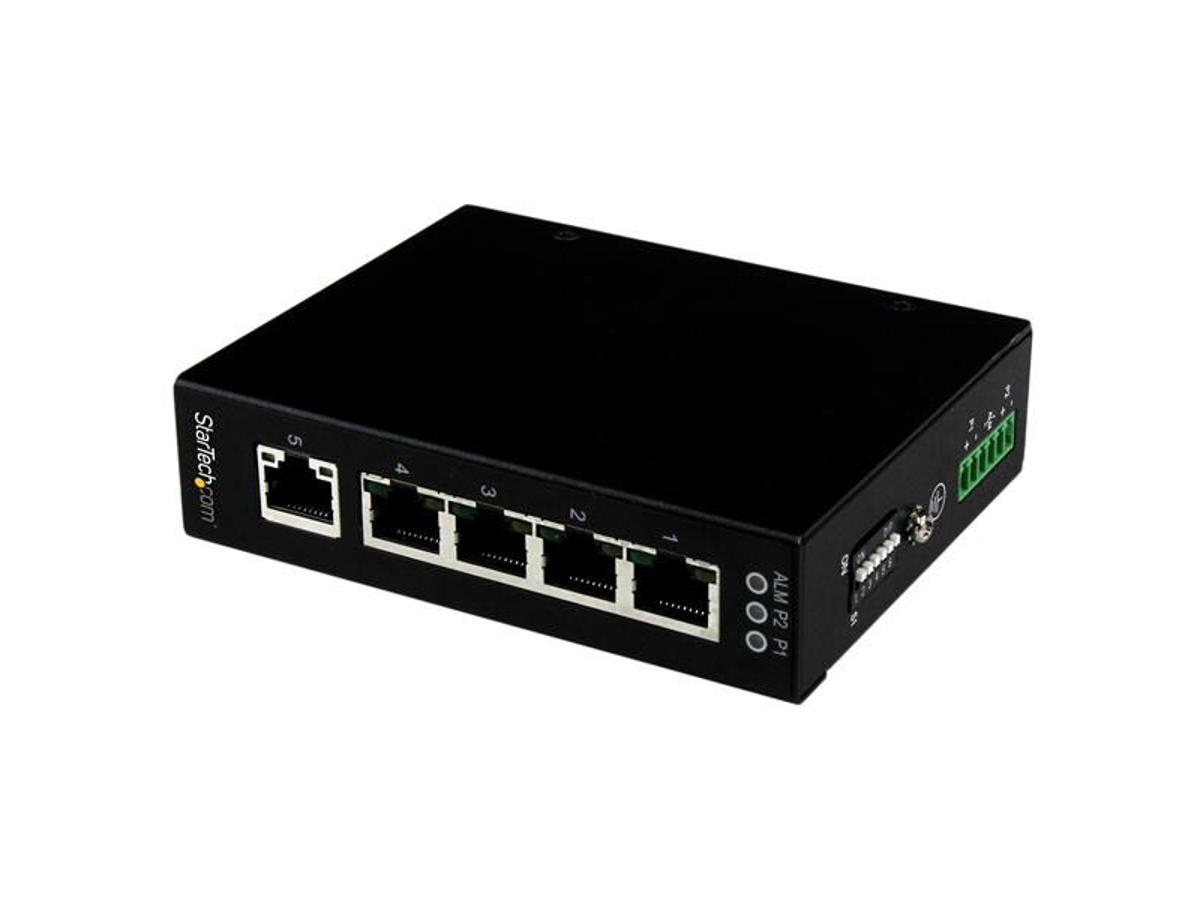

Network up to 5 Ethernet devices through a rugged, industrial Gigabit Ethernet switch - DIN / Wall Mountable
The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.
Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.
Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Seamless performance even in harsh industrial conditions, with an extended temperature range and an IP30-rated enclosure
- Maintain device operation during power disruptions, with redundant power inputs
- Install the switch exactly where you need it, using the included DIN Rail & wall-mount brackets -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u 10G understøttelse Ingen Fuld duplex Ja Link aggregering Ja Auto MDI/MDI-X Ja Dataoverførsel Switch kapacitet 2 Gbit/sek. Opbevar-og-frem Ja Jumbo Frames support Ja Design Produktfarve Sort Husmateriale Stål LED-indikatorer Aktivitet, Link, Strøm Kode for international beskyttelse (IP) IP30 Kan monteres på væggen Ja Præstation Maksimal kabellængde 100 m Bufferstørrelse 128 KB Strømstyring Indgangsspænding 12 - 58 V Strømforbrug (typisk) 3,63 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) -40 - 75 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Vægt & størrelser Bredde 89 mm Dybde 111 mm Højde 28 mm Vægt 328 g Emballage indhold Brugervejledning Ja Emballeringsdata Monteringssæt til væggen Ja Klemrække inkluderet Ja Monteringsbeslag inkluderet Ja Skruer inkluderet Ja DIN skinne inkluderet Ja Pakkebredde 139 mm Pakkedybde 176 mm Pakkehøjde 83 mm Pakkevægt 523 g Godkendelser Certificering CE, FCC, RoHS, REACH Logistik data Harmoniseret systemkode (HS) 85176990
