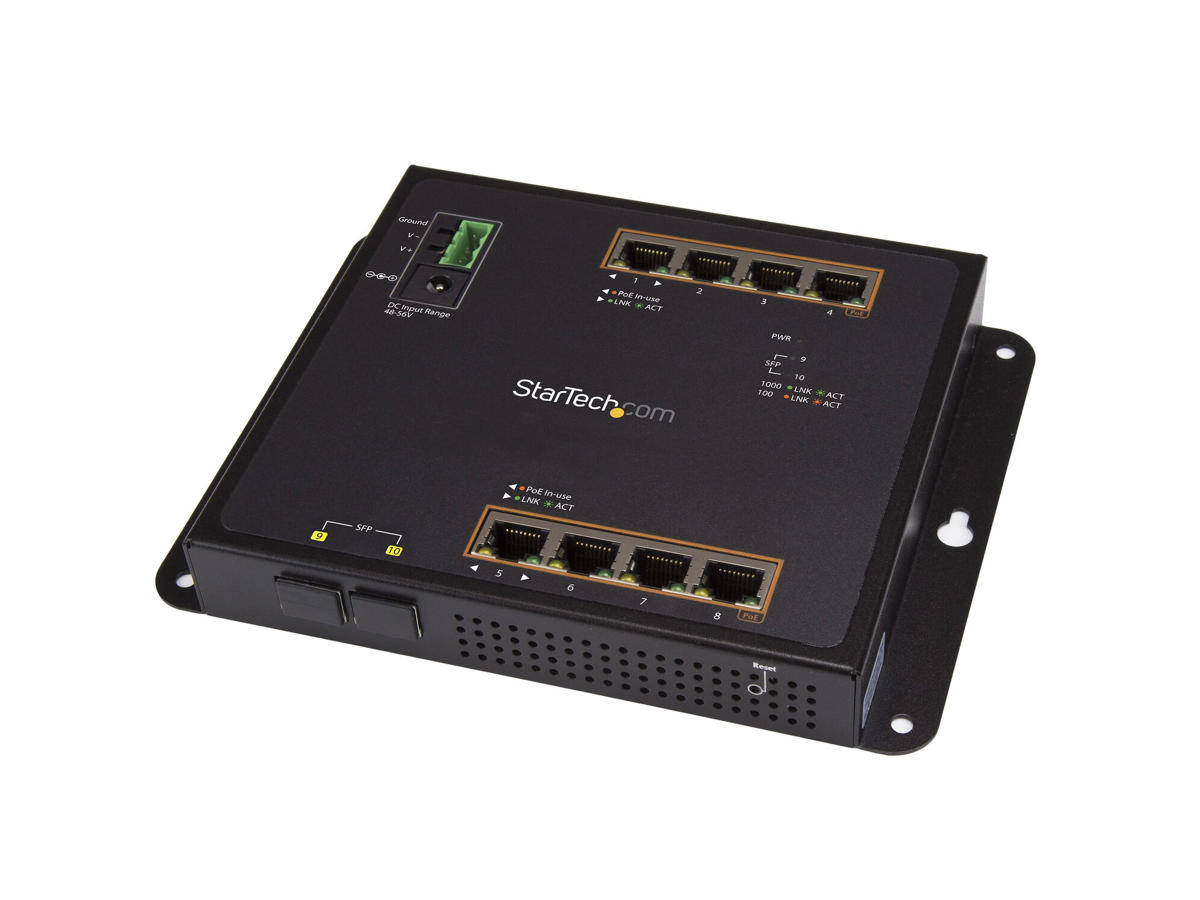

StarTech.com IES101GP2SFW netværksswitch Administreret L2 Gigabit Ethernet (10/100/1000) Strøm over Ethernet (PoE) Sort
Varenummer: IES101GP2SFW
.
DKK 5.950,00 / Stk
DKK 4.760,00 ekskl. moms
  •
StarTech.com IES101GP2SFW. Switch-type: Administreret, Switch lag: L2. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 8. Fuld duplex, Netværksstandarder: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Strøm over Ethernet (PoE). Kan monteres på væggen


Mere information

  • Add up to 10 different GbE devices to your network, using 8 RJ45 (PoE+) and 2 fiber-optic connections, with intelligent Layer 2 managementEasily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited.Expand your networkThis versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.Supports PoE+ for flexible useDual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).Wall-mountable with front accessWall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It’s ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.Efficient Layer 2 managementThe switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability.Rugged IP30 industrial designThis rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments.Reliable connection for seamless network performanceWith support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required.The IES101GP2SFW is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage

  • Administrationsfunktioner
    Switch-type Administreret
    Switch lag L2
    Servicekvalitet support (QoS) Ja
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 8
    Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
    Antal SFP modulslots 2
    Netværk
    Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G understøttelse Ingen
    Fuld duplex Ja
    Flowkontrol support Ja
    Link aggregering Ja
    Auto MDI/MDI-X Ja
    Spanning tree protokol Ja
    Vituelle LAN funktioner Tagged VLAN
    Dataoverførsel
    Opbevar-og-frem Ja
    Sikkerhed
    Adgangskontrolliste (ACL) Ja
    Design
    Stativ-montering Ingen
    Produktfarve Sort
    Husmateriale Stål
    LED-indikatorer Aktivitet, Link
    Kode for international beskyttelse (IP) IP30
    Kan monteres på væggen Ja
    Certificering CE, FCC, RoHS
    Præstation
    Maksimal kabellængde 100 m
    Bufferstørrelse 512 KB
    Maksimal dataoverførselshastighed 2000 Mbit/s
    Gennemsnitstid mellem fejl (MTBF) 100000 t
    Strømstyring
    Indgangsstrøm 1 A
    Indgangsspænding 12 - 48 V
    Strømstiktype Type M
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ja
    Power over Ethernet plus (PoE+) porte, antal 8
    Power over Ethernet (PoE) effekt pr. port 30 W
    Total Power over Ethernet (PoE) 200 W
    Driftsbetingelser
    Driftstemperatur (T-T) -40 - 75 °C
    Opbevaringstemperatur (T-T) -40 - 90 °C
    Relativ luftfugtighed ved drift (H-H) 5 - 95%
    Vægt & størrelser
    Bredde 178 mm
    Dybde 134 mm
    Højde 25 mm
    Vægt 618 g
    Emballeringsdata
    Hurtig start guide Ja
    Klemrække inkluderet Ja
    Pakkebredde 170 mm
    Pakkedybde 300 mm
    Pakkehøjde 90 mm
    Pakkevægt 900 g
    Logistik data
    Hovedkassens bredde (udvendigt) 325 mm
    Hovedkassens længde (udvendigt) 370 mm
    Hovedkassen højde (udvendigt) 470 mm
    Harmoniseret systemkode (HS) 85176990
    Produkter pr. hovedkasse (udvendigt) 10 stk
    Andre funktioner
    Klemrække port Ja
