Varenummer: DS52000
Mere information
-

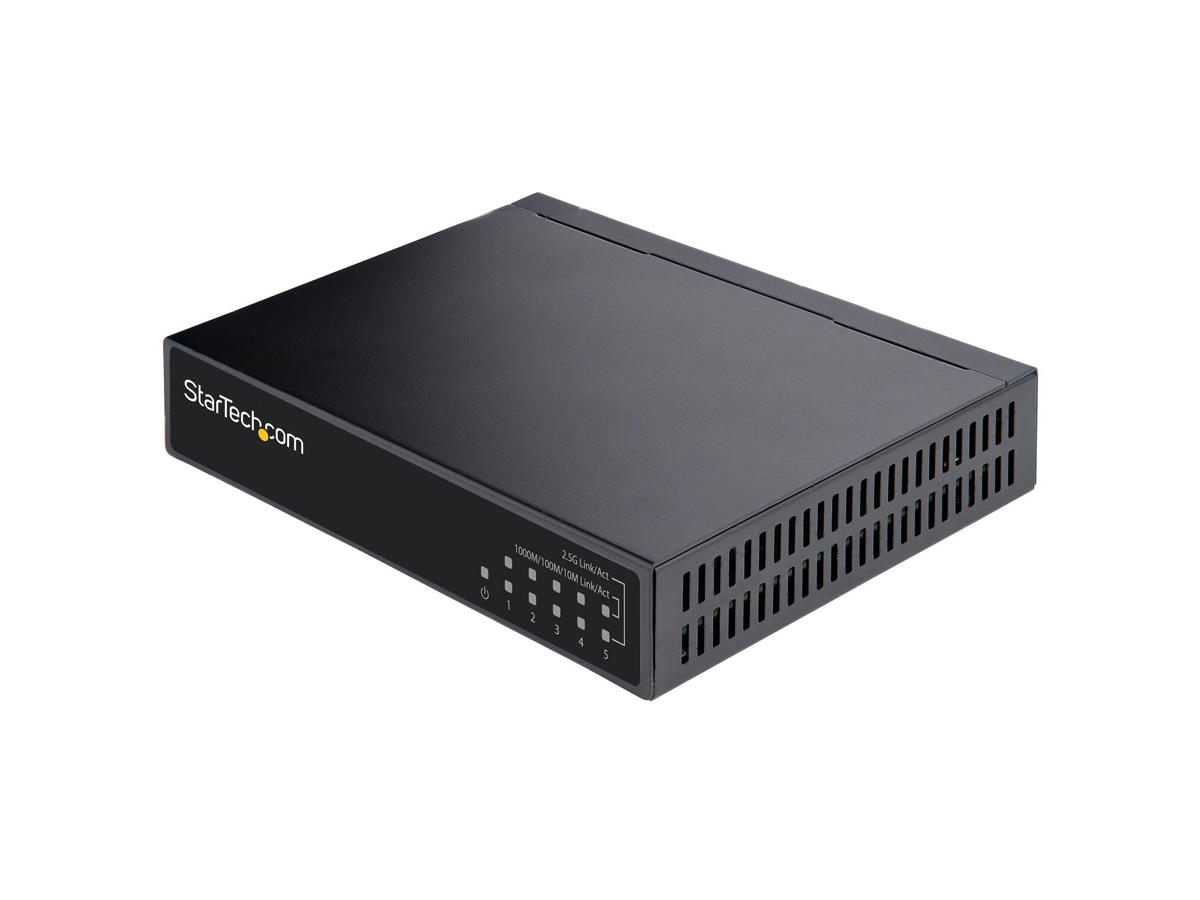

2.5G switch | Multi-Gigabit | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slot
The unmanaged network switch offers five multi-speed Ethernet ports (10/100/1000/2500 Mbps) in a compact and durable all-metal casing while remaining silent and energy-efficient (IEEE 802.3az). The network switch is the ideal solution to dramatically speed up your network to support 2.5GBASE-T, and being an unmanaged switch, you can set it up in no time.
Enhance your network
This network switch allows you to use existing Cat5e/Cat6/Cat6a cabling to increase the bandwidth to 2.5 Gbps, ideal for large file transfers, streaming, network sharing/storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility. You can also use it in combination with Wi-Fi 6 (802.11ax) wireless access points to expand your network range, bandwidth, and accessibility.
Secure and versatile
The 2.5G switch offers a security K-slot for more permanent and secure setups (cable not included). The unintrusive design and small dimensions (6.1x4.7x1.1 inch / 155x120x30 mm) make it easily adaptable to any deployment and has clear diagnostic LEDs that show the status of the devices at a glance. Additional features such as 9K jumbo frames, full-duplex, 16K MAC address table, QoS IEEE 802.1p, and wall mounting kit give you the flexibility to use it in a multitude of scenarios.
The DS52000 is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage -
Administrationsfunktioner Switch-type Ikke administreret Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype 2.5G Ethernet (100/1000/2500) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal 2,5G Ethernet-porte (kobber) 5 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 1000BASE-TX, 2500BASE-T Understøttede kabeltyper Cat5e, Cat6, Cat6a Fuld duplex Ja Auto MDI/MDI-X Ja Dataoverførsel Switch kapacitet 2,5 Gbit/sek. Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 9000 Design Stativ-montering Ingen Produktfarve Sort Husmateriale Stål LED-indikatorer Ja Kan monteres på væggen Ja Præstation Maksimal kabellængde 100 m Strømstyring Strømkilde Vekselstrøm/jævnstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Indgangsstrøm 0.5 A Udgangsspænding 12 V Udgangsstrøm 1 A Strømstiktype Type M Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -20 - 60 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Vægt & størrelser Bredde 120 mm Dybde 145 mm Højde 30 mm Vægt 600 g Emballage indhold Hurtig start guide Ja Emballeringsdata Monteringssæt til væggen Ja AC-adapter inkluderet Ja Pakkebredde 285 mm Pakkedybde 135 mm Pakkehøjde 70 mm Pakkevægt 700 g Godkendelser Compliance-certifikater CE, RoHS Logistik data Hovedkassens bredde (udvendigt) 305 mm Hovedkassens længde (udvendigt) 370 mm Hovedkassen højde (udvendigt) 290 mm Harmoniseret systemkode (HS) 85176990 Produkter pr. hovedkasse (udvendigt) 10 stk
