Varenummer: IESC1G80UP
Mere information
-

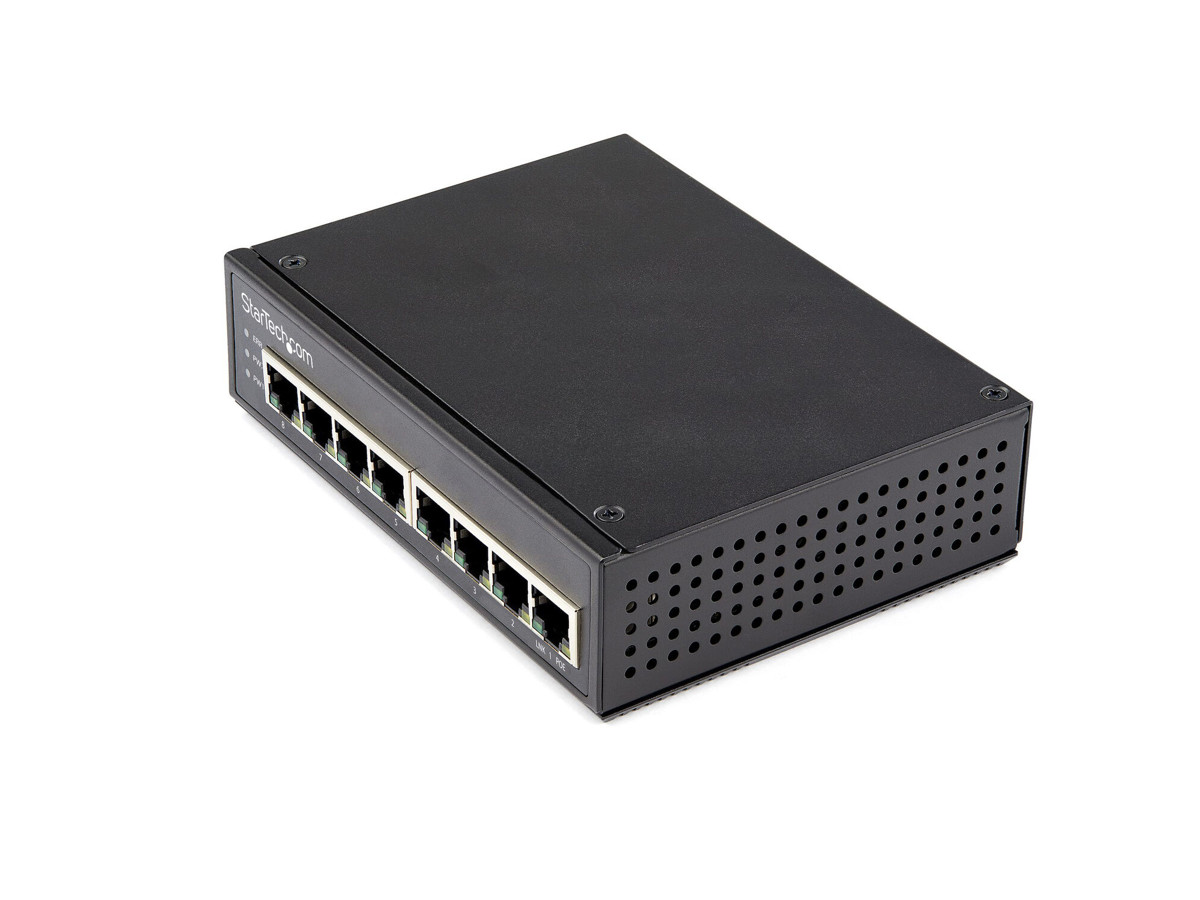

Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 8 Port
This industrial 8 port gigabit PoE switch features 30W of power and is designed to be installed in harsh environments and supports up to a total of 200W power outputs. Includes hardware for DIN rail or wall mounting.
For Demanding Environments Where No Fiber Connections Are Required
Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:
Cameras
Sensors
Wi-Fi Access Points
High total power budget with high PoE port count at a maximum of 30 watts per port, up to 200 watts max. Power provided in order of device connection; max 6 802.3at (30W) devices (180W total) at any time.
Truly Industrial for Devices That Must Function Under Harsh Conditions
Industrial features include:
Operating Temperature Range: -40 C to 75 C
IP-30 rated housing
Vibration, shock, and free-fall standard testing
This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 500,000+ hrs (Telcordia/Bellcore) at 50°C, for long-term reliability.
The StarTech.com Advantage
- POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
- Use with devices like cameras & access points using Cat 5e/6
- TECH SPECS: 8 port GbE PoE switch -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 8 Netværk Netværksstandarder IEEE 802.3af, IEEE 802.3at, IEEE 802.3x 10G understøttelse Ingen Understøttede kabeltyper Cat5e, Cat6 Fuld duplex Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Dataoverførsel Switch kapacitet 16000 Gbit/sek. Jumbo Frames support Ja Jumbo rammer 9000 Design Stativ-montering Ingen Produktfarve Sort Husmateriale Aluminium LED-indikatorer Ja Kode for international beskyttelse (IP) IP30 Kan monteres på væggen Ja DIN-skinne montering Ja Præstation Bufferstørrelse 128 KB Gennemsnitstid mellem fejl (MTBF) 693764 t Strømstyring DC indgangsspænding 48 - 56 V Strømforbrug (maks.) 206 W Beskyttelse ved overspænding Ja Overspændingsbeskyttelse 2 kV Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 8 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 200 W Andre funktioner Klemrække port Ja Vægt & størrelser Bredde 105 mm Dybde 142 mm Højde 39,6 mm Vægt 536 g Emballage indhold Hurtig start guide Ja Emballeringsdata Klemrække inkluderet Ja Pakkebredde 211 mm Pakkedybde 162 mm Pakkehøjde 64 mm Pakkevægt 781 g Godkendelser Certificering CE, FCC, UL, ROhS Logistik data Hovedkassens bredde (udvendigt) 355 mm Hovedkassens længde (udvendigt) 345 mm Hovedkassen højde (udvendigt) 225 mm Harmoniseret systemkode (HS) 85176990 Produkter pr. hovedkasse (udvendigt) 10 stk
