Varenummer: IES1G52UP12V
Mere information
-

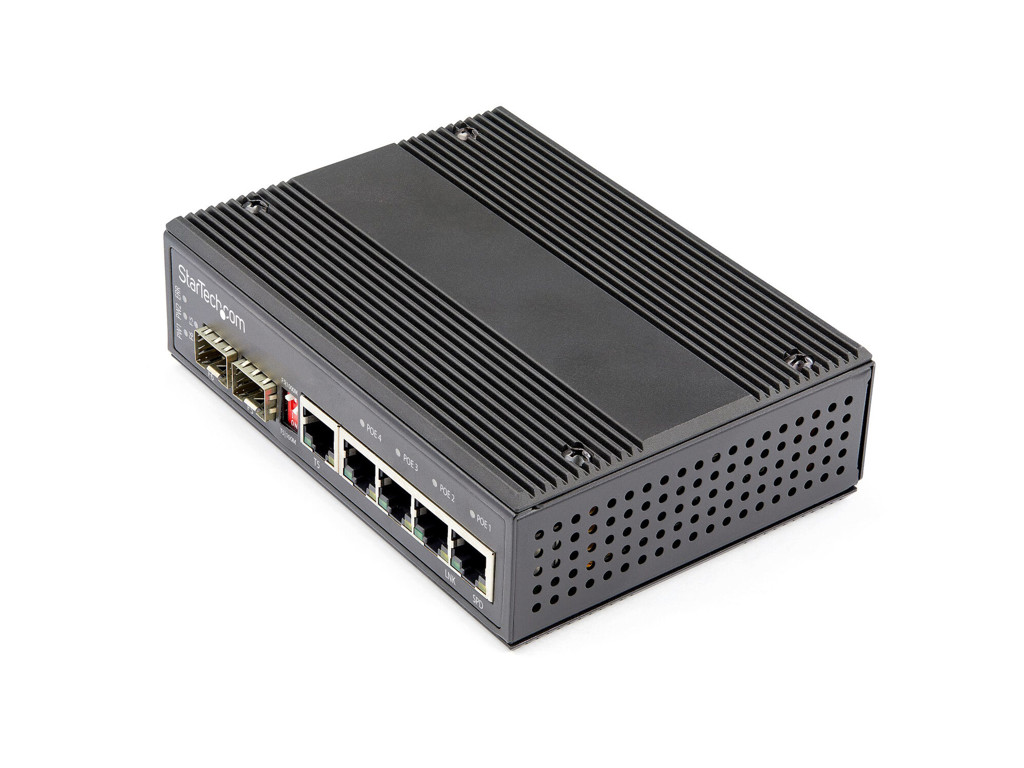

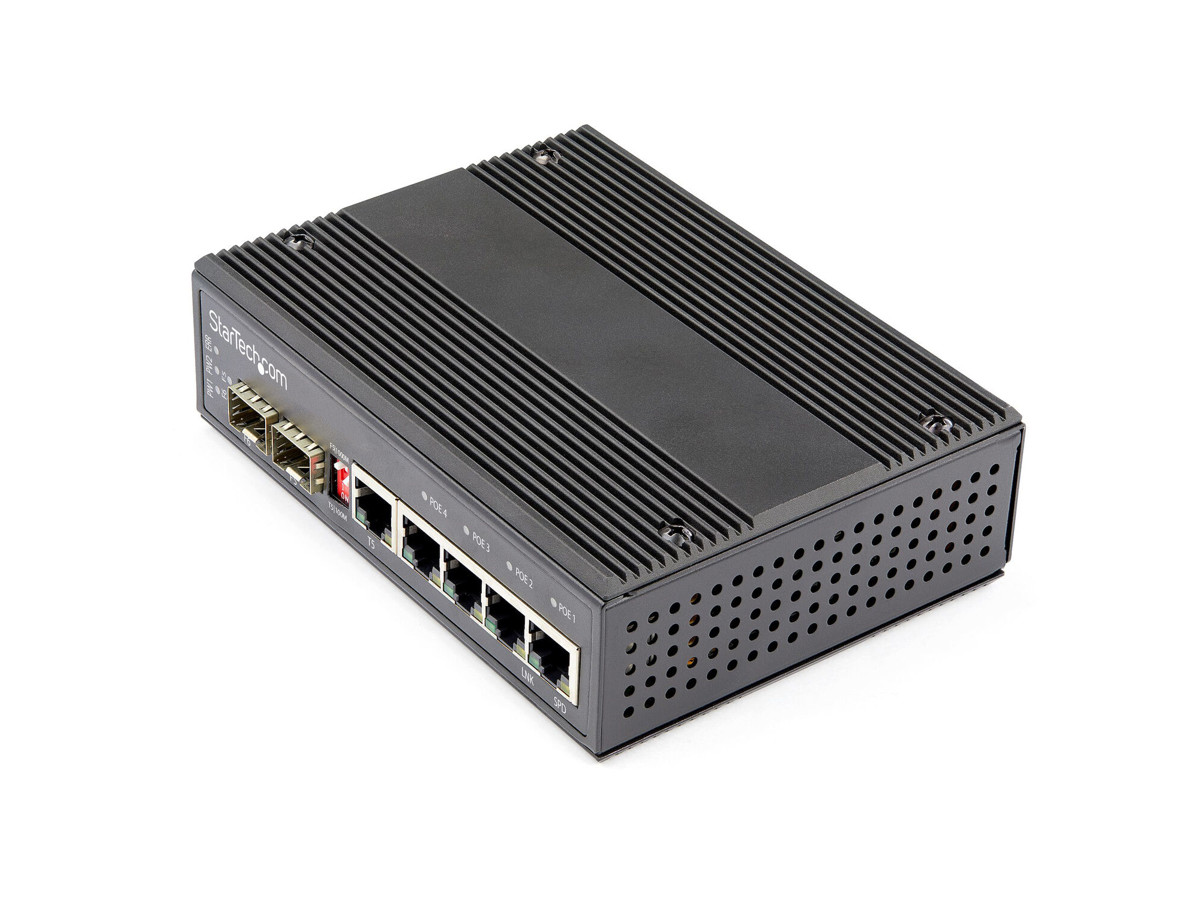

Rugged Ethernet Switch | 5 RJ45 (4 PoE) | 2 SFP Slots | 30W PoE+ | 12V-48V DC
Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.
Power Over Ethernet & Low Voltage
Ideal for powering PoE devices in situations where a traditional power source is not available; it accepts power as low as 12VDC for applications such as transportation (auto/bus/rail) and solar. PoE output is boosted to PoE/PoE+ standards (IEEE 802.3af/at, 55V) in applications where non-standard 12V (or higher) power sources are available.
With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
• Cameras
• Sensors
• Wi-Fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Flexible Power Input & Low Voltage
Power input flexibility between 12/24/48/56V DC and low voltage DC inputs reduces the complexities of installation by avoiding additional in-line devices to boost power before it reaches the switch.
This unique switch allows for 5x RJ-45 ports (4x PoE) to be active + 1 SFP, or 4 x RJ-45 (all PoE) + 2 SFP, for 6 device connections total.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32
Includes an exterior aluminum heat sink for superior passive cooling; 600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.
Dual Power Inputs
Dual power inputs provide redundancy. Accepts dual terminal block power, allowing the product to be hardwired from multiple power sources for high availabilty applications.
The IES1G52UP12V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP modulslots 2 Netværk Netværksstandarder IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-T, 1000BASE-T Fuld duplex Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja Dataoverførsel Switch kapacitet 12 Gbit/sek. Jumbo Frames support Ja Jumbo rammer 9000 Protokoller Understøttede netværksprotokoller CSMA/CD Design Stativ-montering Ingen Produktfarve Sort Husmateriale Aluminium, Stål LED-indikatorer Aktivitet, Link, PoE, Strøm Kode for international beskyttelse (IP) IP30 Kan monteres på væggen Ja DIN-skinne montering Ja Sikkerhed EN60950-1 Præstation Bufferstørrelse 128 KB Gennemsnitstid mellem fejl (MTBF) 693764 t Strømstyring Beskyttelse ved overspænding Ja Overspændingsbeskyttelse 2 kV Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 4 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 120 W Andre funktioner Klemrække port Ja Driftsbetingelser Driftstemperatur (T-T) -40 - 75 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Vægt & størrelser Bredde 105 mm Dybde 142 mm Højde 43 mm Vægt 701,4 g Emballage indhold Hurtig start guide Ja Emballeringsdata Klemrække inkluderet Ja Pakkebredde 211 mm Pakkedybde 162 mm Pakkehøjde 64 mm Pakkevægt 946,4 g Godkendelser Certificering CE, RoHS, FCC Logistik data Hovedkassens bredde (udvendigt) 355 mm Hovedkassens længde (udvendigt) 345 mm Hovedkassen højde (udvendigt) 225 mm Harmoniseret systemkode (HS) 85176990 Produkter pr. hovedkasse (udvendigt) 10 stk
