Varenummer: IES1G52UPDIN
Mere information
-

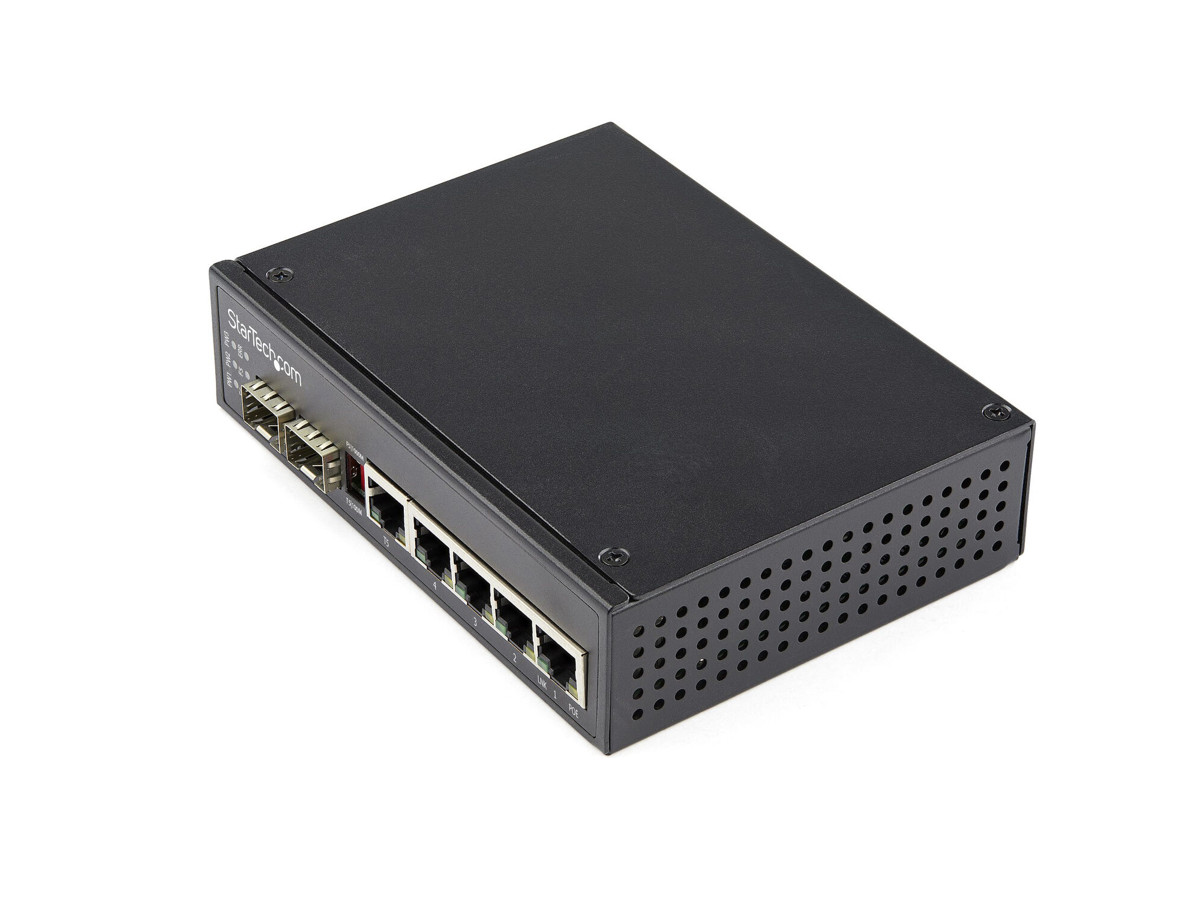

Rugged Ethernet Switch | 5 RJ45 (4 PoE) | 2 SFP Slots | 30W PoE+ | 48V DC | DIN Rail Mountable
Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.
Power Over Ethernet & 48V Voltage
With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
• Cameras
• Sensors
• Wi-Fi access points
Uses Cat 5e (or higher rated) Ethernet cabling.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.
Dual Power Inputs
Dual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP modulslots 2 Netværk Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 10BASE-TX, 1000BASE-T, 1000BASE-TX Fuld duplex Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja Dataoverførsel Switch kapacitet 12 Gbit/sek. Jumbo Frames support Ja Jumbo rammer 9000 Pakke bufferlager 1 MB Protokoller Understøttede netværksprotokoller CSMA/CD Design Stativ-montering Ingen Produktfarve Sort Husmateriale Stål LED-indikatorer Link, PoE, Strøm Kode for international beskyttelse (IP) IP30 Kan monteres på væggen Ja DIN-skinne montering Ja Sikkerhed EN60950-1, MET (UL) 60950-1 Præstation Gennemsnitstid mellem fejl (MTBF) 525058 t Strømstyring DC indgangsspænding 48 - 56 V Strømforbrug (maks.) 126 W Beskyttelse ved overspænding Ja Overspændingsbeskyttelse 2 kV Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 4 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 120 W Andre funktioner Klemrække port Ja Driftsbetingelser Driftstemperatur (T-T) -40 - 75 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Vægt & størrelser Bredde 105 mm Dybde 142 mm Højde 36,2 mm Vægt 492 g Emballage indhold Hurtig start guide Ja Emballeringsdata Klemrække inkluderet Ja Pakkebredde 211 mm Pakkedybde 162 mm Pakkehøjde 64 mm Pakkevægt 737 g Godkendelser Certificering CE, RoHS, FCC, UL Logistik data Hovedkassens bredde (udvendigt) 355 mm Hovedkassens længde (udvendigt) 345 mm Hovedkassen højde (udvendigt) 225 mm Harmoniseret systemkode (HS) 85176990 Produkter pr. hovedkasse (udvendigt) 10 stk
