Varenummer: I51G-ETHERNET-SWITCH
Mere information
-
Expand your network connectivity with simple plug-and-play setup

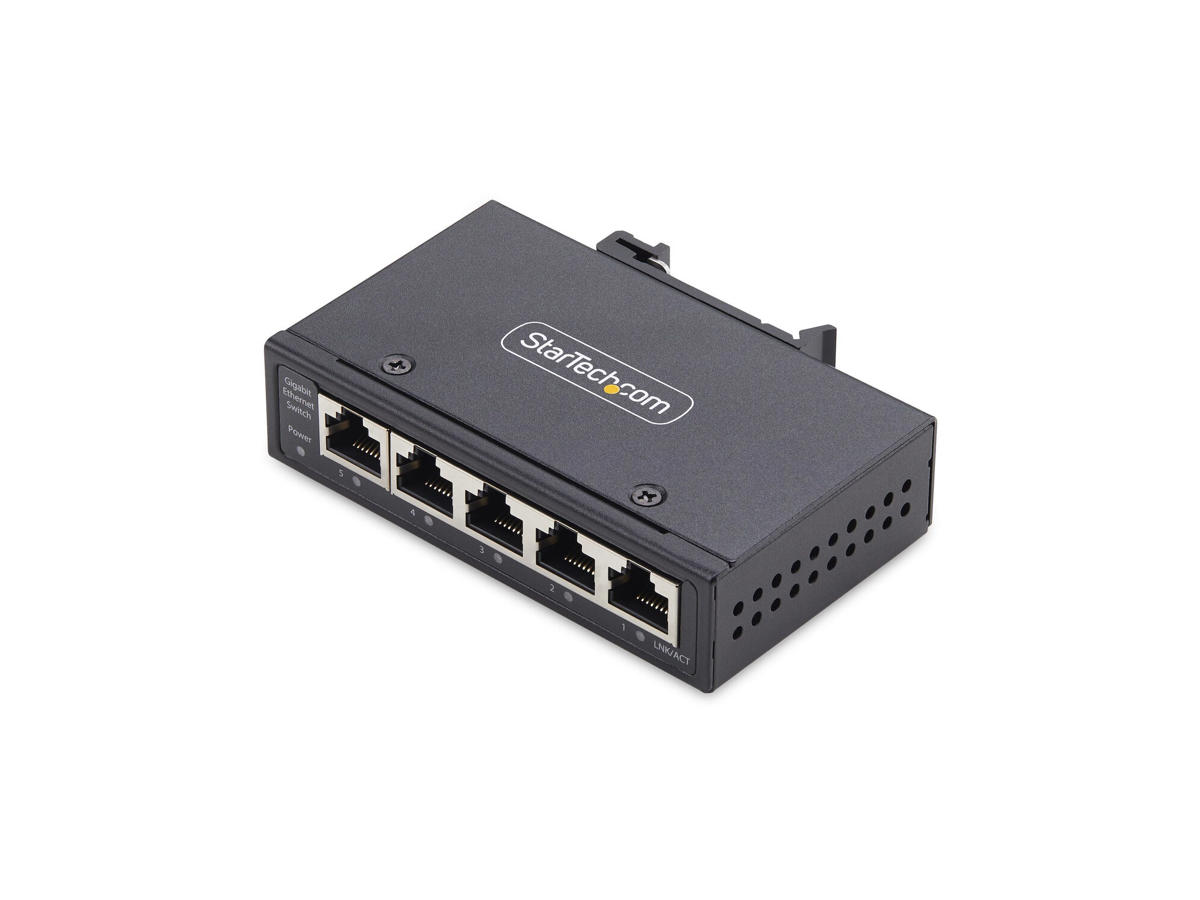

This unmanaged, fanless network switch delivers silent, energy-efficient performance with five multi-speed Ethernet ports (10/100/1000 Mbps). Its durable all-metal casing ensures long-lasting reliability.
Enhance Your Network
Expand your network connectivity with simple plug-and-play setup. This network switch is ideal for large file transfers, streaming, network sharing and storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility.
Rugged TAA Switch
This TAA compliant unmanaged switch features an unintrusive design and small dimensions (3.9x2.3x1 inch / 100.5x60x 25.5mm). Key features such as 9K Jumbo Frames, 3-Pin Terminal Block Power Input, QoS IEEE 802.1p, and the included DIN Rail and Wall Mounting Kits give you the flexibility to use it in a multitude of scenarios. The rugged metal enclosure is IP30 rated to prevent objects larger than 2.5mm from getting inside and has an extended operating temperature range of -40°F-167°F (40°C-75°C). The clear diagnostic LEDs show the status of the devices at a glance.
Designed for Demanding Environments
This network switch is deal for industrial settings and centralized control stations where device reliability is essential and environmental conditions fluctuate. The compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance.
The StarTech.com Advantage -
Administrationsfunktioner Switch-type Ikke administreret Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 5 Strømstik Terminal block (3-pin) Netværk Netværksstandarder IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 100BASE-TX, 1000BASE-T Fuld duplex Ja Auto MDI/MDI-X Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Dataoverførsel Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 9000 Design Produktfarve Sort Husmateriale Metal LED-indikatorer Ja Kode for international beskyttelse (IP) IP30 Kan monteres på væggen Ja DIN-skinne montering Ja Præstation Gennemsnitstid mellem fejl (MTBF) 556710 t Strømstyring Strømforsyning inkluderet Ja Indgangsspænding 9 - 60 V Driftsbetingelser Driftstemperatur (T-T) -40 - 75 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Vægt & størrelser Bredde 60 mm Dybde 100 mm Højde 26 mm Vægt 221,7 g Emballage indhold Hurtig start guide Ja Emballeringsdata Klemrække inkluderet Ja Monteringsbeslag inkluderet Ja DIN skinne inkluderet Ja Pakkebredde 107 mm Pakkedybde 159 mm Pakkehøjde 55 mm Pakkevægt 293,7 g Godkendelser Compliance-certifikater RoHS, Lov om handelsaftaler (TAA) Logistik data Hovedkassens bredde (udvendigt) 355 mm Hovedkassens længde (udvendigt) 295 mm Hovedkassen højde (udvendigt) 335 mm Produkter pr. hovedkasse (udvendigt) 30 stk
