Varenummer: TL-SG3428
Mere information
-
Convenient Gigabit Switch for a Complete Omada Network

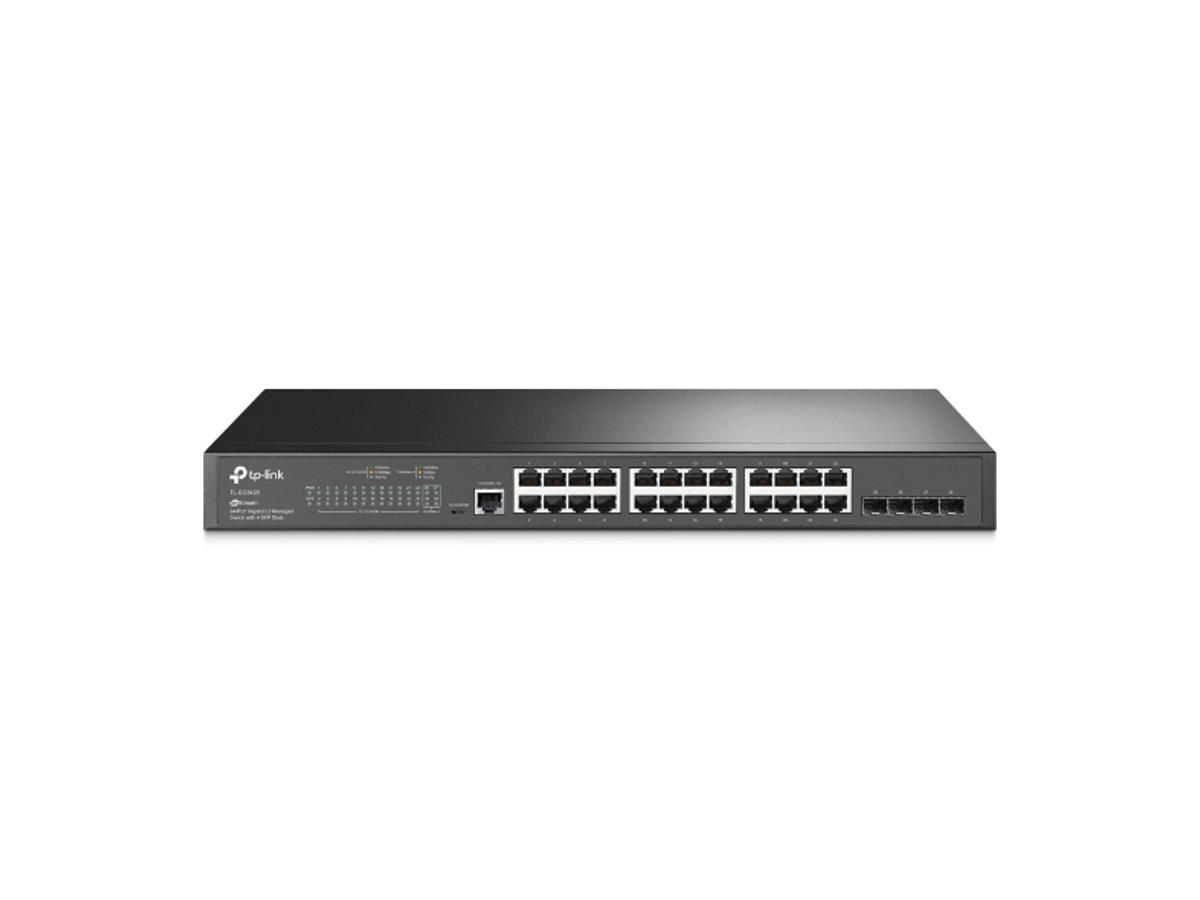

JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
Software-Defined Networking (SDN) with Cloud Access
Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. Also, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
Abundant L2 and L2+ Features
A complete lineup of L2 features is supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Enterprise Level Management Features
Easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps on abnormal events. -
Administrationsfunktioner Switch-type Administreret Switch lag L2/L3 Servicekvalitet support (QoS) Ja Webbaseret administration Ja Cloud-administreret Ja ARP inspektion Ja Konfigurerer lokationsindstillinger (CLI) Ja System hændelseslog Ja MIB support Yes Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 24 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 24 Antal SFP modulslots 4 Port til konsol RJ-45/Micro-USB Netværk Netværksstandarder IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z 10G understøttelse Ingen Port-spejlning Ja IP-routing Ja Politikbaseret routing Ja Flowkontrol support Ja Link aggregering Ja Broadcast stormkontrol Ja Begrænsning af hastighed Ja Spanning tree protokol Ja Head-of-line (HOL) blokering Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s IPv4-ruter 48 IPv6-ruter 48 VLAN understøttelse Ja Vituelle LAN funktioner Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN Antal VLAN'er 4000 Dataoverførsel MAC adresselabel 16000 entries Switch kapacitet 56 Gbit/sek. Hastighed for videresendelse 41,66 Mpps Opbevar-og-frem Ja Statisk rute Ja Stastiske routere 48 Jumbo Frames support Ja Jumbo rammer 9000 Pakke bufferlager 12 MB Sikkerhed DHCP funktioner DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping Adgangskontrolliste (ACL) Ja IGMP snooping Ja Filtrering af MAC-adresser Ja Statisk port, sikkerhed Ja SSH/SSL support Ja Loop beskyttelse Ja BPDU filtrering/beskyttelse Ja IP-MAC-portbinding Ja Godkendelse MAC-baseret godkendelse, Portbaseret godkendelse Godkendelsestype AAA, RADIUS, TACACS+ Multicast funktioner Multicast-understøttelse Ja Multicast Listener Discovery (MLD) snooping Y Protokoller Administrationsprotokoller SNMPv1/v2c/v3, SNTP GARP VLAN registreringsprotokol (GVRP) Ja IPv4 & IPv6 funktioner IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort LED-indikatorer Ja Antal blæsere 0 blæser(e) Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ingen Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (maks.) 19,22 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 65,58 BUT/t Vægt & størrelser Bredde 440 mm Dybde 180 mm Højde 44 mm Emballage indhold Kabler inkluderet LAN (RJ-45) Hurtig start guide Ja Emballeringsdata Pakkebredde 528 mm Pakkedybde 250 mm Pakkehøjde 80 mm Pakkevægt 2,77 kg Logistik data Harmoniseret systemkode (HS) 85176990
