2.5 Gigabit High-Speed Network

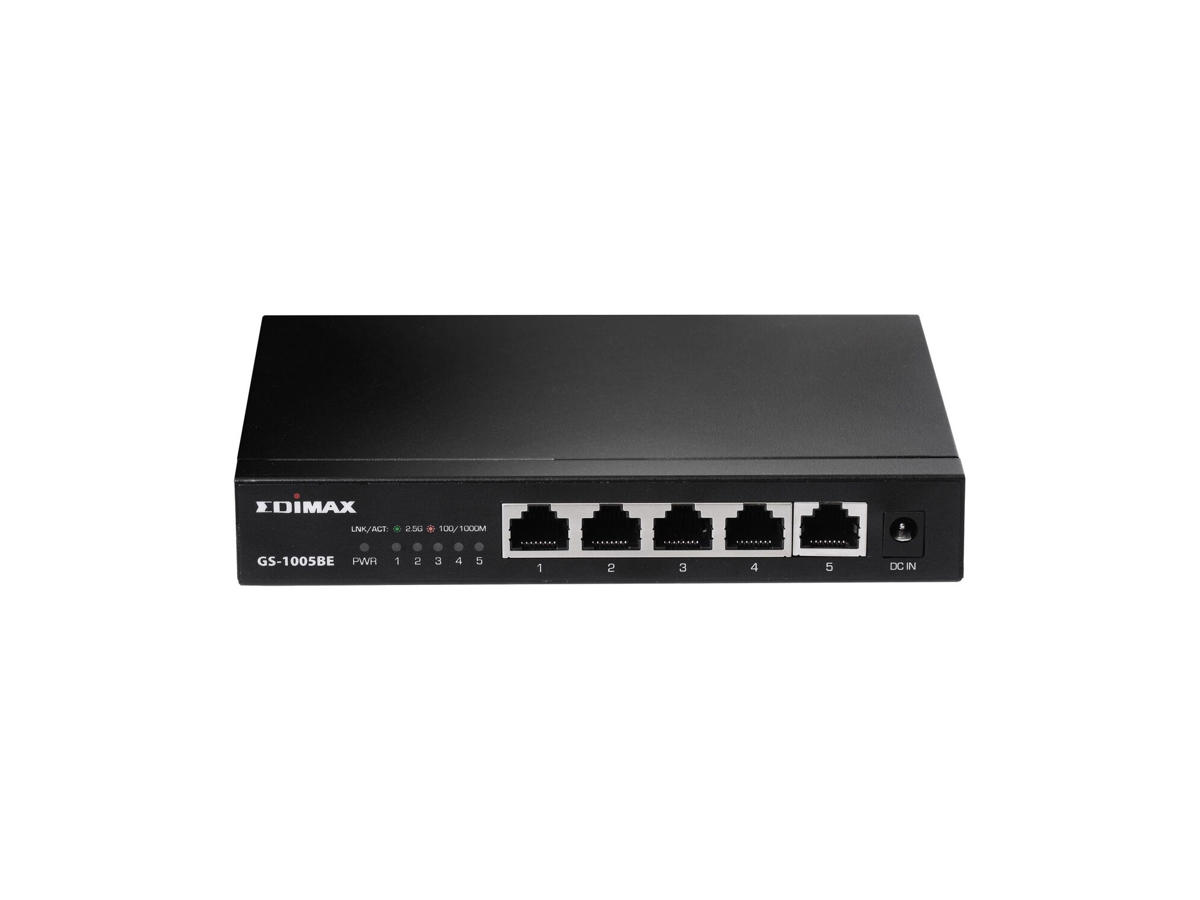

With 2.5 Gigabit speed, the GS-1005BE brings high-flexibility and high-bandwidth connectivity to servers, workstations and other attached devices. It enables you to save time when transferring large files. 12K jumbo frames are also supported to improve network utilization in large files transfer.
Keep Your Current Network Infrastructure
Just plug the Ethernet enabled device into the GS-1005BE . It doubles the network bandwidth while leveraging existing CAT-5E cabling infrastructure with no additional cables, software setup or configuration required.
High Performance and Reliable Connection
Offering ultra-high performance for each device connected to your network, with features such as IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Loop Detection, Store-and-Forward Architecture and more.
Quiet Fanless, Flexible Wall-Mount Design
Flexible deployment options for desktop or wall-mount with quiet fanless, durable metal case design to meet the network environment requirement.
Energy Efficient and Power Saving
To comply with the IEEE802.3az Energy Efficient Ethernet standard, the GS-1005BE provides power-saving functionality to reduce energy consumption and save costs. Featuring Inactive Link Detection, inactive devices without power delivery and Cable Length Detection.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Switch lag | L2 |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 5 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (kobber) porte, antal | 5 |
Netværk | |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-T, 100BASE-TX |
Understøttede kabeltyper | Cat5e |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Auto MDI/MDI-X | Ja |
Ethernet LAN-datahastigheder | 10,100,1000,2500 Mbit/s |
Auto-forhandling | Ja |
Aktiv link opdagelse | Ja |
Kabellængde opdagelse | Ja |
Dataoverførsel | |
MAC adresselabel | 16384 entries |
Switch kapacitet | 25 Gbit/sek. |
Hastighed for videresendelse | 18,6 Mpps |
Opbevar-og-frem | Ja |
Jumbo Frames support | Ja |
Jumbo rammer | 12000 |
Design | |
Produktfarve | Sort |
Husmateriale | Metal |
LED-indikatorer | Aktivitet, Link, Strøm |
Certificering | FCC, CE |
Præstation | |
Ventilatorfri | Ja |
Tekniske detaljer | |
Compliance-certifikater | CE |
Strømstyring | |
Strømforsyning inkluderet | Ja |
DC indgangsspænding | 12 V |
Indgangsstrøm | 1 A |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Vægt & størrelser | |
Bredde | 160 mm |
Dybde | 110 mm |
Højde | 26 mm |
Vægt | 446 g |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
