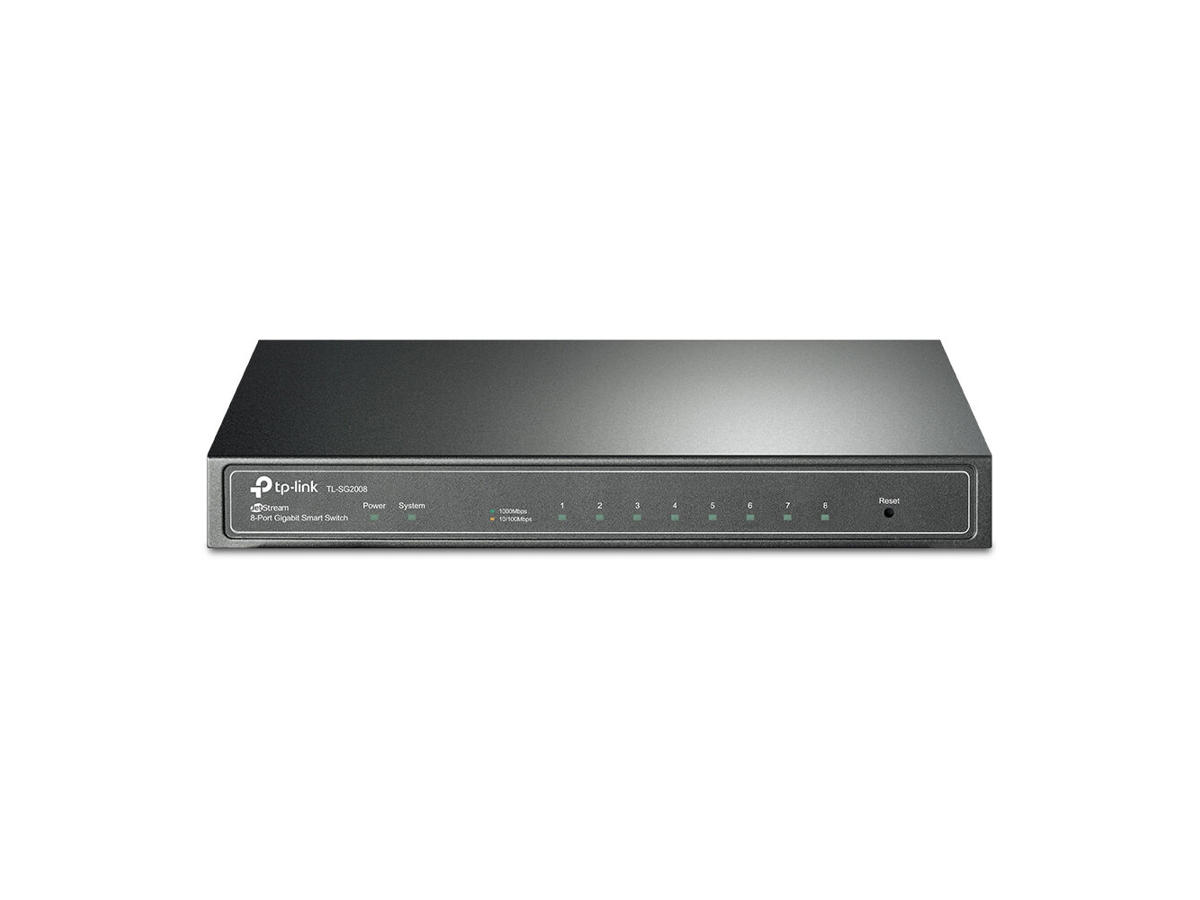

TP-Link TL-SG2008 Administreret L2 Gigabit Ethernet (10/100/1000) Sort
Varenummer: TL-SG2008 V1
.
DKK 831,25 / Stk
DKK 665,00 ekskl. moms
  •
TP-Link TL-SG2008. Switch-type: Administreret, Switch lag: L2. Basis omskiftning RJ-45 Ethernet porttype: Gigabit Ethernet (10/100/1000), Basis omskiftning RJ-45 Ethernet porte, antal: 8. Fuld duplex. MAC adresselabel: 8000 entries, Switch kapacitet: 16 Gbit/sek.. Netværksstandarder: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE...


Mere information

  • What This Product Does
    TP-LINK Gigabit Smart Switch TL-SG2008 is equipped with 8 gigabit RJ45 ports. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.
    TP-LINK’s 8-Port Gigabit Smart Switch TL-SG2008 is especially designed for the small and medium business networks that require efficient network management. TL-SG2008 comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What’s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.

    Advanced QoS Features
    To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.

    Abundant Layer 2 Features
    For more application of layer 2 switches, TL-SG2008 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP; Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

    Enterprise Level Management Features
    TL-SG2008 is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.

  • Administrationsfunktioner
    Switch-type Administreret
    Switch lag L2
    Servicekvalitet support (QoS) Ja
    Webbaseret administration Ja
    System hændelseslog Ja
    MIB support Y
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 8
    Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000)
    Antal installerede SFP moduler 0
    Antal installerede SFP+ moduler 0
    Gigabit Ethernet (kobber) porte, antal 8
    Netværk
    Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
    10G understøttelse Ingen
    Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T
    Understøttede kabeltyper Cat3, Cat4, Cat5, Cat5e
    Port-spejlning Ja
    Fuld duplex Ja
    Halv dupleks Ja
    Flowkontrol support Ja
    Link aggregering Ja
    Broadcast stormkontrol Ja
    Begrænsning af hastighed Ja
    Spanning tree protokol Ja
    VLAN understøttelse Ja
    Vituelle LAN funktioner Multicast VLAN, Tagged VLAN, Voice VLAN
    Antal VLAN'er 512
    Dataoverførsel
    MAC adresselabel 8000 entries
    Switch kapacitet 16 Gbit/sek.
    Hastighed for videresendelse 11,9 Mpps
    Jumbo Frames support Ja
    Jumbo rammer 9216
    Pakke bufferlager 4 MB
    Sikkerhed
    DHCP funktioner DHCP client
    Adgangskontrolliste (ACL) Ja
    IGMP snooping Ja
    Sikkerhedsalgoritmer SSH, SSH-2, SSL/TLS
    SSH/SSL support Ja
    Multicast funktioner
    Multicast-understøttelse Ja
    Design
    Produktfarve Sort
    LED-indikatorer Ja
    Præstation
    Ventilatorfri Ja
    Strømstyring
    Strømkilde Vekselstrøm
    Strømforsyning inkluderet Ja
    Vekselstrømsindgangsspænding 100 - 240 V
    Vekselstrømsindgangsfrekvens 50 - 60 Hz
    Strømforbrug (maks.) 6,42 W
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ingen
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Opbevaringstemperatur (T-T) -40 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 10 - 90%
    Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
    Vægt & størrelser
    Bredde 209 mm
    Dybde 126 mm
    Højde 26 mm
    Emballage indhold
    Kabler inkluderet Vekselstrøm
    Brugervejledning Ja
    Emballeringsdata
    Pakkebredde 223 mm
    Pakkedybde 280 mm
    Pakkehøjde 68 mm
    Pakkevægt 930 g
    Godkendelser
    Certificering CE, FCC, RoHS
