Varenummer: TL-SF1009P
Mere information
-

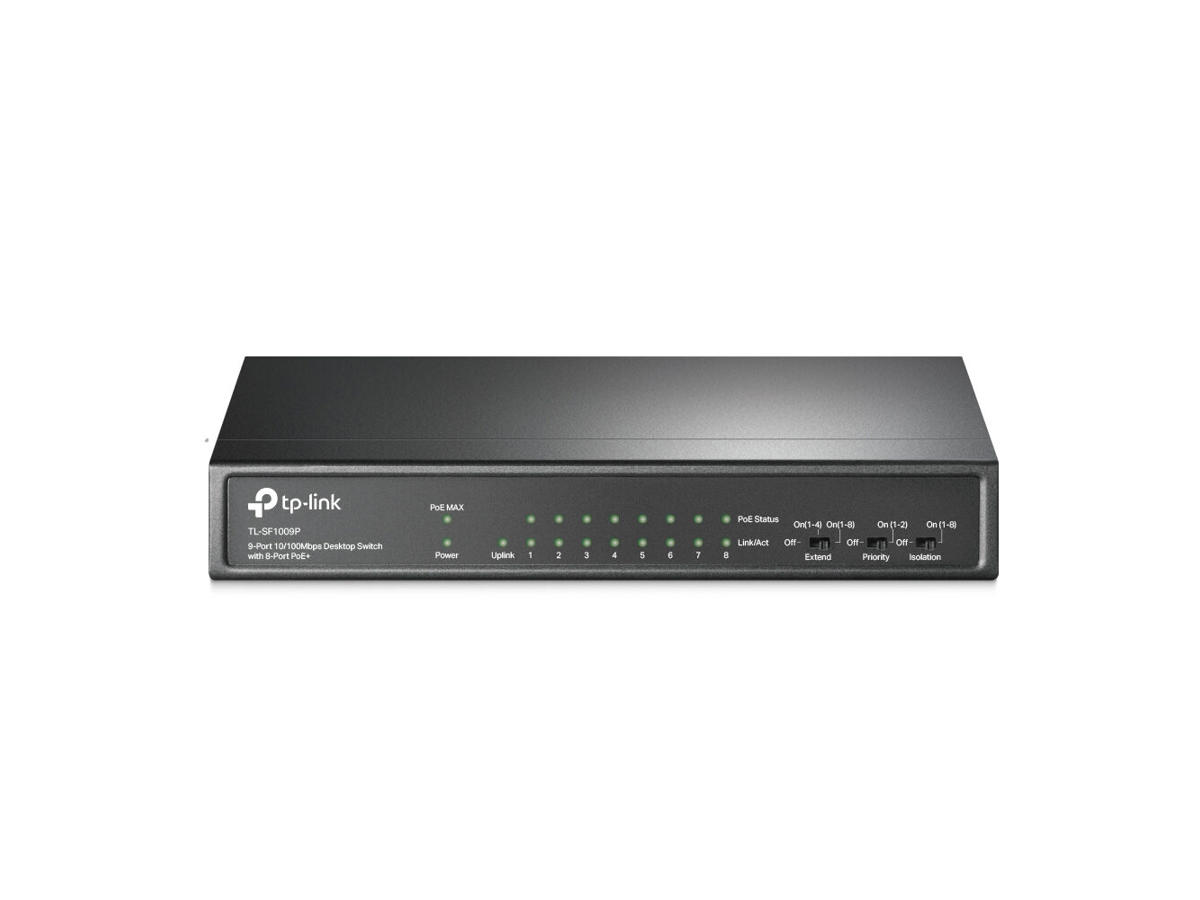

Professional 9-Port Unmanaged Switch with 8 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Ideal for IP Surveillance
—Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.
Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on. -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 9 Basis omskiftning RJ-45 Ethernet porttype Fast Ethernet (10/100) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Fast Ethernet (kobber) porte, antal 9 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX Understøttede kabeltyper Cat3, Cat4, Cat5, Cat5e Fuld duplex Ja Halv dupleks Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja MAC-adresse auto-indlæring understøttet Ja MAC-adresse auto-forældelse understøttet Ja Dataoverførsel MAC adresselabel 2000 entries Switch kapacitet 1,6 Gbit/sek. Hastighed for videresendelse 1,3392 Mpps Opbevar-og-frem Ja Design Stativ-montering Ingen Stabelbar Ingen Produktfarve Sort Husmateriale Metal LED-indikatorer Aktivitet, Link, PoE, Strøm Kan monteres på væggen Ja Præstation Ventilatorfri Ja Strømstyring Strømkilde DC/PoE Strømforsyning inkluderet Ingen Vekselstrømsindgangsspænding 220 V Vekselstrømsindgangsfrekvens 50 Hz DC indgangsspænding 53.5 V Indgangsstrøm 1.31 A Strømforbrug (maks.) 77,08 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 8 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 65 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 262,84 BUT/t Vægt & størrelser Bredde 171 mm Dybde 98 mm Højde 27 mm Emballage indhold Brugervejledning Ja Emballeringsdata AC-adapter inkluderet Ja Pakketype Kasse Pakkebredde 223 mm Pakkedybde 280 mm Pakkehøjde 68 mm Pakkevægt 980 g Godkendelser Compliance-certifikater Federal Communications Commission (FCC), CE, RoHS Certificering FCC, CE, RoHS Logistik data Harmoniseret systemkode (HS) 85176990 Bæredygtighed Overholdelse af bæredygtighed Ja
