Varenummer: TL-SG1210MPE
Mere information
-
What This Product Does

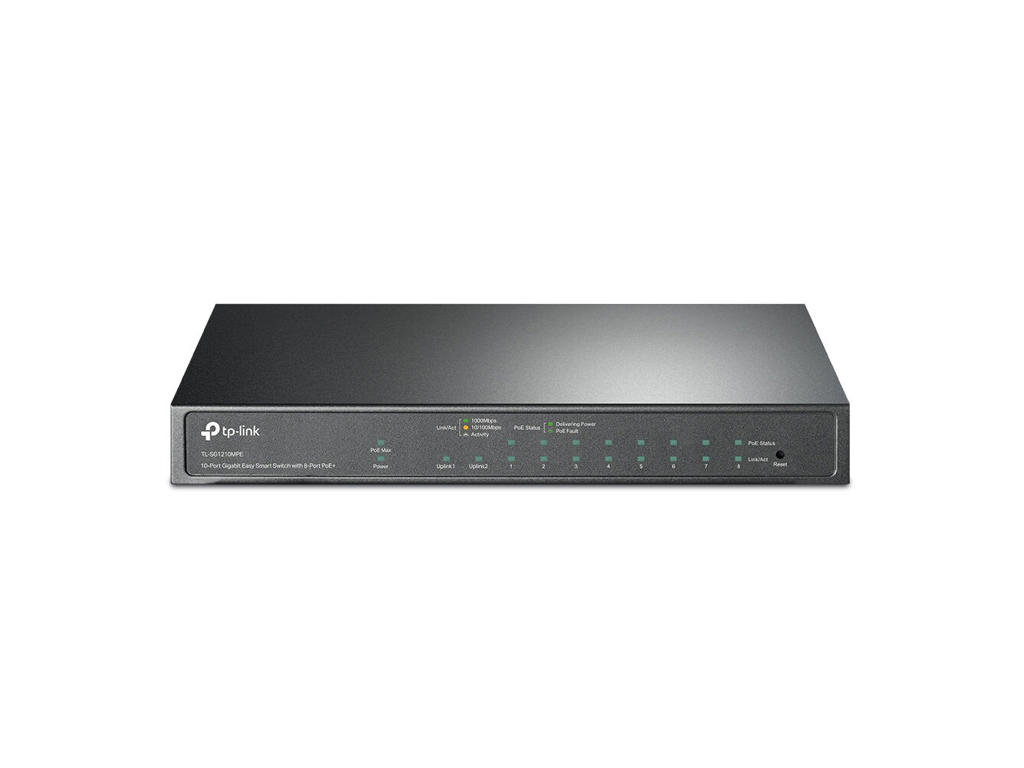

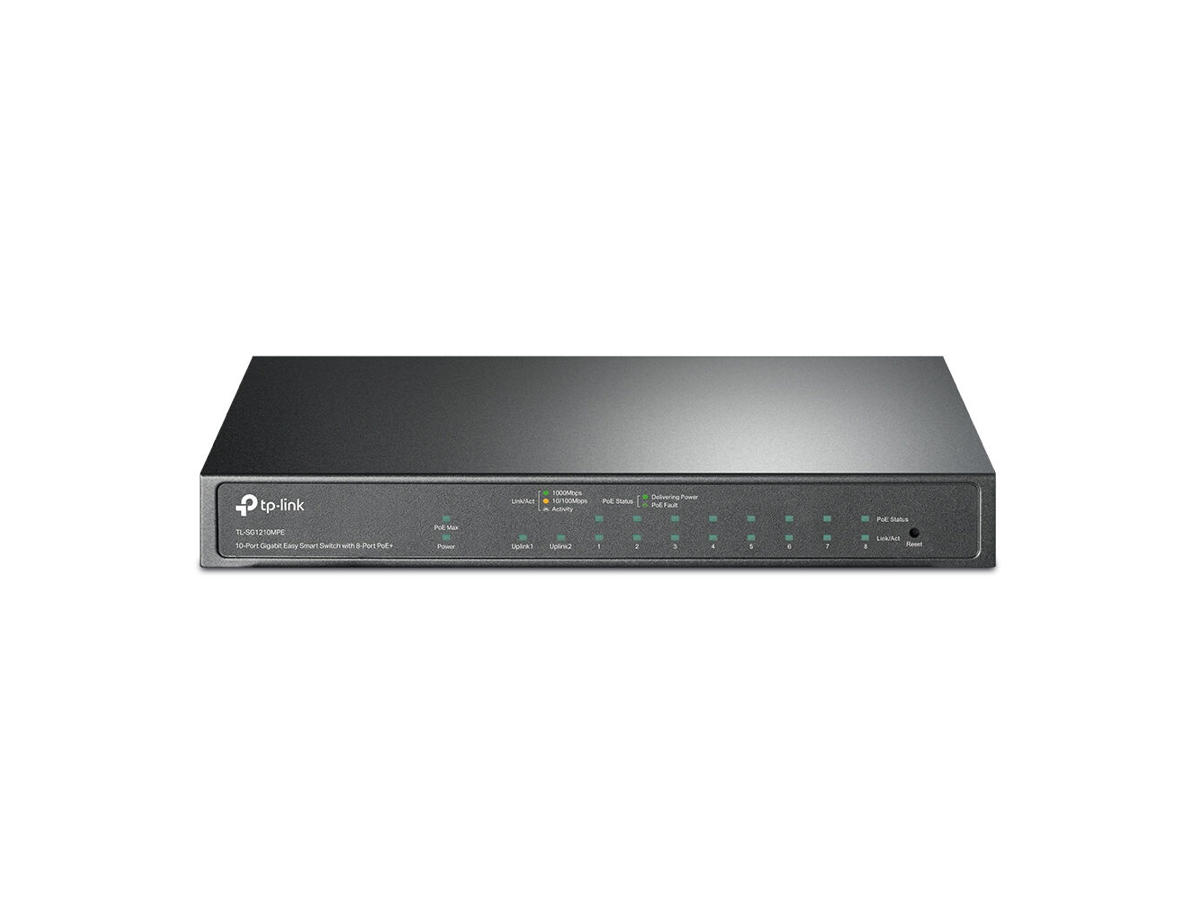

TP-Link TL-SG1210MPE is an easy smart switch with 9× gigabit RJ45 ports and 1× gigabit combo SFP/RJ45 port that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.
Intelligent Power Management
When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SG1210MPE are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on. -
Administrationsfunktioner Switch-type Administreret Switch lag L2 Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 9 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Fiberkanal porte 1 Fiber optisk strømstik SFP Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G understøttelse Ingen Port-spejlning Ja Broadcast stormkontrol Ja Begrænsning af hastighed Ja Dataoverførsel MAC adresselabel 4000 entries Switch kapacitet 20 Gbit/sek. Hastighed for videresendelse 14,88 Mpps Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 16000 Sikkerhed IGMP snooping Ja Loop beskyttelse Ja Design Stativ-montering Ingen Produktfarve Sort LED-indikatorer Ja Strømstyring Strømforsyning inkluderet Ja DC indgangsspænding 53.5 V Indgangsstrøm 2.43 A Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 8 Power over Ethernet (PoE) effekt pr. port 30 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Vægt & størrelser Bredde 209 mm Dybde 126 mm Højde 26 mm Emballage indhold Brugervejledning Ja Emballeringsdata Pakkebredde 240 mm Pakkedybde 315 mm Pakkehøjde 70 mm Pakkevægt 1,58 kg Logistik data Harmoniseret systemkode (HS) 85176990
