Varenummer: GS-1008PL V2
Mere information
-
PoE Long Range Extension
Break Through 100 Meters PoE Distance Limitation
Supports PoE power output over a distance up to 200 meters overcoming the 100 meters limit on Ethernet UTP cable with the PoE Extend “ON”, the GS-1008PL V2 provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation.
Innovative Port-based VLAN
Port Isolated from Affecting Each Other
The GS-1008PL V2 features port-based VLAN where ports can be easily isolated from each other. This can help to prevent IP camera’s multicast or broadcast storms from affecting each other.
Easy Hardware QoS
Video & Voice Traffic Priority
Supports 802.1p QoS via DIP switch port 4. This ensures first priority for video and voice traffic for reduced package loss, lower latency and jitter on the network.
Safe Power Backfeed Protection
Avoid Damaging the PoE Ports
Each port equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.

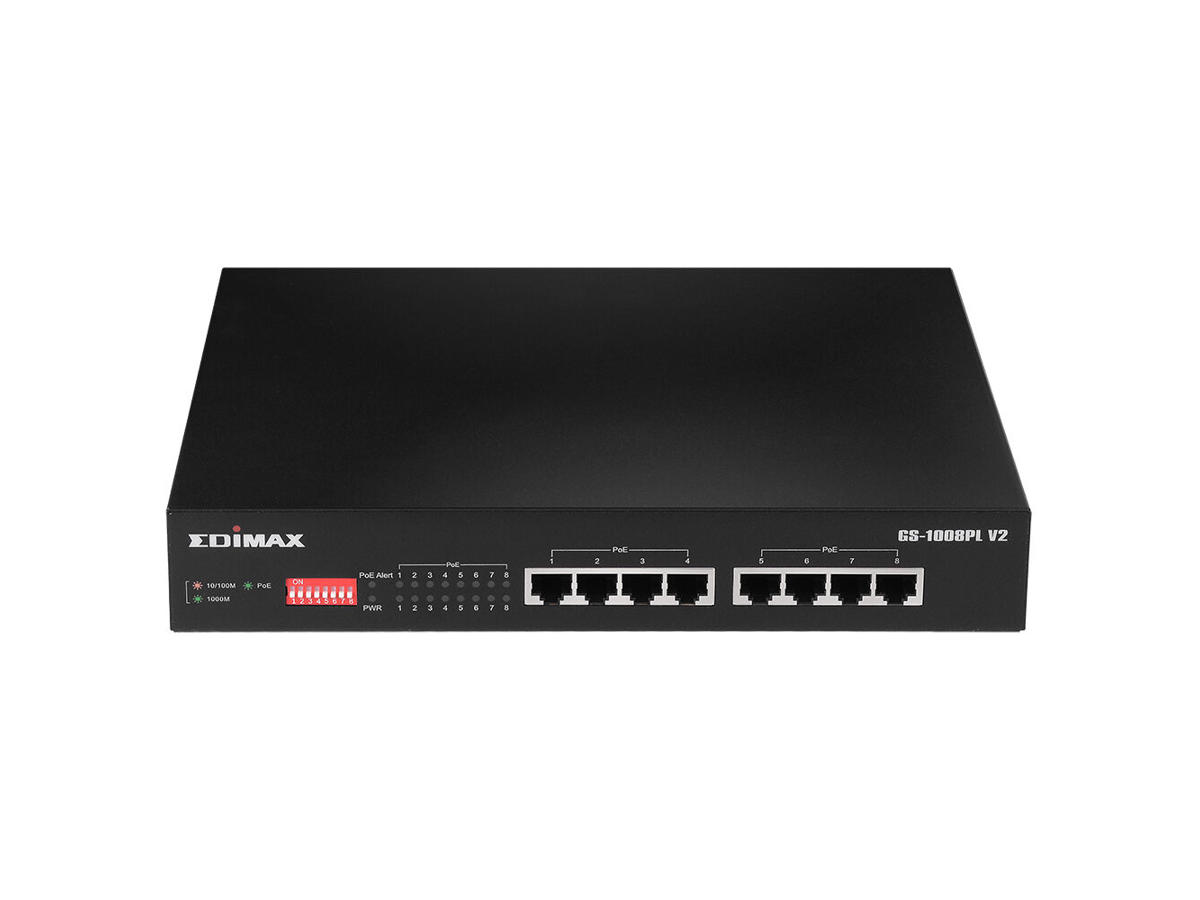

Edimax GS-1000PL V2 Long Range 8-Port Gigabit Ethernet PoE+ Switch with DIP Switch, PoE power backfeed protection -
Administrationsfunktioner Switch-type Administreret Switch lag L2 Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 8 Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Fuld duplex Ja Halv dupleks Ja Broadcast stormkontrol Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s VLAN understøttelse Ja Dataoverførsel MAC adresselabel 4096 entries Switch kapacitet 16 Gbit/sek. Hastighed for videresendelse 1,488 Mpps Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 9216 Multicast funktioner Multicast-understøttelse Ja Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort Husmateriale Metal LED-indikatorer Aktivitet, Link, Strøm Præstation Ventilatorfri Ja Strømstyring Strømforsyning inkluderet Ja Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) -type understøttet Active PoE Power over Ethernet plus (PoE+) porte, antal 8 Total Power over Ethernet (PoE) 70 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Vægt & størrelser Bredde 265 mm Dybde 184 mm Højde 44 mm Vægt 1,61 kg Godkendelser Compliance-certifikater CE Certificering CE, FCC, LVD Logistik data Harmoniseret systemkode (HS) 85176990 Bæredygtighed Overholdelse af bæredygtighed Ja
