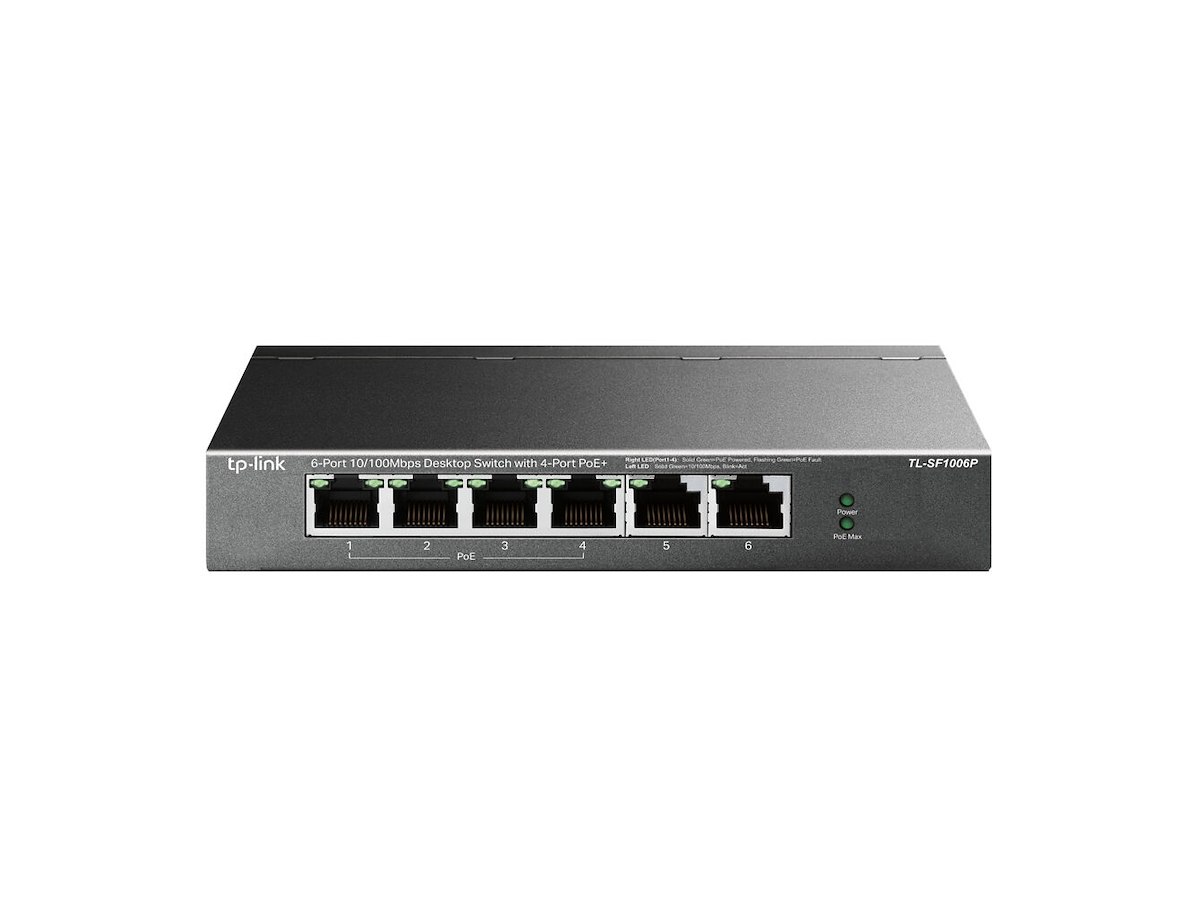

Professional High-Power Switch with 4 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 6 |
Basis omskiftning RJ-45 Ethernet porttype | Fast Ethernet (10/100) |
Netværk | |
Netværksstandarder | IEEE 802.3af, IEEE 802.3at |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 100BASE-T |
Understøttede kabeltyper | Cat3, Cat4, Cat5, Cat5e |
Fuld duplex | Ja |
Halv dupleks | Ja |
Flowkontrol support | Ja |
Auto MDI/MDI-X | Ja |
Auto-forhandling | Ja |
MAC-adresse auto-indlæring understøttet | Ja |
MAC-adresse auto-forældelse understøttet | Ja |
Dataoverførsel | |
MAC adresselabel | 2000 entries |
Switch kapacitet | 1,2 Gbit/sek. |
Hastighed for videresendelse | 0,8928 Mpps |
Opbevar-og-frem | Ja |
Jumbo Frames support | Ja |
Jumbo rammer | 2000 |
Design | |
Stativ-montering | Ingen |
Stabelbar | Ingen |
Produktfarve | Sort |
Husmateriale | Metal |
LED-indikatorer | Ja |
Certificering | FCC, CE, RoHS |
Præstation | |
Ventilatorfri | Ja |
Strømstyring | |
Strømkilde | DC/PoE |
Strømforsyning inkluderet | Ja |
Vekselstrømsindgangsspænding | 220 V |
Vekselstrømsindgangsfrekvens | 50 Hz |
DC indgangsspænding | 53.5 V |
Indgangsstrøm | 1.31 A |
Strømforbrug (maks.) | 74 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet plus (PoE+) porte, antal | 4 |
Total Power over Ethernet (PoE) | 67 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Varmeafgivelse | 252,34 BUT/t |
Vægt & størrelser | |
Bredde | 158 mm |
Dybde | 101 mm |
Højde | 25 mm |
Emballeringsdata | |
Brugervejledning | Ja |
AC-adapter inkluderet | Ja |
Pakketype | Kasse |
Pakkebredde | 131 mm |
Pakkedybde | 196 mm |
Pakkehøjde | 121 mm |
Pakkevægt | 870 g |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
Bæredygtighedscertifikater | CE, Federal Communications Commission (FCC), RoHS |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
