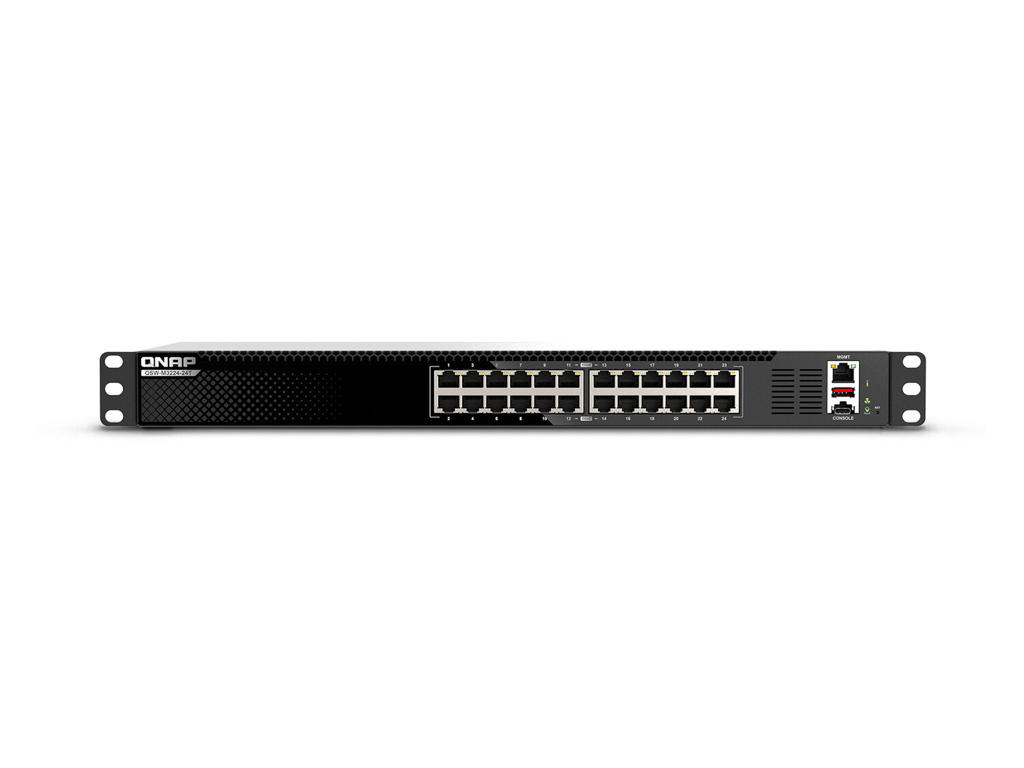

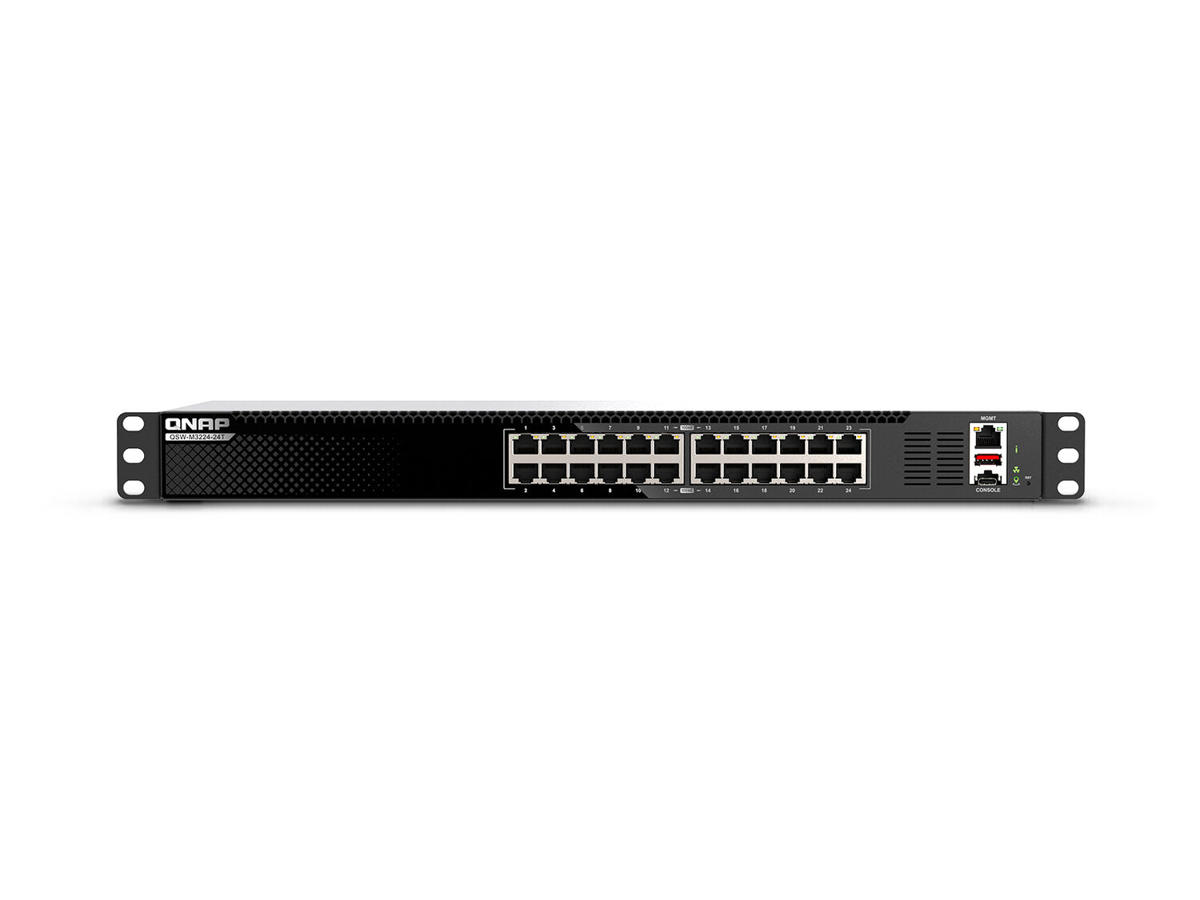

QSW-M3224-24T
Cost-optimized high-density 1U Rackmount 24-port 10GbE Multi-gigabit L3 Lite managed switch, supporting MC-LAG for realizing IT room High Availability
QSW-M3224-24T is a cost-effective L3 Lite managed switch designed for enterprises. With twenty four 10GbE Multi-Gig ports for low-latency and high-density 10G network applications, QSW-M3224-24T accelerates high-speed storage, video editing, virtualization, AI and AVoIP applications. The QSW-M3224-24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
Scale secure and highly-efficient enterprise network infrastructure with the QNAP L3 Lite switch
Medium to large-scale enterprises often have large and complicated network infrastructure. Upgrading to L3 Lite managed switches not only scales a secure high-speed network infrastructure, but also saves tremendous maintenance and management costs.
24x 10GbE ports for connecting more high-speed network devices
The switching capacity of the QSW-M3224-24T is 480Gbps, guaranteeing the full potential of each port. The QSW-M3224-24T can uplink to switches and servers in server rooms or connect to 10GbE NAS, workstations, AV-over-IP devices, and SNMP-compliant devices to build a flexible high-speed network transmission topology.
Optimize network performance with bandwidth and packet control
The QSW-M3224-24T offers practical bandwidth and packet control features that effectively allocate bandwidth and manage network segmentation. This significantly enhances network performance for administrators.
Powerful security and system functions
The QSW-M3224-24T has powerful security and system functions (including ACL, LLDP, RSTP and Flow Control) to help administrators enhance network reliability using access controls, troubleshooting, loop prevention and avoiding packet loss.
QSS Pro: Powerful and Smart
The QSW-M3224-24T adopts QNAP Switch System Pro (QSS Pro), which features an easy-to-use Web GUI with Layer 3 Lite and Layer 2 management and value-added functions to simplify network set up and management.
| Administrationsfunktioner | |
| Switch-type | Administreret |
| Switch lag | L3 |
| Servicekvalitet support (QoS) | Ja |
| Webbaseret administration | Ja |
| System hændelseslog | Ja |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 24 |
| Basis omskiftning RJ-45 Ethernet porttype | 10G Ethernet (100/1000/10000) |
| Antal installerede SFP moduler | 0 |
| Antal installerede SFP+ moduler | 0 |
| Antal administrationsporte | 1 stk |
| Port til konsol | RJ-45 |
| Netværk | |
| Netværksstandarder | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| 10G understøttelse | Ja |
| Port-spejlning | Ja |
| Auto-forhandling | Ja |
| VLAN understøttelse | Ja |
| Dataoverførsel | |
| MAC adresselabel | 32000 entries |
| Switch kapacitet | 480 Gbit/sek. |
| Gennemløb | 240 Gbit/sek. |
| Statisk rute | Ja |
| Jumbo Frames support | Ja |
| Jumbo rammer | 9000 |
| Sikkerhed | |
| DHCP funktioner | DHCP server |
| Adgangskontrolliste (ACL) | Ja |
| IGMP snooping | Ja |
| Loop beskyttelse | Ja |
| Design | |
| Stativ-montering | Ja |
| Stabelbar | Ja |
| Formfaktor | 1U |
| Produktfarve | Sort, Sølv |
| Knap til nulstilling | Ja |
| LED-indikatorer | Ja |
| Præstation | |
| Firmware kan opgraderes | Ja |
| Strømstyring | |
| Strømkilde | Vekselstrøm |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50/60 Hz |
| Strømforbrug (maks.) | 116,9 W |
| Andre funktioner | |
| Garantiperiode | 2 År |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
| Vægt & størrelser | |
| Bredde | 438,5 mm |
| Dybde | 190 mm |
| Højde | 44,2 mm |
| Vægt | 2,93 kg |
| Emballage indhold | |
| Kabler inkluderet | Vekselstrøm |
| Hurtig start guide | Ja |
| Rack monteringskit | Ja |
| Emballeringsdata | |
| Pakkebredde | 582 mm |
| Pakkedybde | 362 mm |
| Pakkehøjde | 170 mm |
| Pakkevægt | 4,5 kg |
| Godkendelser | |
| Certificering | CE, FCC, VCCI, BSMI |
| Logistik data | |
| Oprindelsesland | Taiwan |
