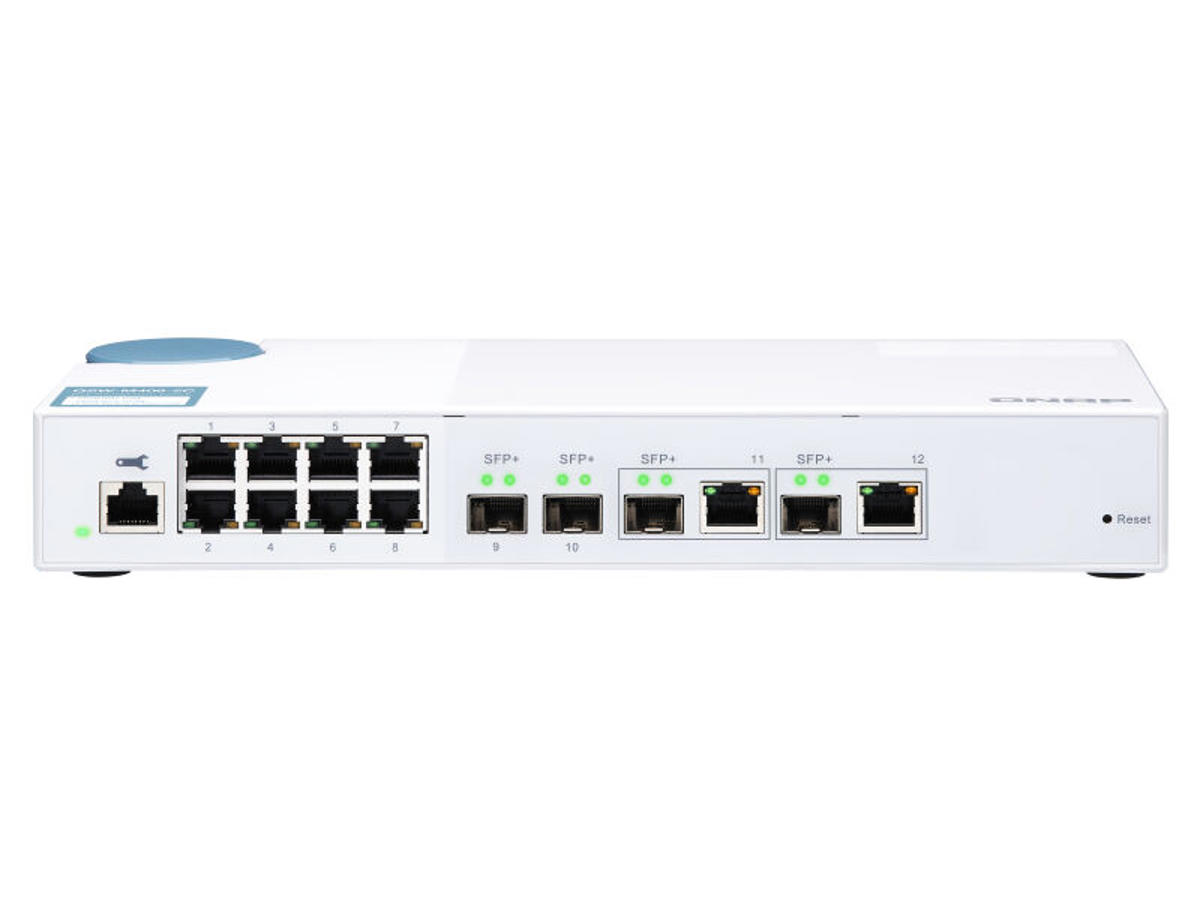

The QSW-M408-2C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports. Supporting Layer 2 switching and network management via user-friendly web user interface, the QSW-M408-2C offers flexible deployment in a hybrid high-speed network infrastructure and an entry-level network management solution for even non-IT professionals. The QSW-M408-2C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with your existing Cat 5e and 6a cables. With its high performance, user-friendly management features and desktop size, the QSW-M408-2C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance security
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M408-2C provides four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-M408-2C is 96Gbps, guaranteeing the full potential of each port.
| Administrationsfunktioner | |
| Switch-type | Administreret |
| Switch lag | L2 |
| Servicekvalitet support (QoS) | Ja |
| Webbaseret administration | Ja |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
| Basis omskiftning RJ-45 Ethernet porttype | 10G Ethernet (100/1000/10000) |
| Gigabit Ethernet (kobber) porte, antal | 8 |
| Kombo SFP porte, antal | 2 |
| Antal SFP + modulslots | 2 |
| Fiber optisk strømstik | SFP+ |
| Port til konsol | RJ-45 |
| Netværk | |
| Netværksstandarder | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G understøttelse | Ja |
| Kobber ethernet kabelteknologi | 10BASE-T, 10GBASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
| Understøttede kabeltyper | Cat5, Cat5e, Cat6 |
| Fuld duplex | Ja |
| Flowkontrol support | Ja |
| Spanning tree protokol | Ja |
| Auto-forhandling | Ja |
| VLAN understøttelse | Ja |
| Vituelle LAN funktioner | Port-based VLAN, Private VLAN |
| Dataoverførsel | |
| MAC adresselabel | 16000 entries |
| Switch kapacitet | 96 Gbit/sek. |
| Gennemløb | 48 Gbit/sek. |
| Jumbo Frames support | Ja |
| Jumbo rammer | 9000 |
| Sikkerhed | |
| DHCP funktioner | DHCP client |
| Adgangskontrolliste (ACL) | Ja |
| IGMP snooping | Ja |
| Design | |
| Stativ-montering | Ingen |
| Stabelbar | Ingen |
| Produktfarve | Hvid |
| Knap til nulstilling | Ja |
| LED-indikatorer | Aktivitet, Link, Strøm, Hastighed, Status |
| Antal blæsere | 1 blæser(e) |
| Elektromagnetisk kompatibilitet | CLASS A |
| Præstation | |
| Støjniveau | 21 dB |
| Strømstyring | |
| Strømkilde | Vekselstrøm |
| Strømforsyning inkluderet | Ja |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
| Strømforbrug (maks.) | 22,04 W |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ingen |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
| Vægt & størrelser | |
| Bredde | 290 mm |
| Dybde | 127 mm |
| Højde | 42,5 mm |
| Vægt | 1,15 kg |
| Emballage indhold | |
| Kabler inkluderet | Vekselstrøm |
| Hurtig start guide | Ja |
| Emballeringsdata | |
| Pakkevægt | 1,57 kg |
| Godkendelser | |
| Certificering | CE, FCC, VCCI, BSMI, CCC |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
