Varenummer: FS108PEU
Mere information
-

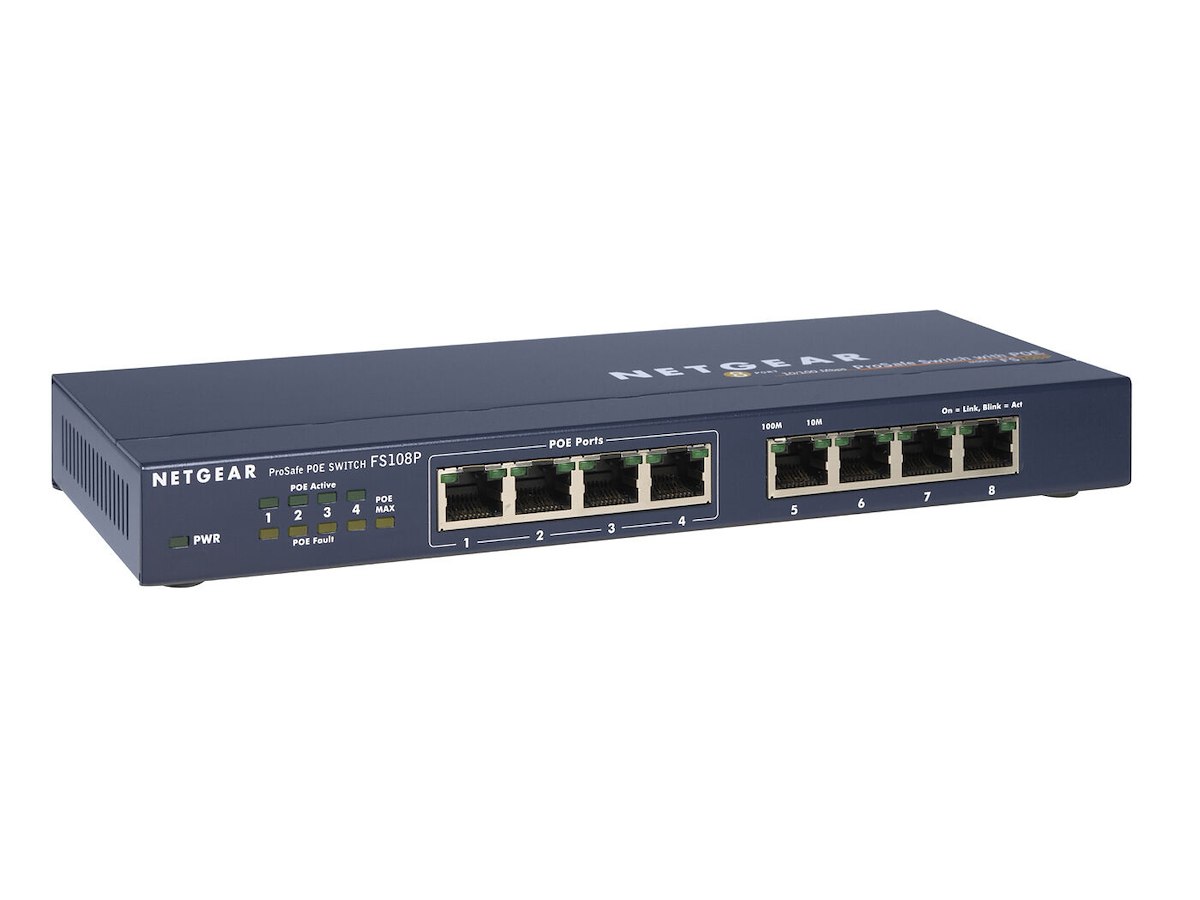

The ProSafe FS108P provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The eight Fast Ethernet ports can be used for any 10/100 Mbps link and four of these ports can supply industry-standard IEEE 802.3af power. Advanced auto-sensing algorithm gives power only to 802.3af end devices, so no need to worry about damaging proprietary PoE or non-PoE equipment. In addition, it discontinues the power
when PoE devices are disconnected. Easy and reliable, the ProSafe FS108P automatically determines PoE requirements, speed, duplex, and cable type using AutoUplink™.
The affordably priced ProSafe FS108P delivers PoE to any small business network that wants to simplify the installation of wireless access points and IP-based surveillance cameras. These devices are optimally installed on a ceiling or high on a wall, away from most electrical outlets. PoE eliminates the requirement for a dedicated electrical outlet to power these devices. This allows for flexibility in situating devices where AC power is difficult to access and lowers installation costs. Compact and flexible, the ProSafe FS108P is ideal for small business network that want to inexpensively use PoE to deploy wireless access points and IP-based network surveillance cameras. -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Fast Ethernet (10/100) Netværk Netværksstandarder IEEE 802.3af, IEEE 802.3x 10G understøttelse Ingen Flowkontrol support Ja Dataoverførsel MAC adresselabel 1000 entries Switch kapacitet 1,6 Gbit/sek. Opbevar-og-frem Ja Maksimal dataoverførselshastighed 0,1 Gbit/sek. Pakke bufferlager 0,096 MB Design Stabelbar Ingen Sikkerhed CE/LVD EN60950 Præstation Gennemsnitstid mellem fejl (MTBF) 190000 t Strømstyring Strømforbrug (typisk) 44 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) porte, antal 4 Andre funktioner Reaktionstid 20 µs Dimensioner (BxDxH) 235 x 103 x 27 mm Forbindelsesteknologi Ledningsført Effektkrav 48VDC, 0.8A I/O-porte 8 x 10/100 RJ-45. Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -10 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Vægt & størrelser Bredde 235 mm Dybde 103 mm Højde 27 mm Vægt 690 g Godkendelser Certificering - CE mark - FCC Part 15 Class B - VCCI Class B - EN 55022 (CISPR 22), Class B - C-Tick - EN 55024
