Varenummer: GS748T-500EUS
Mere information
-

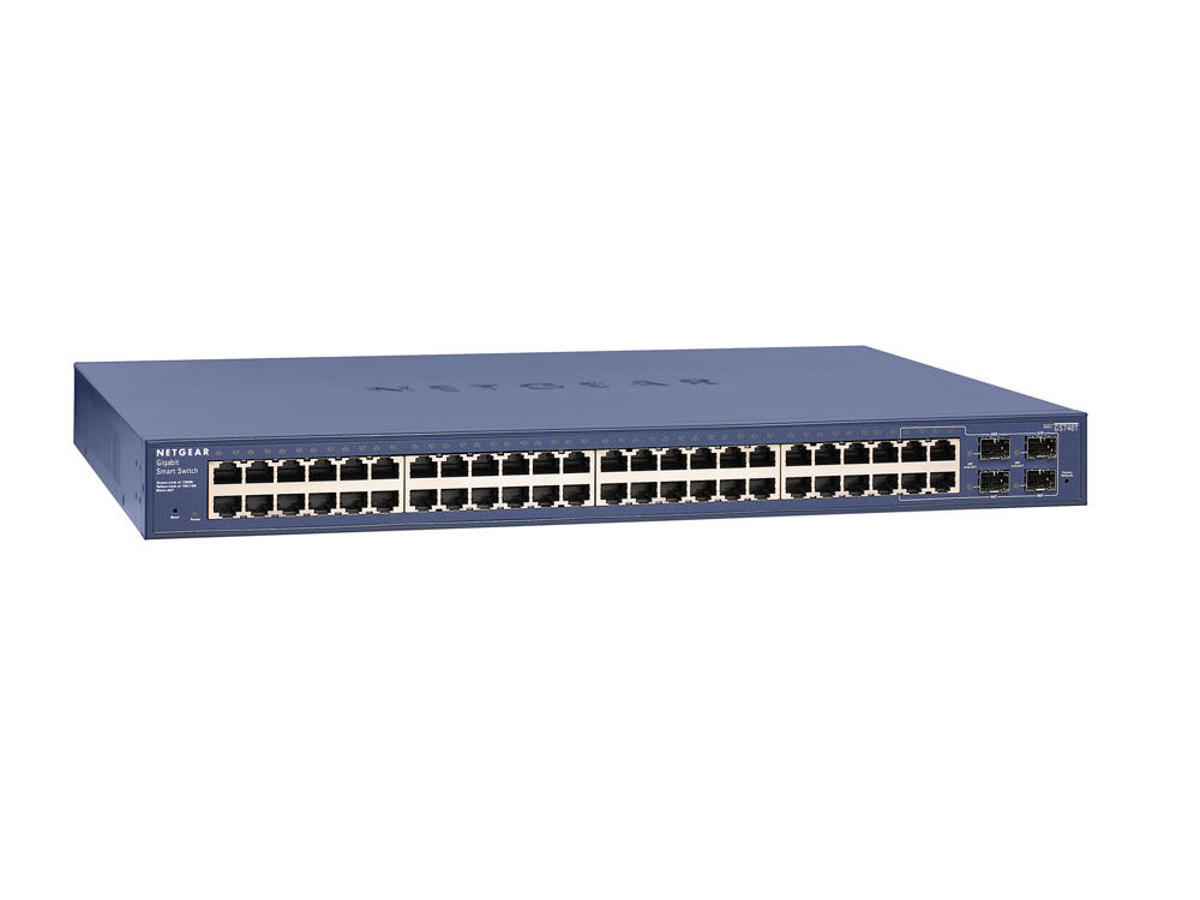

High Port Density Gigabit with Browser-based Management Included
Joining NETGEAR’s family of Smart Switches with simple switch management at no extra cost, this 1U high, 48-port Gigabit switch maximizes bandwidth and density for great value and capability. With 48 10/100/1000 Mbps ports, each capable of powering 2000 Mbps of data throughput in full-duplex mode, plus four optional fiber ports, it provides a 96 Gbps backbone and connects servers or power users, delivering large amounts of multimedia, image, and video information in no time at all. Standards-based, it is ideal for combining 10, 100, and 1000 Mbps devices, as it delivers automatic speed and full/half-duplex sensing plus Auto Uplink™ on every port. Four hot-swappable small form-factor pluggable (SFP)** GBIC slots provide optional fiber connectivity for greater distance. An intuitive, Web-browser interface offers simple switch management, making it a snap to monitor switch performance, configure ports, even setup trunks, VLANs, and prioritization.
High Density
48 10/100/1000 Mbps ports deliver full-speed packet forwarding in a 1U size to migrate your network to future-proof functionality. Four SFP GBIC fiber slots provide optional fiber connectivity for greater distance.
Intelligent
Smart Switch capability enables key management features for the value price of an unmanaged switch. Included are performance monitoring, port configuration, VLAN for traffic control, port trunking for increased bandwidth, and Class of Service (CoS) for traffic prioritization.
Right Sized
Ideal for growing businesses who want the benefits of management without the cost. Compatible with Windows, MAC and Linux operating systems.***
Easygoing and Durable
Simple to set up and simple to use for effortless network monitoring and troubleshooting. Made to last, this sturdy switch is housed in a 17-inch metal box and comes with a rack-mounting kit.
Like all NETGEAR ProSafe Smart Switches, the GS748T is backed by the NETGEAR ProSafe -
Administrationsfunktioner Switch-type Administreret Switch lag L2+ Servicekvalitet support (QoS) Ja Webbaseret administration Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Kombo SFP porte, antal 2 Antal SFP modulslots 2 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Fuld duplex Ja Flowkontrol support Ja Link aggregering Ja Begrænsning af hastighed Ja Spanning tree protokol Ja VLAN understøttelse Ja Antal VLAN'er 64 Dataoverførsel MAC adresselabel 8000 entries Latens (10-100 Mbps) 20 µs Jumbo Frames support Ja Pakke bufferlager 1,632 MB Sikkerhed DHCP funktioner DHCP client Adgangskontrolliste (ACL) Ja Design Stativ-montering Ja Produktfarve Blå Sikkerhed UL listed (UL 1950)/cUL, IEC 950/EN 60950 Præstation Kompatible operativsystemer Windows, MAC, Linux Støjniveau 52 dB Gennemsnitstid mellem fejl (MTBF) 108000 t Strømstyring Strømkilde Vekselstrøm Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (typisk) 66 W Strømforbrug (maks.) 70 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -10 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Relativ luftfugtighed ved opbevaring (H-H) 0 - 95% Driftshøjde 0 - 3000 m Ikke-drift højde 0 - 3000 m Vægt & størrelser Bredde 305 mm Dybde 43 mm Højde 440 mm Vægt 4,9 kg Emballage indhold Kabler inkluderet LAN (RJ-45) Hurtig start guide Ja Brugervejledning Ja Godkendelser Certificering CE mark, commercial FCC Part 15 Class A VCCI Class A EN 55022 (CISPR 22), Class A EN 50082-1 EN 55024 C-Tick Logistik data Harmoniseret systemkode (HS) 85176990
