Varenummer: GS516PP-100EUS
Mere information
-

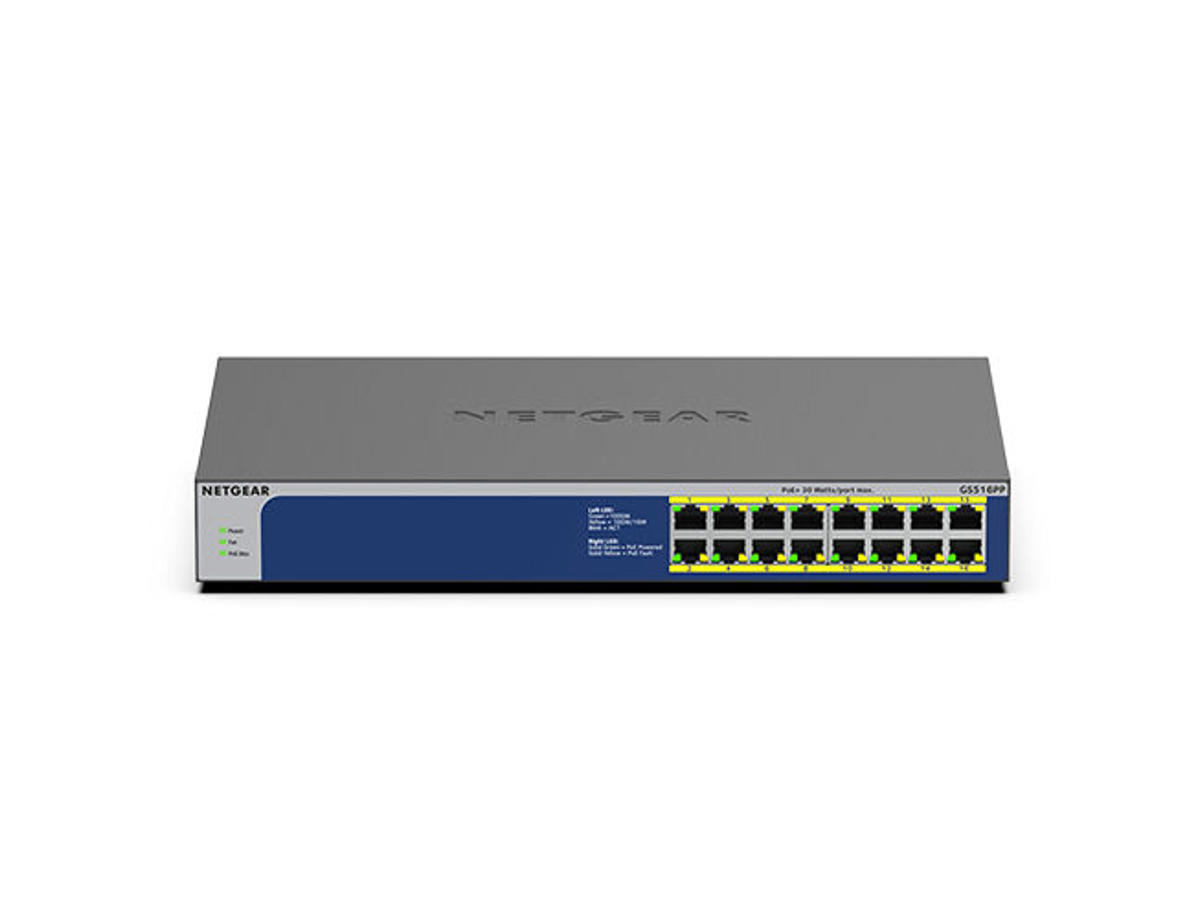

Instant Connectivity and Reliable Performance
The NETGEAR Gigabit Unmanaged Switch series helps your business cost-effectively expand your network to Gigabit speeds and higher port counts. The GS516PP joins the series and offers 16 PoE+ ports to power high-power PoE devices. With a total PoE power budget of 260W, deploy denser PoE+ devices to a single switch rather than multiple
The GS516PP is energy efficient, built to last, and rigorously tested to provide the reliability your business needs. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Powerful and Energy Efficient
Ideal for powering and connecting VoIP phones, wireless access points, IP Cameras and IoT devices. Desktop or rackmount for flexible placement. The GS516PP gives you a highly cost-effective and powerful switch with the best cost/PoE budget ratio.
NETGEAR Unmanaged Switches support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable is used. -
Administrationsfunktioner Switch-type Ikke administreret Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 16 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Netværk Netværksstandarder IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u 10G understøttelse Ingen Kobber ethernet kabelteknologi 10GBASE-T, 100BASE-T, 1000BASE-T Fuld duplex Ja Halv dupleks Ja Auto MDI/MDI-X Ja Dataoverførsel MAC adresselabel 8000 entries Switch kapacitet 32 Gbit/sek. Latens (1 Gbps) 12 µs Jumbo Frames support Ja Jumbo rammer 9216 Pakke videresendelsesrate (1 Gbps) 1448000 pps Pakke bufferlager 0,192 MB Sikkerhed Algoritmer for køplanlægning Weighted Round Robin (WRR) Design Stativ-montering Ja Produktfarve Blå, Grå Husmateriale Metal LED-indikatorer Aktivitet, Ventilatorfejl, Link, PoE, Strøm, Hastighed Antal blæsere 2 blæser(e) Præstation Gennemsnitstid mellem fejl (MTBF) 2415333,9 t Strømstyring Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (maks.) 316,1 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) -type understøttet PoE+ Power over Ethernet plus (PoE+) porte, antal 16 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 260 W Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 95% Driftshøjde 0 - 3000 m Vægt & størrelser Bredde 330 mm Dybde 207 mm Højde 43 mm Vægt 2,3 kg Godkendelser Certificering FCC 47 CFR Part15B (Class A) ICES-003 Class A EN 55024/55032/55035 (Class A) AS/NZS CISPR 32 VCCI BSMI CNS13438 KCC UL 62368-1 CB_IEC 60950-1 + IEC 62368-1 Ed-3 LVD EN60950-1+EN62368-1 Ed-2 Rpt AS/NZS 62368.1 Ed-2 BSMI CNS14336-1 Logistik data Harmoniseret systemkode (HS) 85176990
