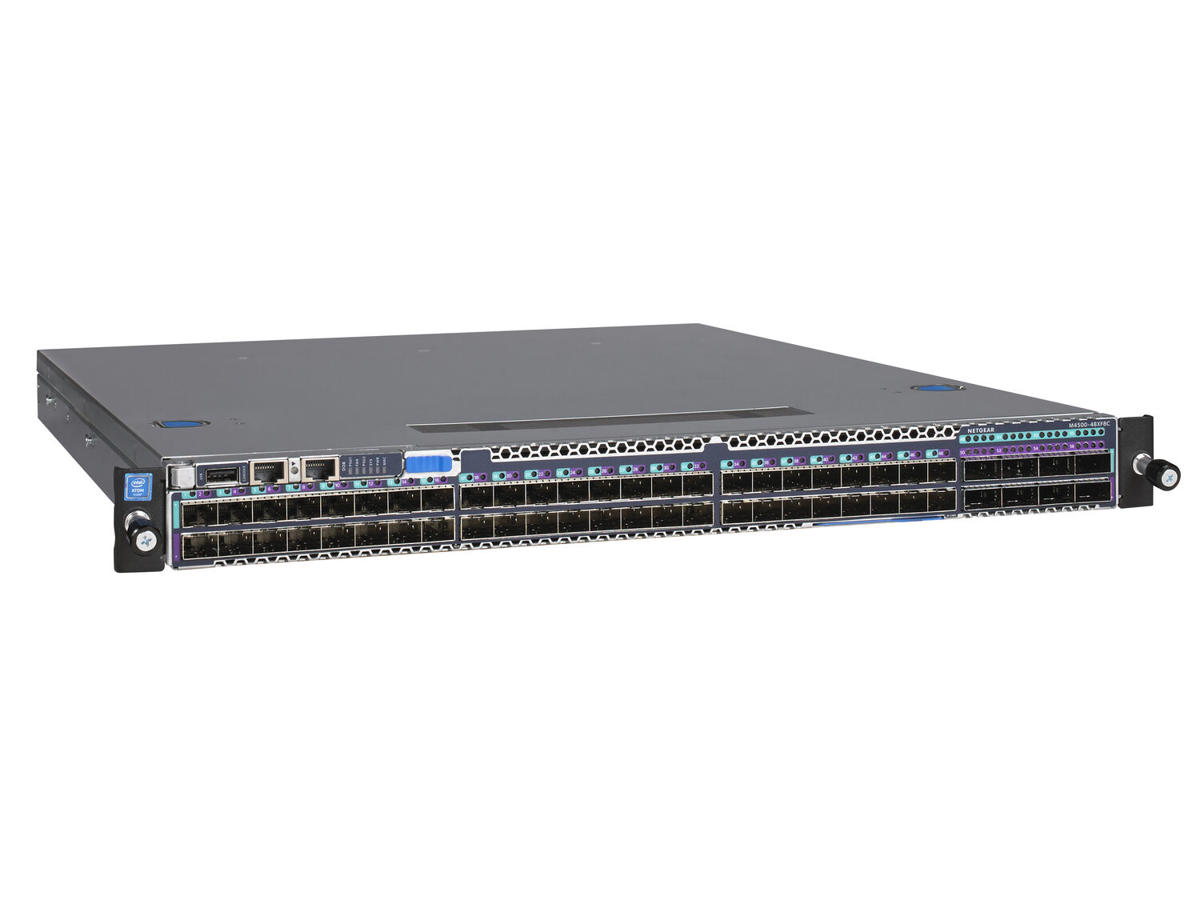

The trend of moving matrix switching into the Ethernet network is inevitable and SDVoE already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch using Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 Multicast Routing techniques, adding complexity and cost to the Ethernet infrastructure. As SDVoE systems become ever larger, a new class of switches has come to market. The M4500 switches combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known IGMP techniques across the entire AV over IP network.
-
Administrationsfunktioner Switch-type Administreret Switch lag L2/L3/L4 Servicekvalitet support (QoS) Ja Webbaseret administration Ja ARP inspektion Ja System hændelseslog Ja Porte & Grænseflader Fiber optisk strømstik QSFP+ Port til konsol RJ-45 QSFP28-portmængde 8 SSFP28-portmængde 48 Antal USB 2.0-porte 1 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.1AX, IEEE 802.3ad 10G understøttelse Ja Port-spejlning Ja Flowkontrol support Ja Link aggregering Ja Begrænsning af hastighed Ja Auto MDI/MDI-X Ja Spanning tree protokol Ja Auto-sensing Ja Auto-forhandling Ja VLAN understøttelse Ja Vituelle LAN funktioner Private VLAN, Tagged VLAN, Voice VLAN Antal VLAN'er 4000 Optisk fiber Fiber ethernet kabelteknologi 100BASE-X Dataoverførsel MAC adresselabel 32000 entries Switch kapacitet 4000 Gbit/sek. Sikkerhed DHCP funktioner DHCP client, DHCP relay, DHCP server Adgangskontrolliste (ACL) Ja IGMP snooping Ja Sikkerhedsalgoritmer HTTPS, SNMP, SSH SSH/SSL support Ja BPDU filtrering/beskyttelse Ja Multicast funktioner Multicast-understøttelse Ja Protokoller Administrationsprotokoller Web GUI, HTTPs, CLI, Telnet, SSH, SNMP, MIBs RSPAN, Radius Users, TACACS+ Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort Husmateriale Metal Knap til nulstilling Ja LED-indikatorer Ja Elektromagnetisk kompatibilitet CE, FCC 15 A, VCCI A, A EN 55022, (CISPR 22) A, EN 50082-1, EN 55024 Præstation Indbygget processer Ja Hukommelsestype DDR3-SDRAM Intern hukommelse 8000 MB Flashhukommelse 256 MB Støjniveau 64 dB Strømstyring Strømforbrug (maks.) 426 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Vægt & størrelser Vægt 9,73 kg Emballage indhold Brugervejledning Ja Emballeringsdata Pakketype Kasse Pakkebredde 593 mm Pakkedybde 888 mm Pakkehøjde 186 mm Pakkevægt 20,9 kg Logistik data Harmoniseret systemkode (HS) 85176990 Produkter pr. hovedkasse (udvendigt) 1 stk
