Varenummer: GS348PP-100EUS
Mere information
-

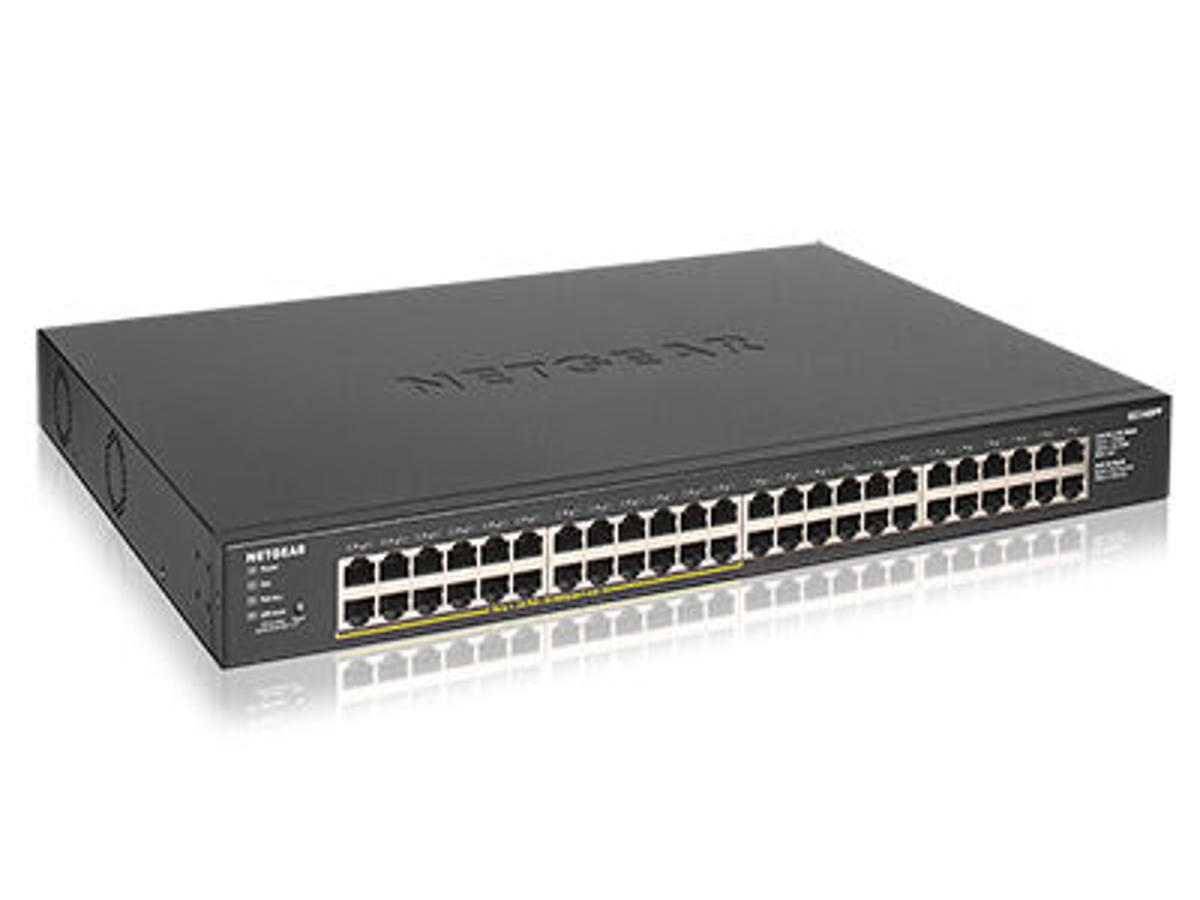

NETGEAR SOHO Ethernet Unmanaged Switches
SOHO Ethernet Unmanaged Switches provide easy and affordable network connectivity to small offices and home offices. They are easy to use, reliable, and rugged with metal enclosures. Power-over-Ethernet (PoE) support is also available for supplying both power and data across a single CAT-5 ethernet cable to devices such as IP security cameras, VoIP phones, wireless access points, and more. With these Plug and Play switches, you can quickly and easily expand your network connections to multiple devices, with no configuration required. Available with 5 to 48 ports, these switches also support energy saving technologies to help you save your power and money.
Extended Features
- Choice of Fast Ethernet and Gigabit Ethernet connectivity
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
- Power-over-Ethernet (PoE) option available for powering IP Security Cameras, VoIP phones, wireless access points, and other PD-powered devices
- Fanless design for silent opeartion
- Desktop, wall-mountable or rack-mountable (GS324, GS348) -
Administrationsfunktioner Switch-type Ikke administreret Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Netværk Netværksstandarder IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Fuld duplex Ja Auto MDI/MDI-X Ja Auto-sensing Ja Auto-forhandling Ja Kabellængde opdagelse Ja Dataoverførsel MAC adresselabel 8000 entries Switch kapacitet 96 Gbit/sek. Hastighed for videresendelse 1,448 Mpps Latens (1 Gbps) 4 µs Jumbo Frames support Ja Jumbo rammer 12288 Pakke videresendelsesrate (1 Gbps) 1448000 pps Pakke bufferlager 1,5 MB Sikkerhed Algoritmer for køplanlægning Weighted Round Robin (WRR) Design Stativ-montering Ja Produktfarve Sort Husmateriale Metal LED-indikatorer Aktivitet, Link, PoE, Strøm, Hastighed Antal blæsere 2 blæser(e) Præstation Gennemsnitstid mellem fejl (MTBF) 570972 t Strømstyring Vekselstrømsindgangsspænding 110 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (maks.) 410 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) porte, antal 24 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 380 W Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 95% Driftshøjde 0 - 3000 m Varmeafgivelse 1402,2 BUT/t Vægt & størrelser Bredde 440 mm Dybde 310 mm Højde 43 mm Vægt 4,56 kg Emballage indhold Kabler inkluderet Vekselstrøm Brugervejledning Ja Rack monteringskit Ja Godkendelser Certificering CE, FCC 15 A, IC A, RCM, VCCI, KC CB, CE LVD, UL Logistik data Harmoniseret systemkode (HS) 85176990
