Varenummer: GEP-0823
Mere information
-

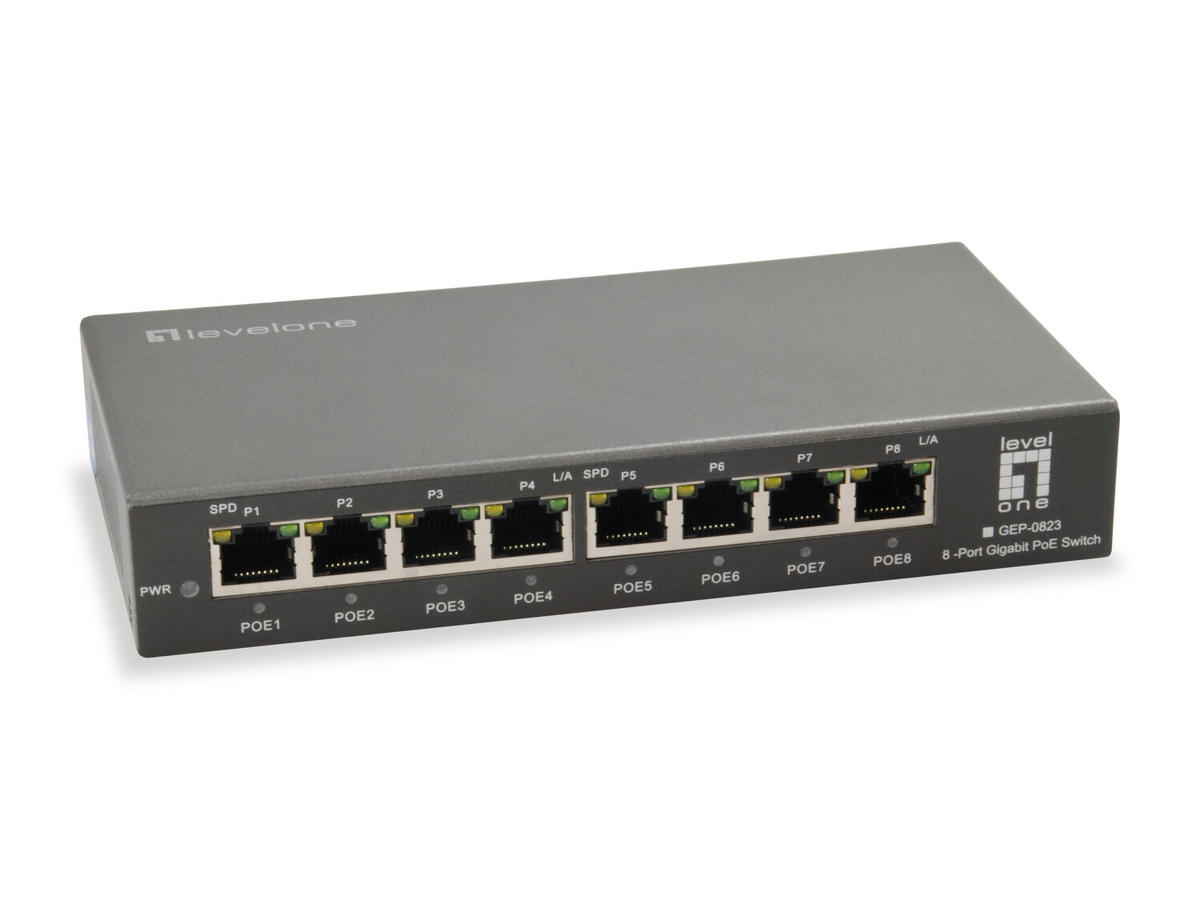

The LevelOne GEP-0823 is an 8-port Gigabit Ethernet PoE switch that provides Power over Ethernet on all eight of its ports. Per PoE port a power supply of up to 30W is possible. The total PoE power budget is 120W. It is the ideal solution when office and home users are using a combination of PoE and non-PoE devices.
The GEP-0823\'s eight PoE-enabled ports make it an ideal solution for office users who use PoE-enabled devices and already want to power a larger number of PoE devices. These products can be a mix of PoE IP phones, PoE Wifi APs and PoE IP cams. It is the perfect solution for offices that want to upgrade their office equipment and LAN infrastructure to PoE capability or upgrade their existing PoE infrastructure to Gigabit speed. The switch automatically detects the connected IEEE 802.3at/af standard device and provides these devices with power and data over a single cable.
The GEP-0823 also enables users to provide a stable and reliable high-speed LAN environment with store-and-forward switching architecture, packet error filtering and blockade-free packet forwarding. The 802.3x flow control mechanisms operate in both full and half duplex modes. This switch also supports the N-Way auto negotiation protocol, which automatically detects network speed and duplex mode.
For instant fault detection, the GEP-0823 is equipped with a complete set of LEDs to help monitor and troubleshoot the network. -
Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Fuld duplex Ja Dataoverførsel MAC adresselabel 8000 entries Switch kapacitet 16 Gbit/sek. Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 9126 Design Stabelbar Ingen Produktfarve Sort Husmateriale Metal LED-indikatorer Aktivitet, LAN, Strøm Præstation Intern hukommelse 1 MB Bufferstørrelse 8 KB Gennemsnitstid mellem fejl (MTBF) 30000 t Strømstyring Indgangsstrøm 2.5 A Indgangsspænding 52 V Strømforbrug (typisk) 10 W Strømbeskyttelsesfunktioner Overstrøm, Kortslutning Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) porte, antal 8 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 120 W Driftsbetingelser Driftstemperatur (T-T) -20 - 70 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Vægt & størrelser Bredde 86 mm Dybde 30 mm Højde 176 mm Vægt 450 g Emballage indhold Hurtig start guide Ja Emballeringsdata AC-adapter inkluderet Ja Pakkebredde 230 mm Pakkedybde 60 mm Pakkehøjde 290 mm Pakkevægt 950 g Godkendelser Certificering CE,FCC Logistik data Oprindelsesland Kina Harmoniseret systemkode (HS) 85176990
