Varenummer: GEP-0531
Mere information
-

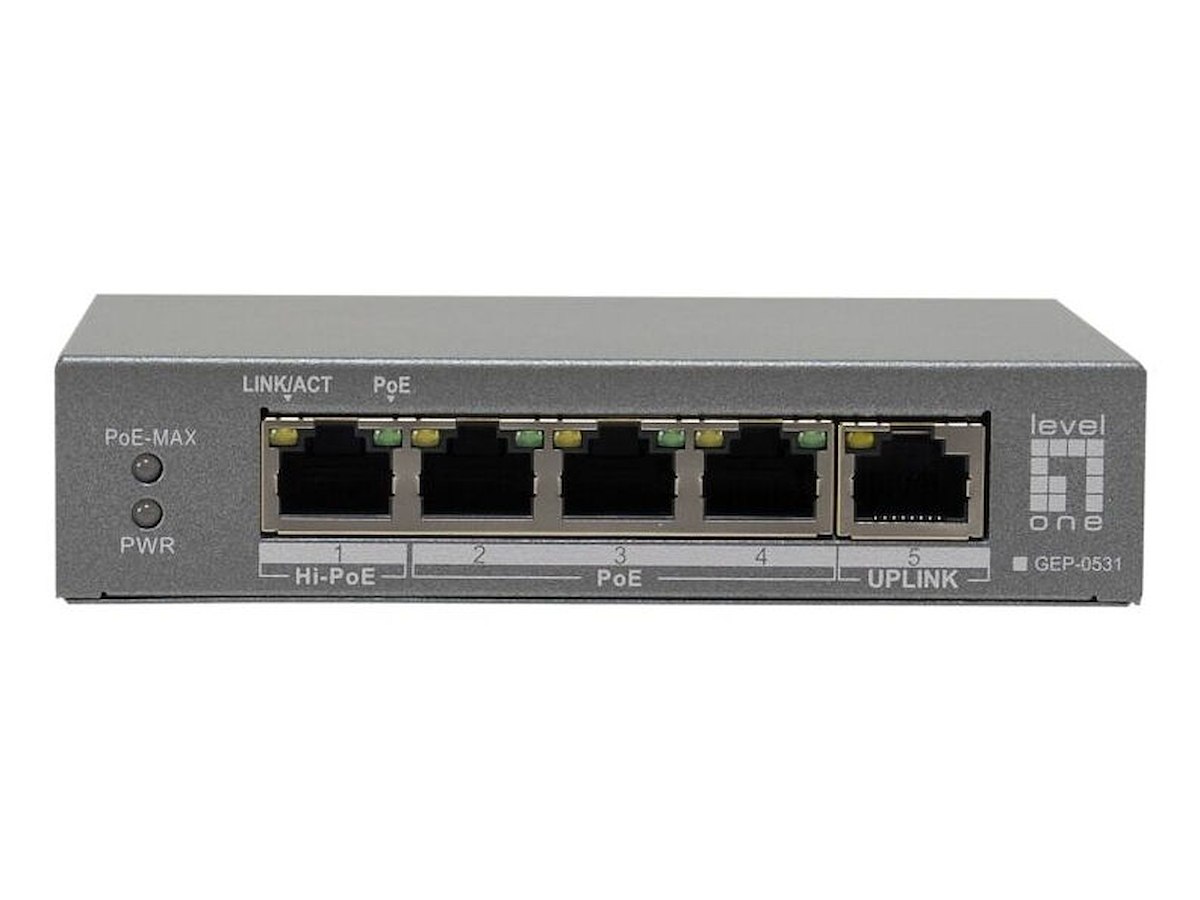

The LevelOne GEP-0531 is a compact 5-port Gigabit PoE switch designed for small offices, home networks and remote work environments that need to power IP cameras, wireless access points and VoIP phones over a single Ethernet cable. It provides 4 PoE-capable ports and 1 Gigabit uplink, delivering reliable Gigabit connectivity for mixed PoE and non-PoE deployments.
Compliant with IEEE 802.3af/at/bt, the switch offers a total PoE power budget of 60W. Ports 2–4 support up to 30W each, while Port 1 supports Hi-PoE up to 60W under the IEEE 802.3bt standard, making it ideal for higher-power devices such as PTZ cameras or high-performance wireless access points. Automatic device detection simplifies installation and helps prevent damage to non-PoE equipment.
The built-in DIP switch enables three practical operating modes to adapt to different installation scenarios. PoE Watchdog mode automatically detects and restarts unresponsive PoE devices, improving uptime for remote cameras and access points. Isolation mode separates downlink ports to enhance LAN security, while Extension mode allows PoE transmission distances of up to 300 meters at 10 Mbps on Ports 3 and 4, ideal for long corridors, parking lots or outdoor camera runs.
With 6KV surge protection on each port, the GEP-0531 is better prepared for electrical interference and unstable power conditions often found in real-world environments. Its plug-and-play design, compact housing and flexible PoE features make it a powerful and cost-effective choice for building or upgrading small surveillance, wireless and VoIP networks. -
Administrationsfunktioner Switch-type Ikke administreret Switch lag L2 Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 5 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 10G understøttelse Ingen Kobber ethernet kabelteknologi 1000BASE-T, 10BASE-T, 100BASE-TX Fuld duplex Ja Auto MDI/MDI-X Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Auto-forhandling Ja Dataoverførsel MAC adresselabel 2000 entries Switch kapacitet 10 Gbit/sek. Hastighed for videresendelse 7,44 Mpps Pakke bufferlager 0,125 MB Design Stativ-montering Ingen Stabelbar Ingen Formfaktor Bord-/vægmontering Produktfarve Grå LED-indikatorer Link, ACT, Strøm Kan monteres på væggen Ja Markedssegment Forretning Præstation Hukommelsestype Flash Plug and play Ja Ventilatorfri Ja Strømstyring Strømkilde DC Strømforsyning inkluderet Ja Antal strømforsyninger 1 DC indgangsspænding 48 V Indgangsstrøm 1.36 A Strømforbrug (typisk) 5 W Beskyttelse ved overspænding Ja Overspændingsbeskyttelse 6 kV Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) -type understøttet PoE+, PoE++ (4PPoE) Power over Ethernet (PoE) porte, antal 3 Antal Power over Ethernet 4PPoE-porte (PoE++) 1 Total Power over Ethernet (PoE) 60 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -45 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Vægt & størrelser Bredde 121 mm Dybde 88,1 mm Højde 27,6 mm Vægt 270 g Emballage indhold Kabler inkluderet Strøm Hurtig start guide Ja Godkendelser Compliance-certifikater CE, Federal Communications Commission (FCC), UL Logistik data Oprindelsesland Kina
