Varenummer: GEP-0523
Mere information
-

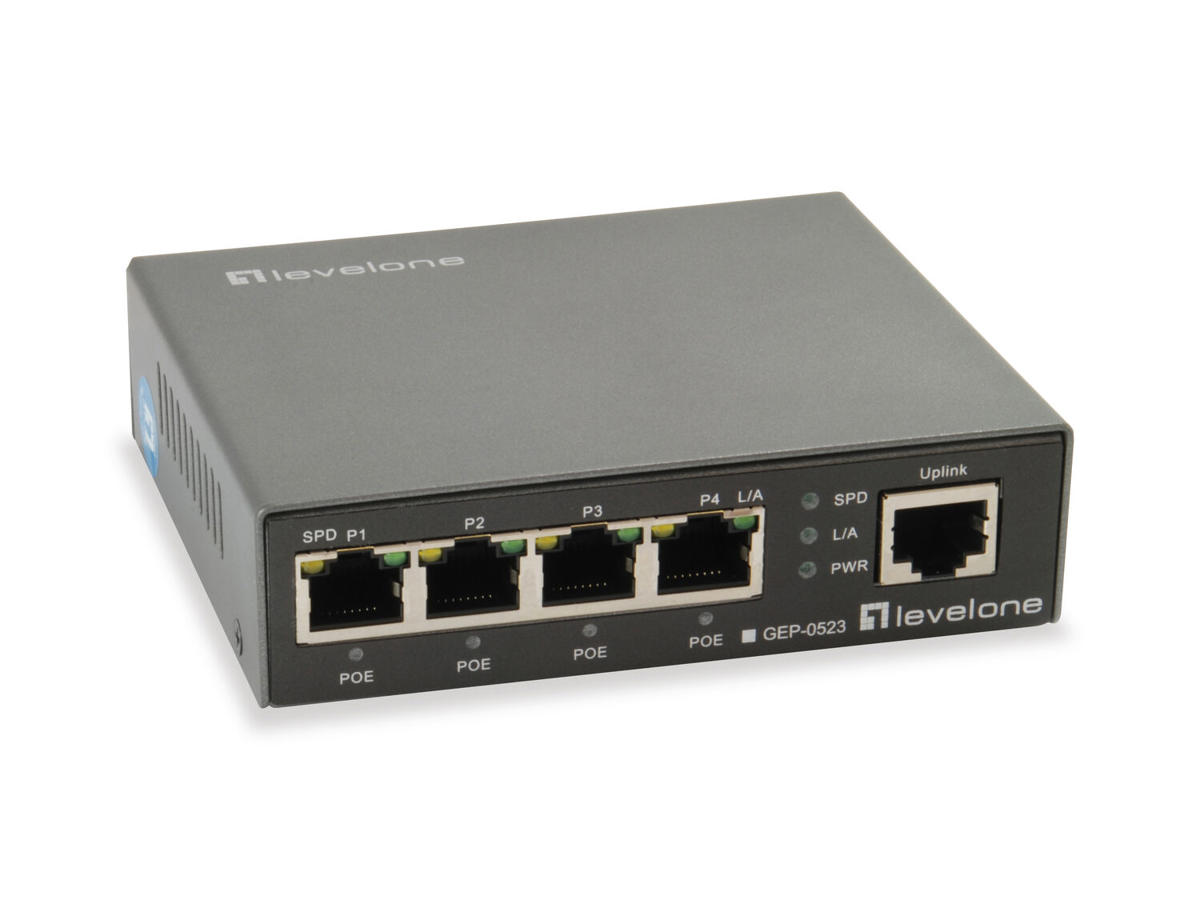

The LevelOne GEP-0523 is a Gigabit Ethernet PoE switch with a total of 5 ports, one of which is available as uplink port and 4 ports for Power over Ethernet. Per PoE port a power supply of up to 30W is possible. The total PoE power budget is 60W. It is an ideal solution when office and home users use a combination of PoE and non-PoE devices.
The GEP-0523\'s four PoE-enabled ports make it the ideal solution for office users using PoE-enabled devices in the workplace. This can include a mix of PoE IP phones, PoE Wifi APs and PoE IP cams. It is the perfect solution for offices that want to upgrade their office equipment and LAN infrastructure to PoE capability or upgrade with Gigabit performance. The switch automatically detects the connected IEEE 802.3at/af standard device and provides these devices with power and data over a single cable.
In addition, the GEP-0523 enables users to provide a stable and reliable high-speed LAN environment with store-and-forward switching architecture, packet error filtering and blockage-free packet forwarding. The 802.3x flow control mechanisms operate in both full and half duplex modes. This device supports the N-Way Auto Negotiation protocol, which automatically detects network speed and duplex mode.
For instant fault detection, the GEP-0523 is equipped with a full range of LEDs to help monitor and troubleshoot the network. -
Administrationsfunktioner Trafik klassificering Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Netværk Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Dataoverførsel MAC adresselabel 8000 entries Opbevar-og-frem Ja Maksimal dataoverførselshastighed 1000 Gbit/sek. Jumbo Frames support Ja Jumbo rammer 9126 Pakke bufferlager 1 MB Design Stativ-montering Ingen Produktfarve Sort Præstation Gennemsnitstid mellem fejl (MTBF) 30000 t Strømstyring Strømforsyning inkluderet Ja DC indgangsspænding 52 - 57 V Indgangsstrøm 1.25 A Strømforbrug (typisk) 5 W Strømbeskyttelsesfunktioner Overstrøm, Kortslutning Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) porte, antal 4 Total Power over Ethernet (PoE) 60 W Driftsbetingelser Driftstemperatur (T-T) -20 - 70 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Vægt & størrelser Bredde 96 mm Dybde 30 mm Højde 111 mm Vægt 350 g Emballage indhold Hurtig start guide Ja Emballeringsdata AC-adapter inkluderet Ja Pakkebredde 190 mm Pakkedybde 55 mm Pakkehøjde 230 mm Pakkevægt 750 g Godkendelser Certificering CE,FCC Logistik data Harmoniseret systemkode (HS) 85176990
