Varenummer: FEP-0812
Mere information
-

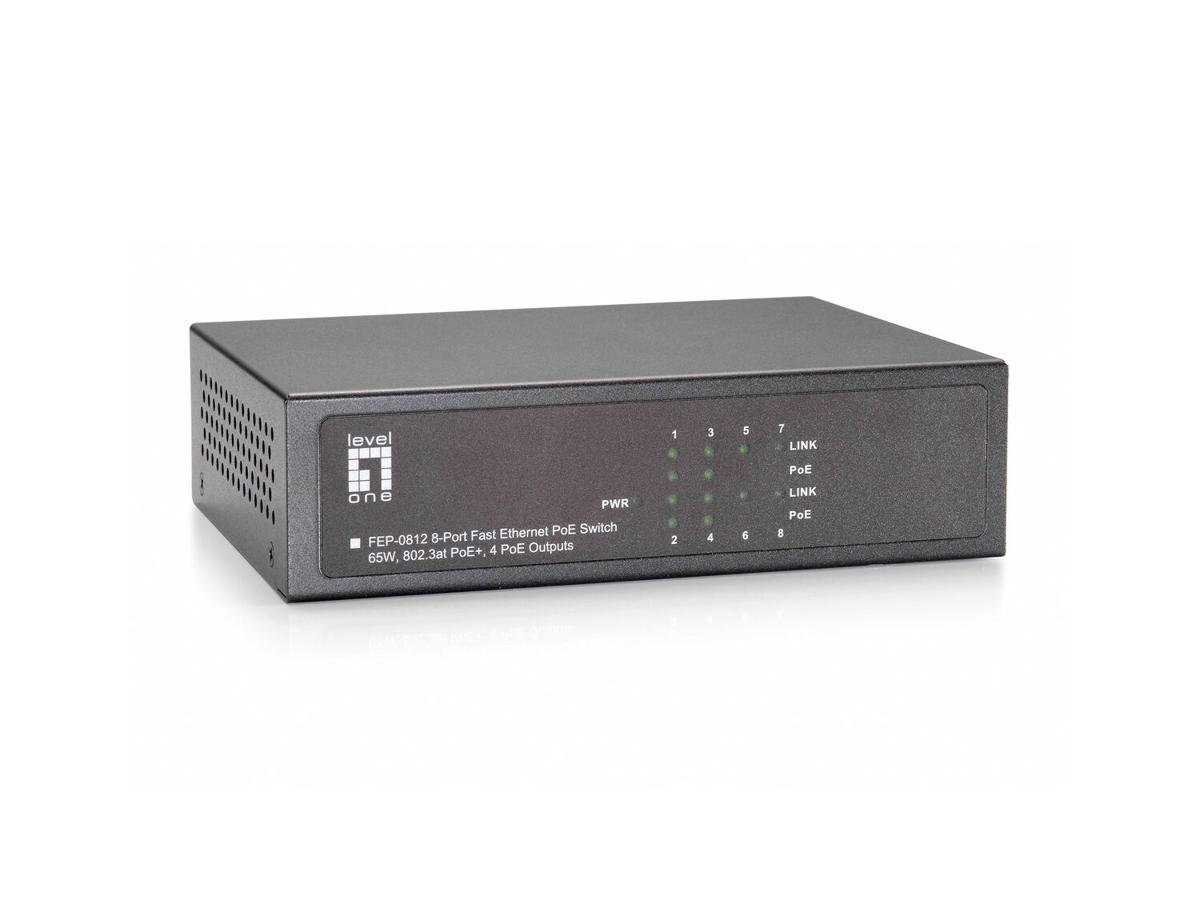

The FEP-0812 is a 8-port 10M/100M Fast Ethernet Switch with one uplink port plus 4 ports of Power over Ethernet capability. Per PoE port is power supply up to 30W. The total PoE power budget is 65W. It is an ideal solution where office and home users utilize a combination of PoE and non-PoE enabled devices.
Four ports on the FEP-0812 are PoE enabled making it an ideal solution for most office users that have PoE enabled devices located around the office. These products can include a mixture of PoE IP Phones, PoE wifi APs and PoE IP Cam. It is the perfect answer for offices that are upgrading their office equipment and LAN infrastructure to include PoE capability. The switch automatically detects IEEE 802.3at/af compliant device connected and provides power and data over a single cable to these devices.
The FEP-0812 enables users to deploy a stable and reliable high-speed LAN environment, with store-and-forward switching architecture, packet error filtering and non-blocking packet forwarding. The 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes. This device supports N-way auto-negotiation protocol that automatically detects networking speed and duplex modes.
For instant error detection, the FEP-0812 is equipped with a full range of LEDs to help monitor and troubleshoot problems on the network.
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Total PoE power budget: 65W, up to 30W per port
- Internal power supply -
Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Fast Ethernet (10/100) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Netværk Netværksstandarder IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX Fuld duplex Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja Dataoverførsel MAC adresselabel 1024 entries Switch kapacitet 1,6 Gbit/sek. Hastighed for videresendelse 0,1488 Mpps Opbevar-og-frem Ja Pakke videresendelsesrate (100 Mbps) 148000 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Multicast funktioner MAC-adresse tabel (multicast) 1000 entries Design Stativ-montering Ja Stabelbar Ingen Produktfarve Sort Husmateriale Metal LED-indikatorer Aktivitet, LAN, PoE, Strøm Præstation Bufferstørrelse 64 KB Plug and play Ja Strømstyring Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (typisk) 65 W Strømbeskyttelsesfunktioner Overstrøm, Kortslutning Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 4 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 65 W Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 122 mm Dybde 44 mm Højde 160 mm Vægt 800 g Emballage indhold Kabler inkluderet Vekselstrøm Hurtig start guide Ja Emballeringsdata Pakketype Kasse Pakkebredde 145 mm Pakkedybde 80 mm Pakkehøjde 235 mm Pakkevægt 1,1 kg Godkendelser Certificering FCC, CE, RoHS Logistik data Oprindelsesland Kina Harmoniseret systemkode (HS) 85176990
