Varenummer: GEU-2431
Mere information
-
Gigabit Speeds: Take Your Data to the Next Level

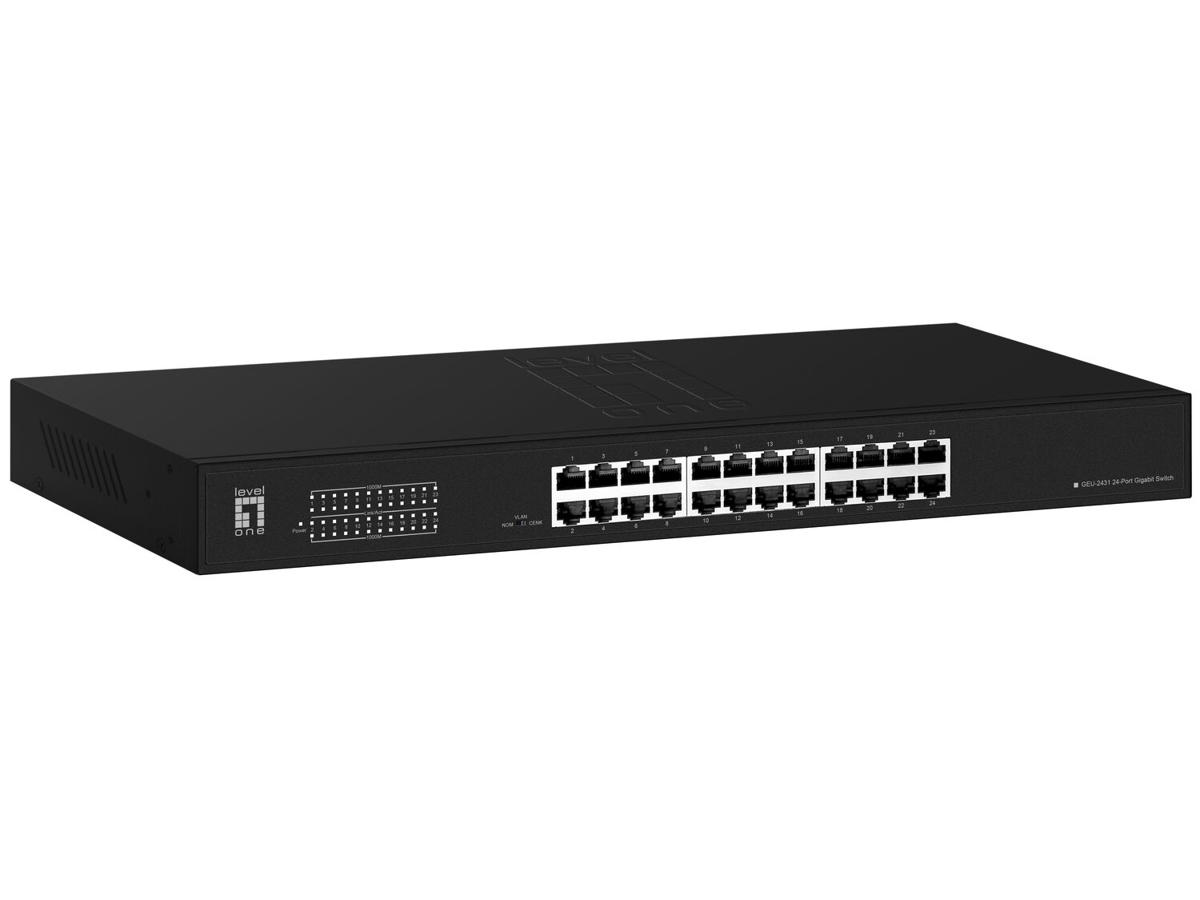

GEU-2431 is a 24-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 48Gbps and bring lightning fast Gigabit connections to all your computers.
Bandwidth hungry? Not a problem.
What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GEU-2431 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.
Plug and Play, Flexible and Easy
GEU-2431 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 24 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 24 Strømstik AC-in jack Netværk Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Fuld duplex Ja Halv dupleks Ja Auto MDI/MDI-X Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Auto-forhandling Ja Dataoverførsel MAC adresselabel 8000 entries Jumbo Frames support Ja Jumbo rammer 9000 Design Stativ-montering Ja Stabelbar Ingen Formfaktor 1U Produktfarve Sort LED-indikatorer Ja Præstation Indbygget processer Ja Processorfrekvens 500 MHz Intern hukommelse 4,1 MB Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Indgangsstrøm 1 A Strømforbrug (typisk) 25 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) -10 - 55 °C Opbevaringstemperatur (T-T) -40 - 75 °C Relativ luftfugtighed ved drift (H-H) 5 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Vægt & størrelser Bredde 438 mm Dybde 140 mm Højde 45 mm Vægt 1,62 kg Emballage indhold Kabler inkluderet Vekselstrøm Hurtig start guide Ja Rack monteringskit Ja Emballeringsdata Pakketype Kasse Pakkebredde 218 mm Pakkedybde 497 mm Pakkehøjde 93 mm Pakkevægt 2,22 kg Godkendelser Certificering CE, RoHS Logistik data Oprindelsesland Kina Harmoniseret systemkode (HS) 85176990
