Varenummer: GEP-1011
Mere information
-

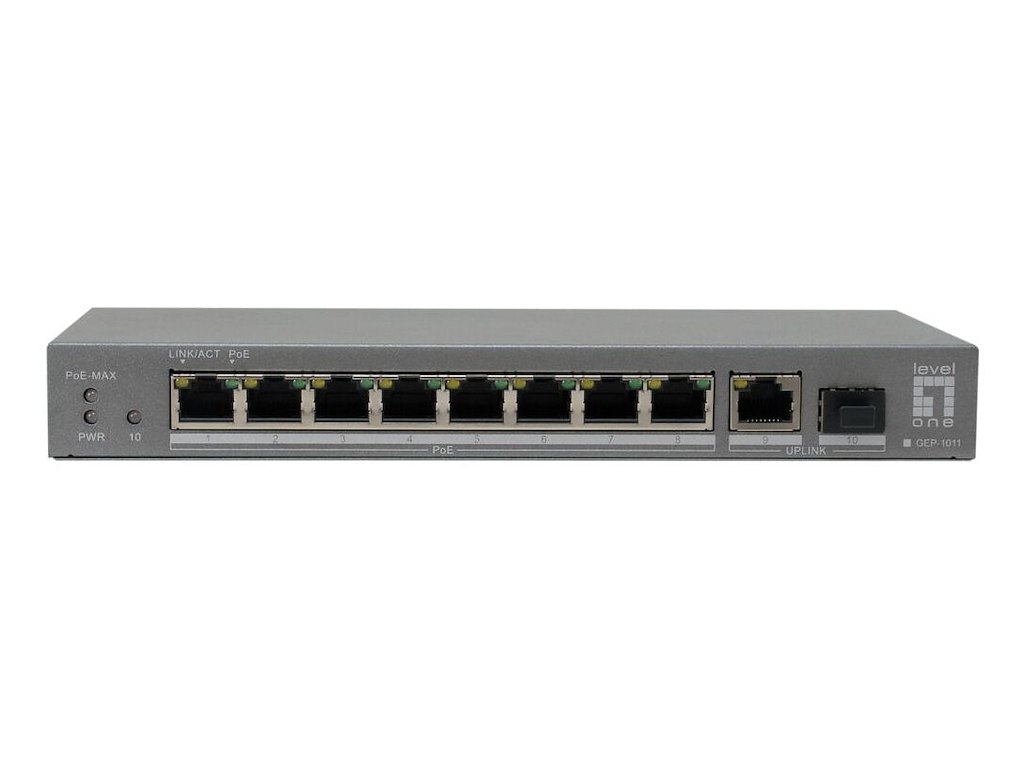

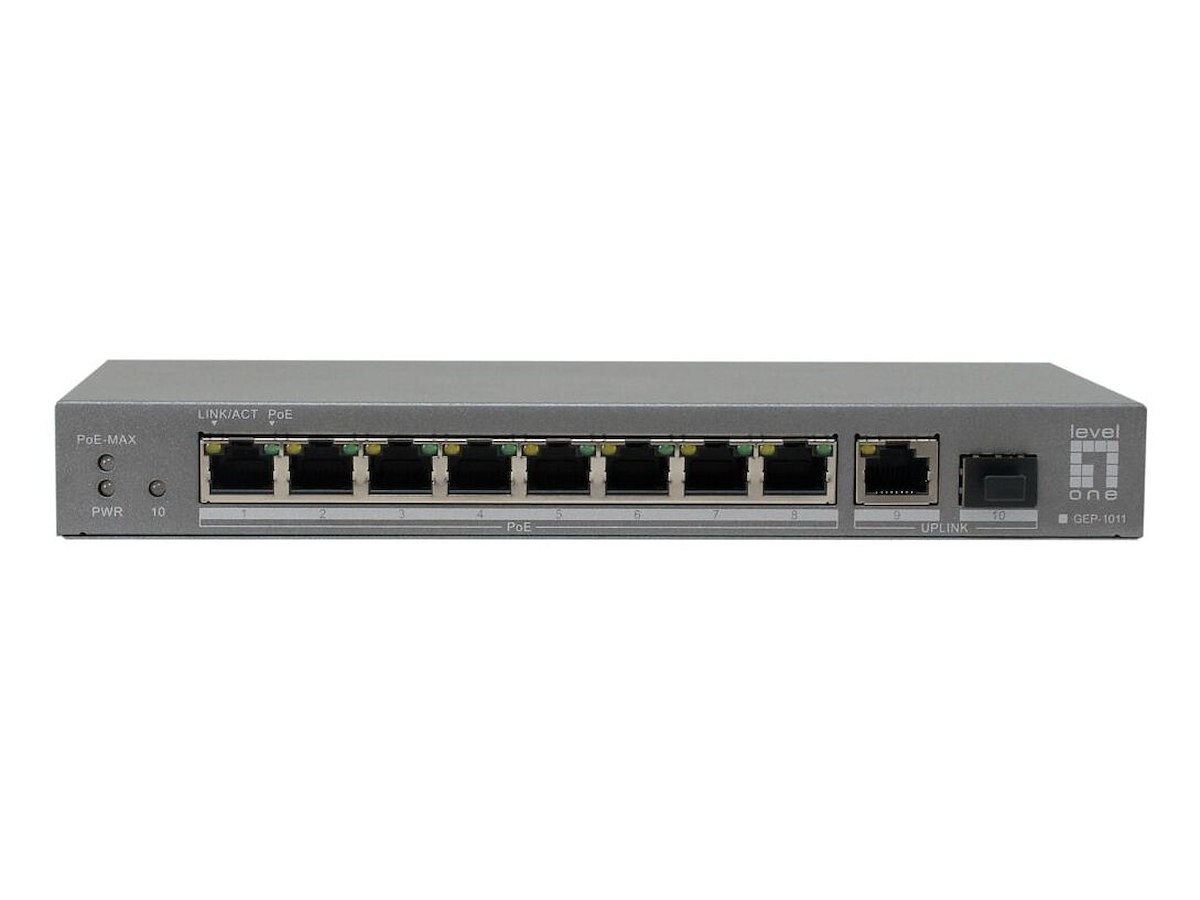

The LevelOne GEP-1011 is a 10-port Gigabit PoE switch designed for small and medium business networks that need to power and connect IP cameras, wireless access points and VoIP phones over a single Ethernet cable. It provides 8 PoE-capable 10/100/1000Base-T ports, 1 additional Gigabit RJ45 uplink and 1 Gigabit SFP uplink for flexible connectivity to core switches or fiber backbones.
Compliant with IEEE 802.3af/at, the GEP-1011 delivers a total PoE power budget of 120W, supplying up to 30W per PoE port to compatible devices. Built-in PoE detection and overload protection help ensure safe power delivery, automatically identifying powered devices and cutting power to ports that exceed the budget or are not PoE compliant. This reduces the need for separate power supplies and makes it easier to deploy devices in ceilings, corridors, or remote corners where power outlets are limited.
The combination of one Gigabit copper uplink and one 1000Base-X SFP uplink port gives administrators the freedom to connect using either twisted-pair cabling or fiber, depending on distance and infrastructure. This makes the GEP-1011 suitable as an edge PoE switch in larger networks or as a compact aggregation point for IP surveillance and wireless coverage in branch offices.
With 6KV surge protection and wall-mount support, the GEP-1011 is designed for reliable operation in real-world environments where electrical interference and space constraints are common. Its plug-and-play design requires no software configuration, allowing fast, cost-effective upgrades to a PoE-enabled Gigabit network. -
Administrationsfunktioner Switch-type Ikke administreret Switch lag L2 Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 9 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP modulslots 1 Antal uplink-porte 1 Antal fiber uplink-porte 1 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3z 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-SX, 1000BASE-LX Fuld duplex Ja Auto MDI/MDI-X Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Auto-forhandling Ja Dataoverførsel MAC adresselabel 4000 entries Switch kapacitet 20 Gbit/sek. Hastighed for videresendelse 14,88 Mpps Pakke bufferlager 0,1875 MB Design Stativ-montering Ingen Stabelbar Ingen Formfaktor Bord-/vægmontering Produktfarve Grå LED-indikatorer Link, PoE, ACT, Strøm Kan monteres på væggen Ja Markedssegment Forretning Præstation Plug and play Ja Ventilatorfri Ja Strømstyring Strømkilde DC Strømforsyning inkluderet Ja DC indgangsspænding 54 V Indgangsstrøm 2.22 A Strømforbrug (typisk) 10 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) -type understøttet PoE+ Power over Ethernet plus (PoE+) porte, antal 8 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 120 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -45 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Vægt & størrelser Bredde 217,6 mm Dybde 27,8 mm Højde 108,5 mm Vægt 600 g Emballage indhold Kabler inkluderet Strøm Hurtig start guide Ja Godkendelser Compliance-certifikater CE, Federal Communications Commission (FCC), UL Logistik data Toldproduktkode (TARIC) 846359 Oprindelsesland Kina Harmoniseret systemkode (HS) 846359
