Varenummer: IES-0610
Mere information
-

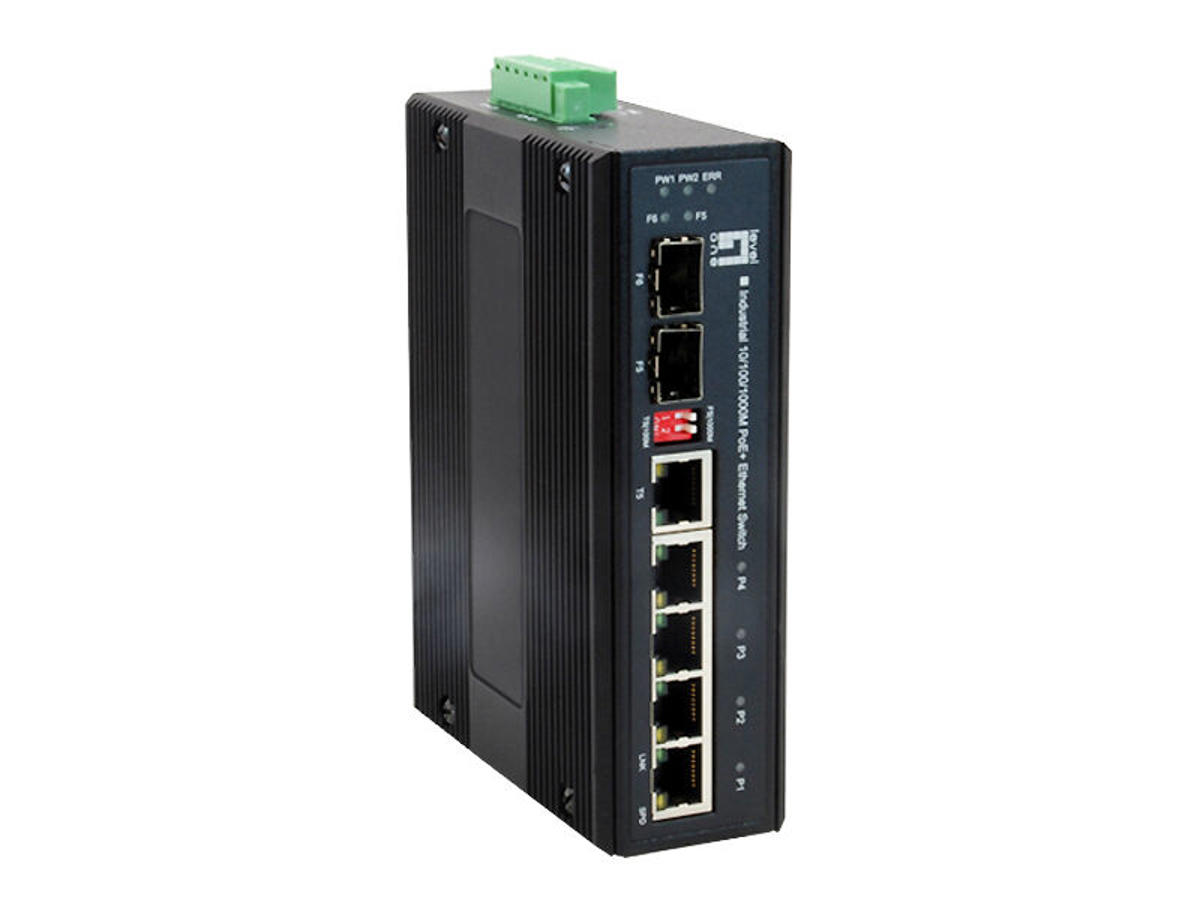

LevelOne IES-0610 Industry Ethernet Switch provides 4 PoE ports 10/100/1000Base plus 2 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.
- 4 10/100/1000Base-T PoE ports
- 1 Gigabit Combo + 1 Gigabit SFP(100/1G) slot
- PoE ports can support the IEEE 802.3at standard and power up 30W
- 1000 Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex,
- Auto-Negotiation, Auto-MDI/MDIX
- 40°C to 75°C (-40°F to 167°F) operating temperature range
- DIN-Rail mount installation
- Metal case design and compliant with IP30 standard
- Input power 48VDC -
Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 4 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Kombo SFP porte, antal 1 Antal SFP modulslots 1 Netværk Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G understøttelse Ingen Fuld duplex Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja Dataoverførsel MAC adresselabel 1024 entries Switch kapacitet 12 Gbit/sek. Opbevar-og-frem Ja Jumbo rammer 10000 Pakke videresendelsesrate (1 Gbps) 148800 pps Pakke videresendelsesrate (100 Mbps) 148000 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Pakke bufferlager 1 MB Design Produktfarve Sort LED-indikatorer Aktivitet, Link, Strøm Kan monteres på væggen Ja DIN-skinne montering Ja Strømstyring Indgangsspænding 48 - 55 V Strømforbrug (typisk) 6 W Strømbeskyttelsesfunktioner Overbelastning, Omvendt polaritet Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 4 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 126 W Andre funktioner Klemrække port Ja Driftsbetingelser Driftstemperatur (T-T) -40 - 75 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Vægt & størrelser Bredde 40 mm Dybde 105 mm Højde 38 mm Vægt 720 g Emballage indhold Hurtig start guide Ja Emballeringsdata Pakketype Kasse Pakkebredde 215 mm Pakkedybde 165 mm Pakkehøjde 65 mm Pakkevægt 120 g Godkendelser Certificering FCC Part 15 Subpart B Class A CE EN 55022 Class A EN61000-4-2 (ESD) Level 3 EN61000-4-3 (RS) Level 3 EN61000-4-4 (EFT) Level 3 EN61000-4-5 (Surge) Level 3 EN61000-4-6 (CS) Level 3 EN61000-4-8 (Magnetic Field) Level 3 UL508 (Pending) EN 50121-4 (Pending) IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6 UL 508 Logistik data Oprindelsesland Taiwan Harmoniseret systemkode (HS) 85176990
