Varenummer: GTU-5211
Mere information
-
Gigabit Speeds: Take Your Data to the Next Level

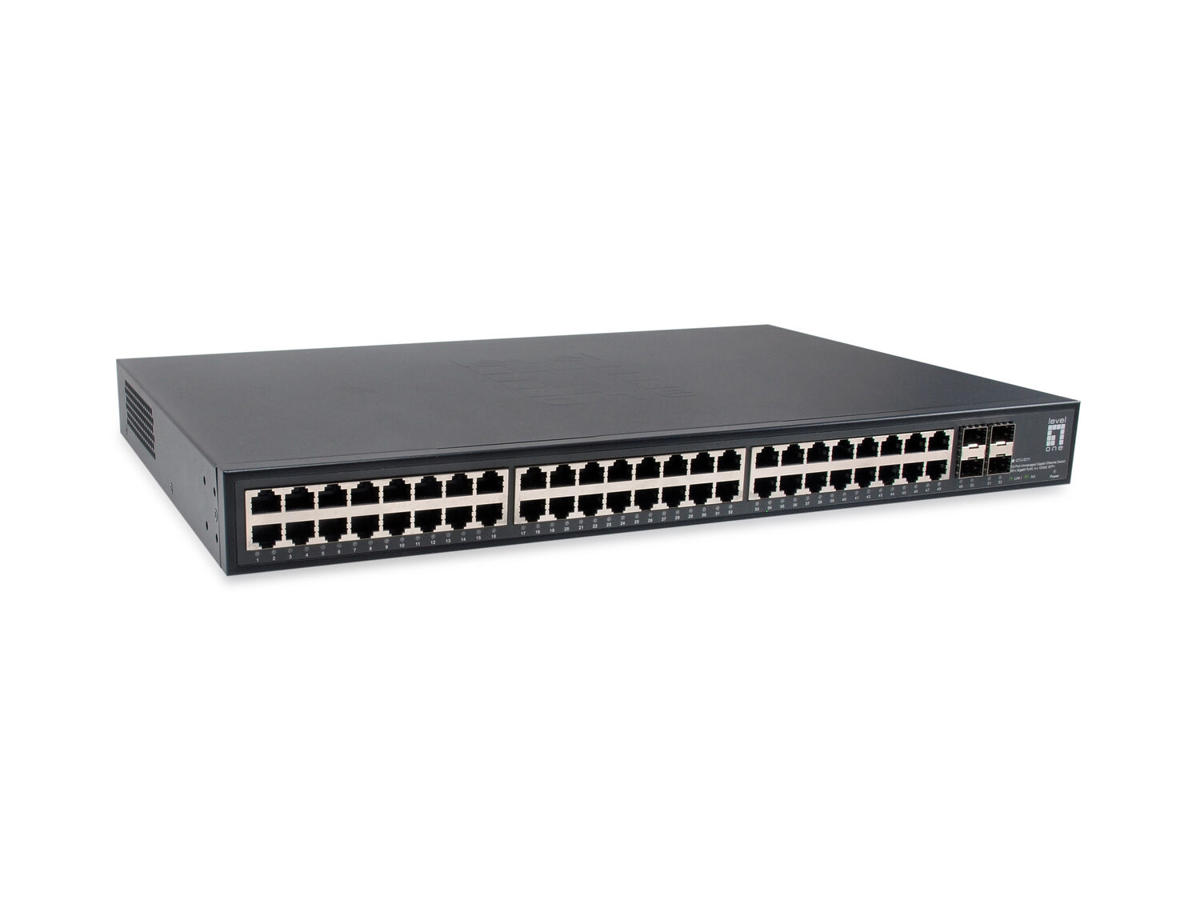

The GTU-5211 is a 52-port Gigabit Ethernet Switch that gives you a high-performance, low-cost, easy-to-use, seamless upgrade to boost your network to 1000Mbps. Increase the speed of your network backbone to a massive 176Gbps and bring Gigabit speeds all the way to your computers.
Bandwidth hungry? Not a problem.
What happens when you have several users accessing multimedia applications all at the same time? No need to worry as GTU-5211 allows you to move large files faster and easier. Transfer your CGI, CAD, video, or other large multimedia files over the network instantly and without lag.
Plug and Play, Flexible and Easy
The GTU-5211 is plug-and-play so no configuration is required. Providing auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cables or Uplink ports. Each port can be used as general ports or Uplink ports, and any port can be simply plugged into a server, a hub, a router or a switch, using a straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allowing you to quickly detect and correct problems on the network. -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 4 Gigabit Ethernet (kobber) porte, antal 48 Strømstik AC-in jack Netværk Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G understøttelse Ja Fuld duplex Ja Flowkontrol support Ja Auto MDI/MDI-X Ja MAC-adresse auto-indlæring understøttet Ja MAC-adresse auto-forældelse understøttet Ja Dataoverførsel MAC adresselabel 32000 entries Switch kapacitet 176 Gbit/sek. Jumbo Frames support Ja Jumbo rammer 10000 Pakke bufferlager 16 MB Design Stativ-montering Ja Stabelbar Ingen Produktfarve Sort LED-indikatorer Aktivitet, Link, Strøm Præstation Intern hukommelse 256 MB Flashhukommelse 16 MB Støjniveau 30 dB Ventilatorfri Ingen Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Strømforbrug (typisk) 48 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Varmeafgivelse 163,8 BUT/t Vægt & størrelser Bredde 440 mm Dybde 290 mm Højde 44,5 mm Vægt 3,39 kg Emballage indhold Kabler inkluderet Vekselstrøm Hurtig start guide Ja Rack monteringskit Ja Emballeringsdata Pakketype Kasse Pakkebredde 515 mm Pakkedybde 380 mm Pakkehøjde 93 mm Pakkevægt 4 kg Godkendelser Certificering CE, UKCA, FCC Part 15, Subpart B Class B, RoHS
