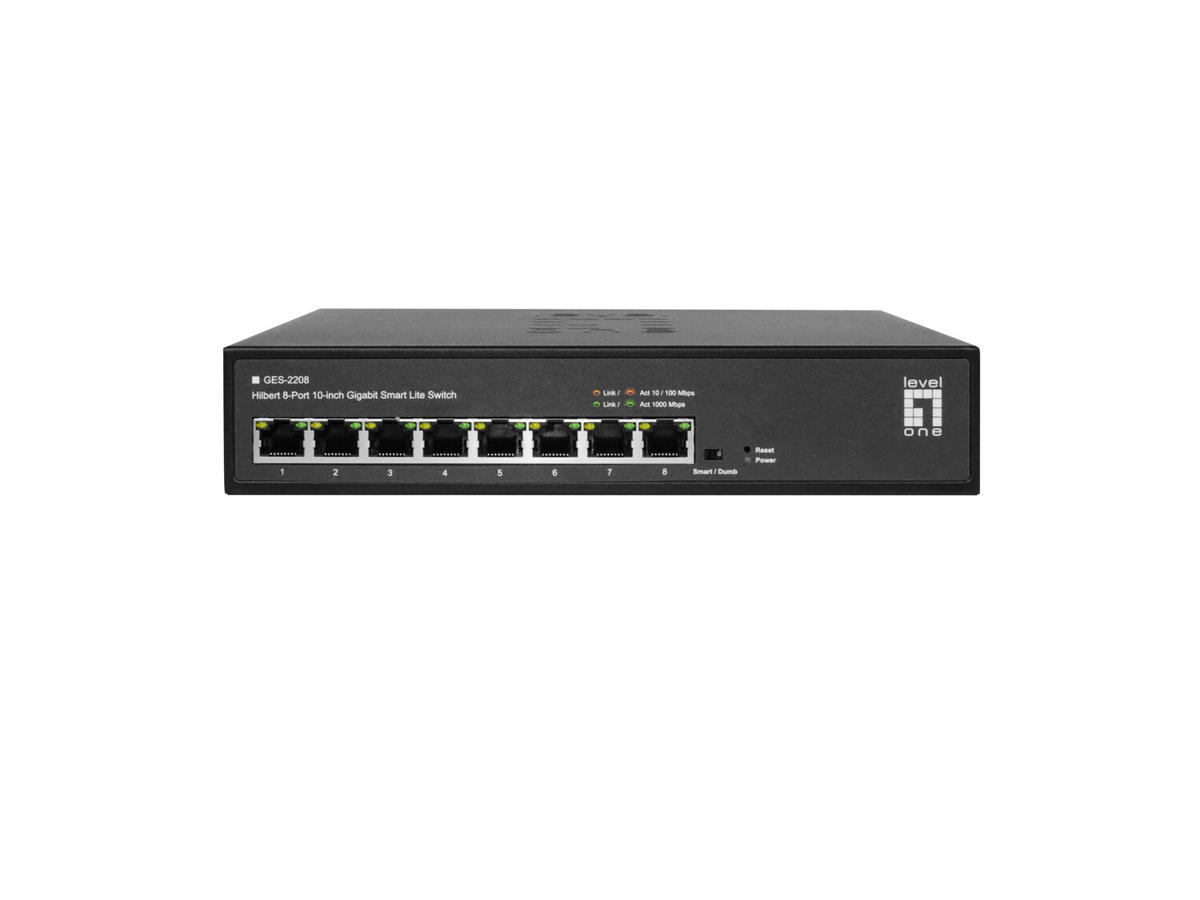

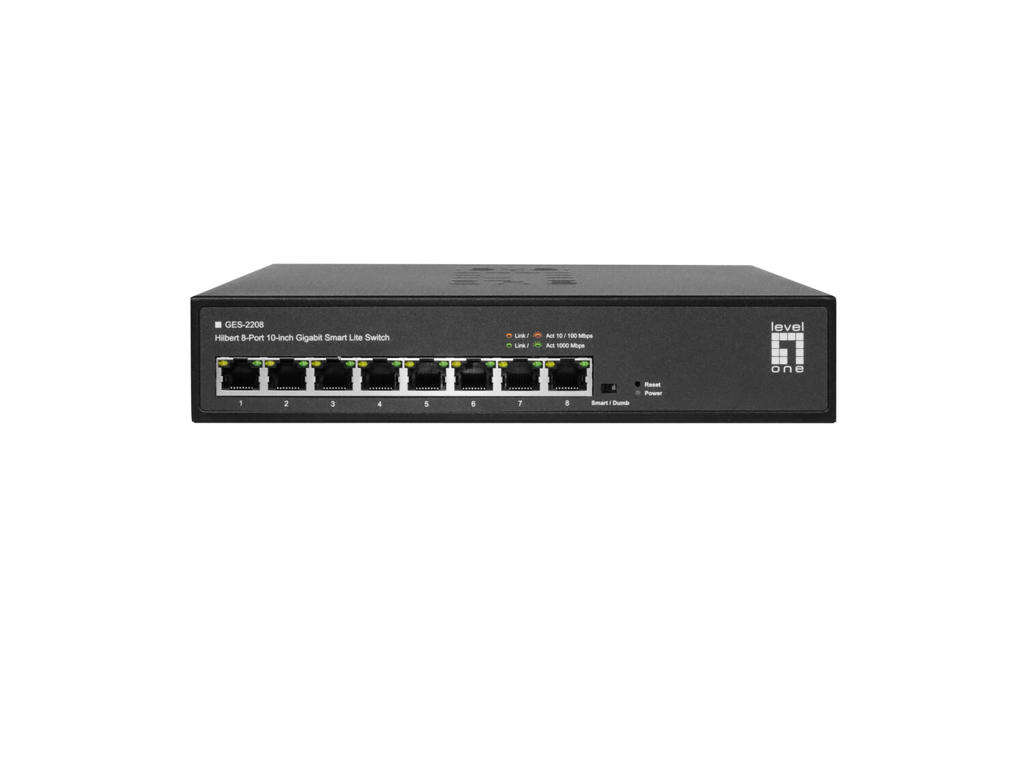

LevelOne Hilbert 10” 8-Port Gigabit Smart Lite Switch, 8 x Gigabit RJ45 (10/100/1000)
Varenummer: GES-2208
Mere information
-
If you're in search of a networking solution that fits your 10-inch rack/enclosure, the LevelOne GES-2208 Hilbert gigabit smart lite switch is an excellent option. This next-generation Ethernet switch delivers better functionality and usability, making it cost-effective for businesses and organizations.
The switch offers 8 (10M/100M/1G) RJ45 ports and is compatible with the latest LevelOne IP Locator, the easiest-to-use switch discovery tool, which can search all Hilbert series switches and instantly know forgotten IP and other info. Additionally, it's compatible with mainstream Windows and Mac operating systems.
With both dumb and smart Switchable usage modes, the switch is easily configurable using a DIP switch. It provides high-speed connectivity for all your devices, with 8 Gigabit ports. The support for 802.1q VLAN allows you to segment your network for enhanced security and performance.
The switch supports Port Mirroring, which allows you to monitor network traffic in real-time. Additionally, with Port-Based/802.1p/DSCP priority QoS and support for Storm Control, you can prioritize network traffic correctly and ensure that your network remains secure.
The advanced features like Loop Detection/Prevention make sure your network is always safe and reliable. Moreover, the web-based user interface and Smart-Configuration Utility make IP configuration a breeze. Upgrade your networking today with this powerful switch, and enjoy the ultimate performance, security, and ease of use. -
Administrationsfunktioner Switch-type Administreret Switch lag L2 Servicekvalitet support (QoS) Ja Webbaseret administration Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 8 Strømstik AC-in jack Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G understøttelse Ingen Port-spejlning Ja Fuld duplex Ja Halv dupleks Ja Link aggregering Ja Broadcast stormkontrol Ja Begrænsning af hastighed Ja Auto MDI/MDI-X Ja Auto-forhandling Ja MAC-adresse auto-indlæring understøttet Ja MAC-adresse auto-forældelse understøttet Ja VLAN understøttelse Ja Antal VLAN'er 32 Dataoverførsel MAC adresselabel 4000 entries Switch kapacitet 16 Gbit/sek. Hastighed for videresendelse 11,904 Mpps Jumbo Frames support Ja Jumbo rammer 9000 Pakke bufferlager 1,5 MB Sikkerhed IGMP snooping Ja Design Stativ-montering Ja Stabelbar Ingen Produktfarve Sort LED-indikatorer Aktivitet, Link, Strøm Præstation Flashhukommelse 2 MB Støjniveau 0 dB Ventilatorfri Ja Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Strømforbrug (typisk) 6 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Varmeafgivelse 20,4 BUT/t Vægt & størrelser Bredde 215 mm Dybde 150 mm Højde 44,5 mm Vægt 720 g Emballage indhold Kabler inkluderet Vekselstrøm Hurtig start guide Ja Rack monteringskit Ja Emballeringsdata Pakketype Kasse Pakkebredde 285 mm Pakkedybde 257 mm Pakkehøjde 62 mm Pakkevægt 1,19 kg Godkendelser Certificering CE, UKCA, FCC Part 15, Subpart B Class B, RoHS Logistik data Oprindelsesland Kina
