Varenummer: FSW-1650
Mere information
-
Product Overview
The FSW-1650 switch provides an ideal solution for small businesses that demand a reliable network switch that provides a high bandwidth interface between file servers and workgroups, departments and offices.
Advanced Networking Features

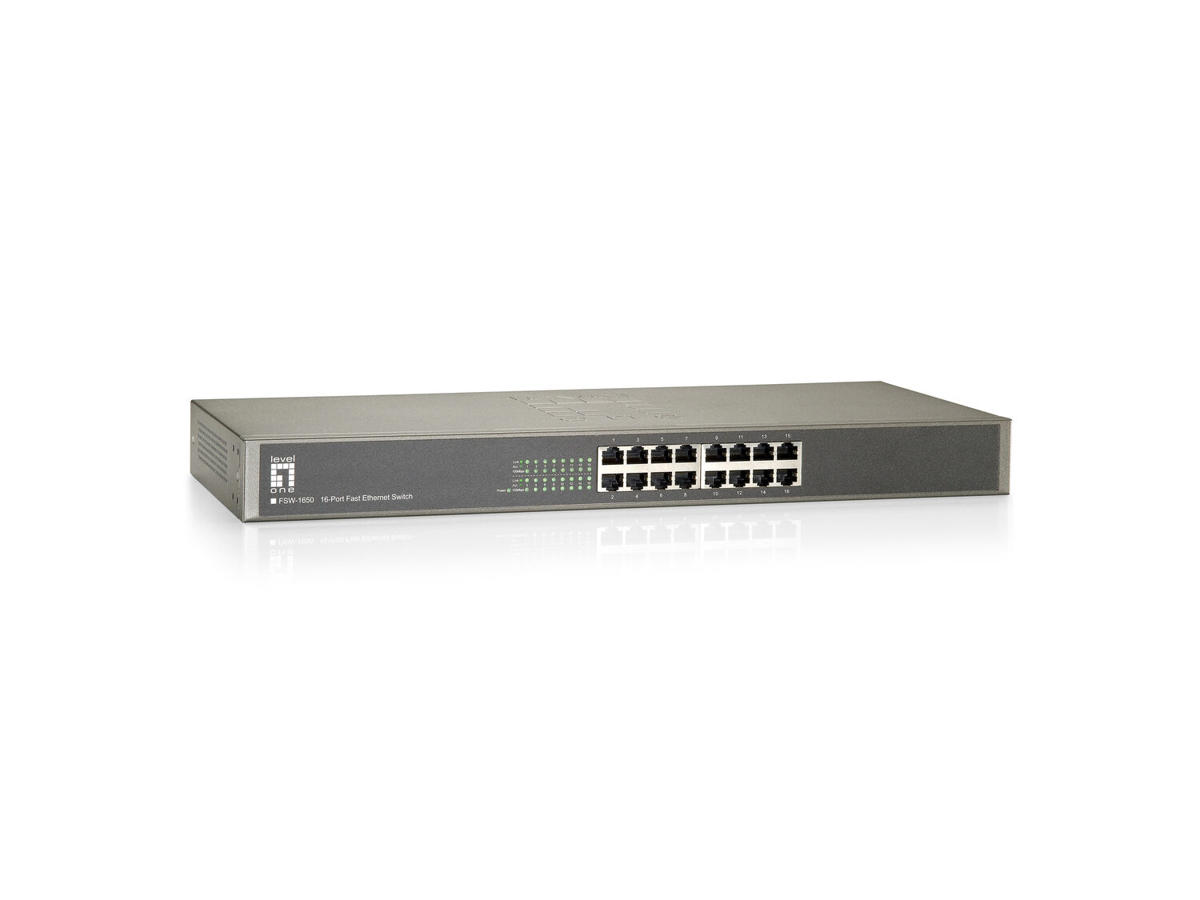

The LevelOne FSW-1650 is a wire-speed, nonblocking 16 port Fast Ethernet Unmanaged Switch with an internal power supply. It provides a network with an 8K MAC address table, 3.2Gbps backplane throughput, asymmetrical flow-control support for full-duplex network connectivity, auto-negotiation and Auto-MDIX.
The 16-port Fast Ethernet Switch utilizes packetstore- and forwarding switching for error-free data transmissions and IEEE802.3x backpressure flow control to control data flow between the sending and receiving nodes as well as to prevent any data packet loss.
Compact Design
The FSW-1650 is a compact designed network switch. Users can place the switch on any desktop area or mount it in a 19-inch server rack or cabinet by using the included rack-mounting accessory kit.
Quick Configuration and Easy Maintenance
The LevelOne FSW-1650 does not require any software configuration. It is Plug-and-Play enabled for quick set-up and immediate use within the Local Area Network. The 16 port Faster Ethernet Switch is equipped with a full range of LEDs for instant error detection, networking monitoring and network
troubleshooting.
- Provides flexibility of 16 x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 8K MAC address auto-learning and auto-aging
- QoS control for traffic prioritization and bandwidth management
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 19-inch metal housing
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az) -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 16 Basis omskiftning RJ-45 Ethernet porttype Fast Ethernet (10/100) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Netværk Netværksstandarder IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX Understøttede kabeltyper Cat5 Fuld duplex Ja Dataoverførsel MAC adresselabel 8192 entries Switch kapacitet 3,2 Gbit/sek. Opbevar-og-frem Ja Protokoller Udvekslingsprotokoller CSMA/CD Design Stativ-montering Ja Stabelbar Ingen Produktfarve Grå LED-indikatorer Aktivitet, LAN, Link, Strøm Præstation Bufferstørrelse 160 KB Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (typisk) 6,2 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Vægt & størrelser Bredde 44 mm Dybde 208 mm Højde 440 mm Vægt 2,6 kg Emballage indhold Kabler inkluderet Vekselstrøm Hurtig start guide Ja Emballeringsdata Monteringssæt til væggen Ja Pakkebredde 308 mm Pakkedybde 94 mm Pakkehøjde 550 mm Pakkevægt 2,7 kg Godkendelser Certificering CE RoHS Logistik data Oprindelsesland Kina Harmoniseret systemkode (HS) 85176990
